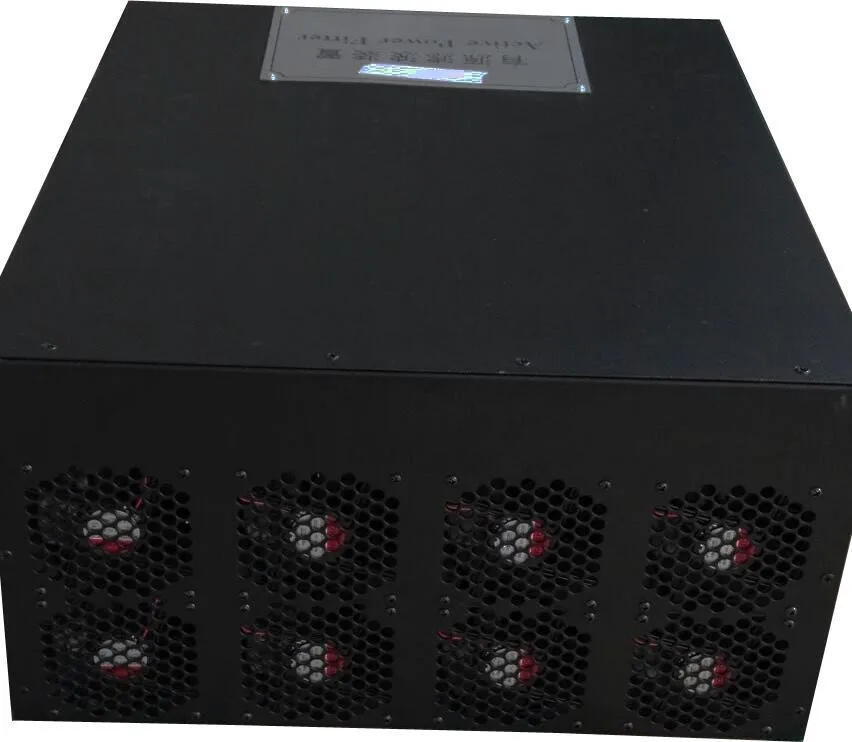

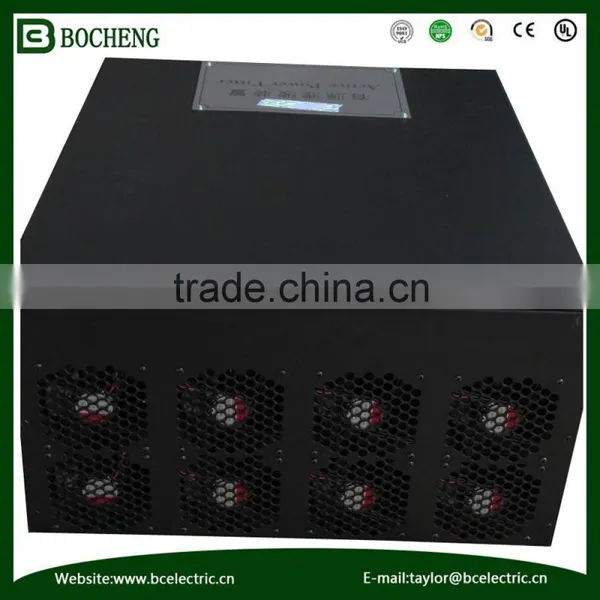

Active Harmonic Filter is an electronic device using logical circuit to observe and input current. It is composed of power supplied converter and connected in parallel with source of harmonics, implementing harmonic filtering, voltage fluctuation control, resonance restrain and improve power factor.

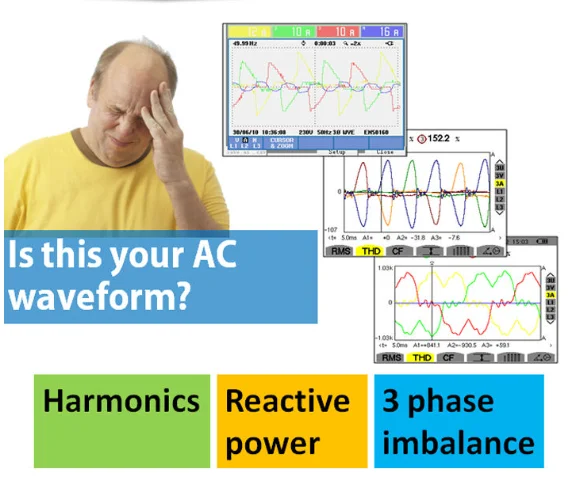

Poor power quality :
Poor power quality harm:

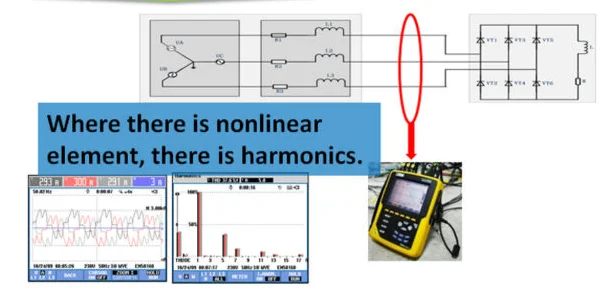

How harmonics generated ?

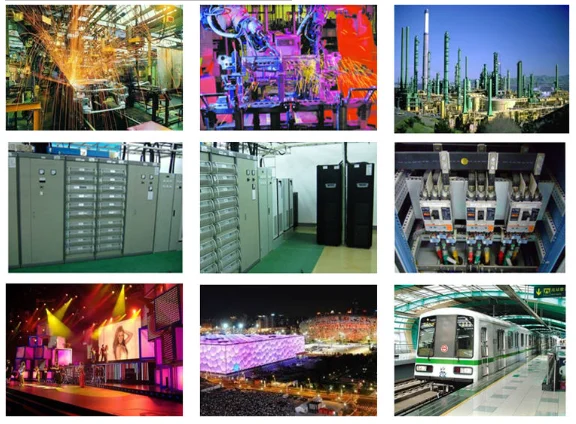

Main harmonics polluting industries:

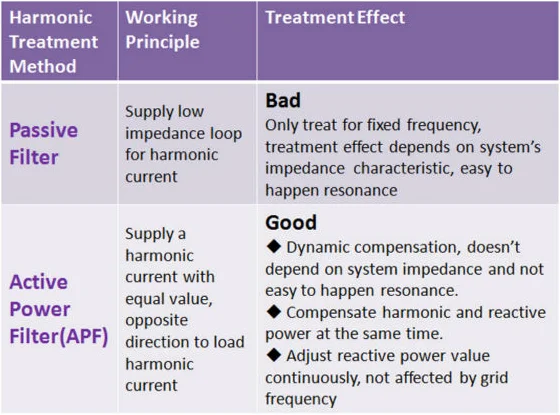

Harmonics treatment method:

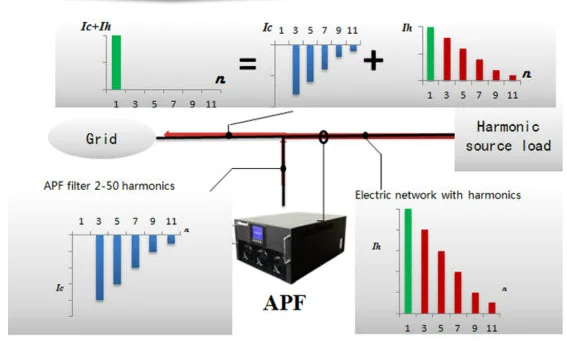

APF working principle:
APF economic benefit:

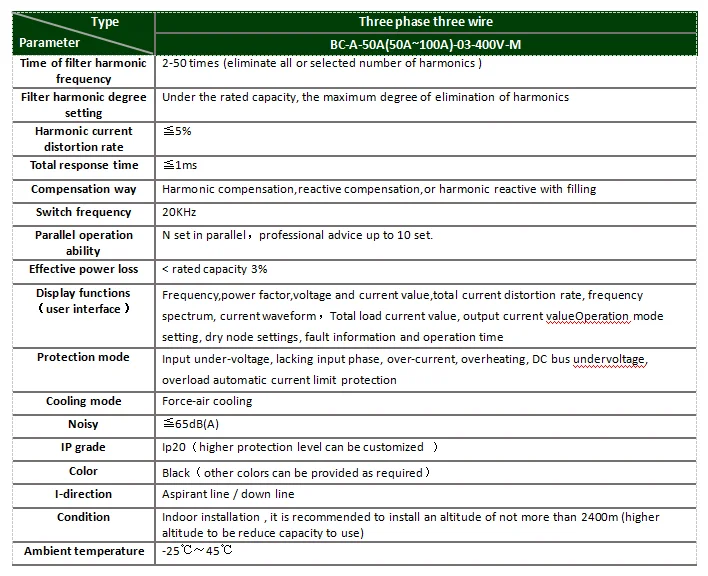

400V APF module main technical parameters :

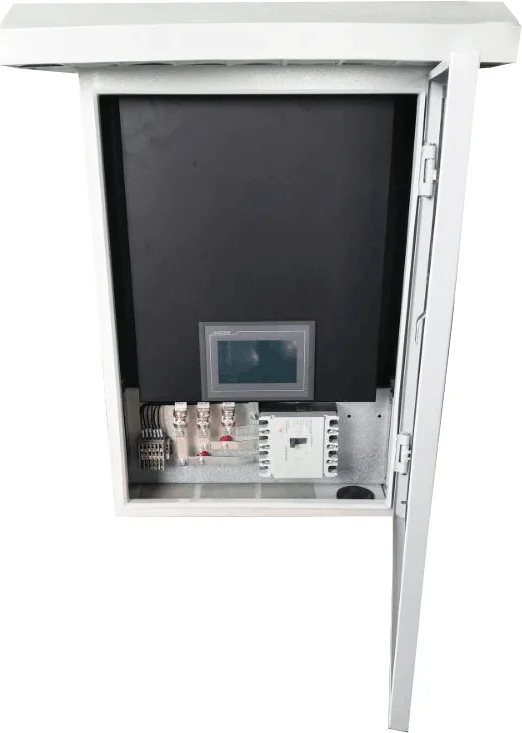

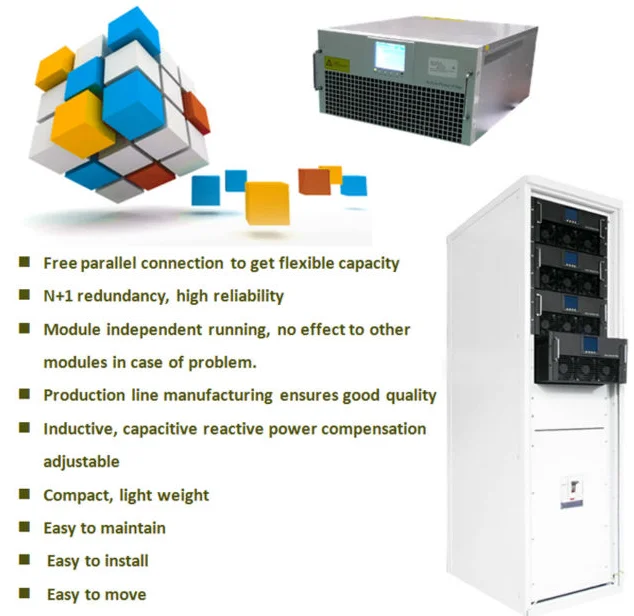

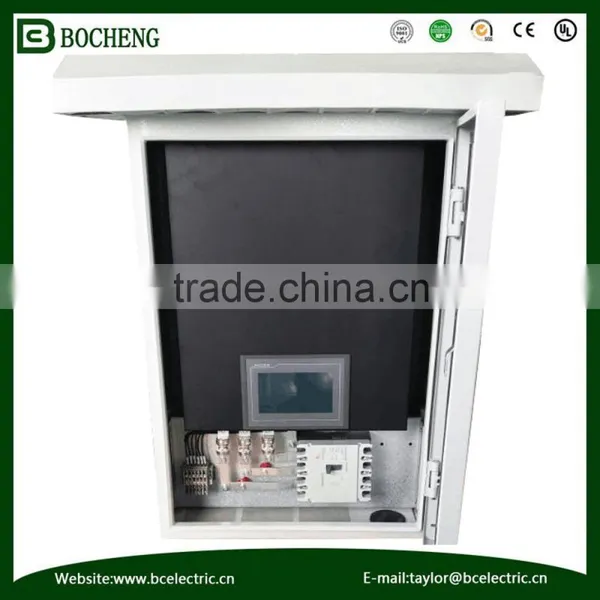

Selling points :modular design ,flexible installation .
Other APF features:
Have user-friendly operating software for easy operation.
•Could withstand load short circuit shock, and restart after removal of short circuit.
•Automatically eliminate resonance, not affected by electric network impedance and system impedance change.
•Could simultaneously filter 2-50 harmonics in three-phase four -line distribution system, and is able to choose compensation or not for each harmonic from 2-50 harmonics .
•The system has fast and complete fault self detection features, including undervoltage or overvoltage , overcurrent, fan failure , power devices over temperature , input fuse failure etc. fault self detection, all fault could be alarmed by APF and automatically taken corresponding actions.
•APF’s high-frequency carrier itself can not be feedback to electric network.
•Overcompensation must be avoided during filtering, i.e. APF could realize only filtering without generating reactive power to avoid over compensation completely, or by setting target power factor, the remaining energy after filtering is used for reactive power compensation.
•Have soft start control loop to avoid too large inrush current while starting and to limit the current within rated range.
•When the system is powered down, the filter could be automatically disconnected; After system recovery, the filter can be automatically restored.
•User could realize status monitoring and control setting through filter controller, including password lock, data measurement, control setting, event logging, status monitoring and alarm etc. functions.

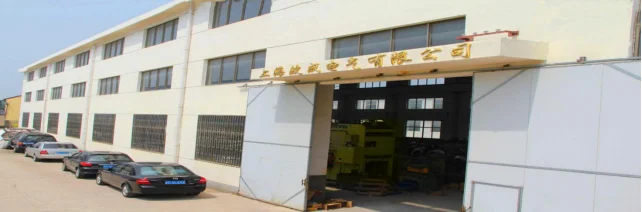

Factory

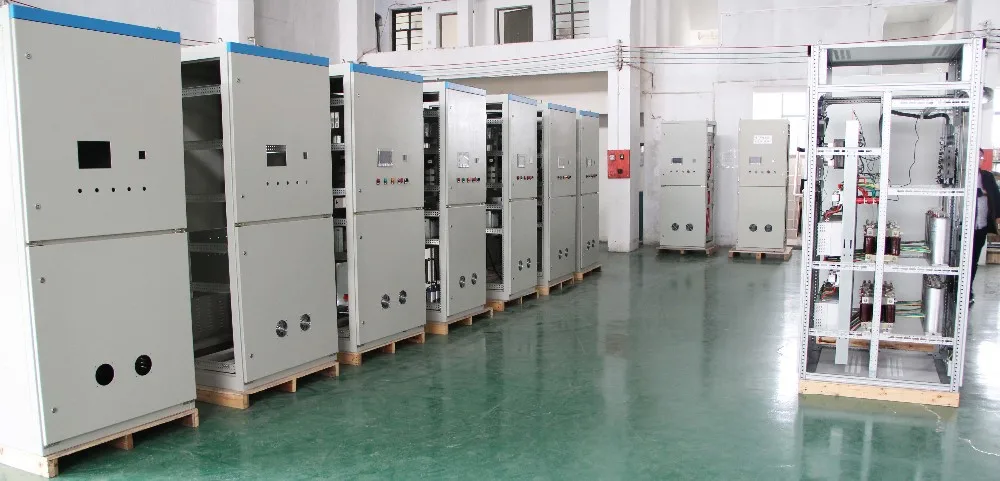

Workshop

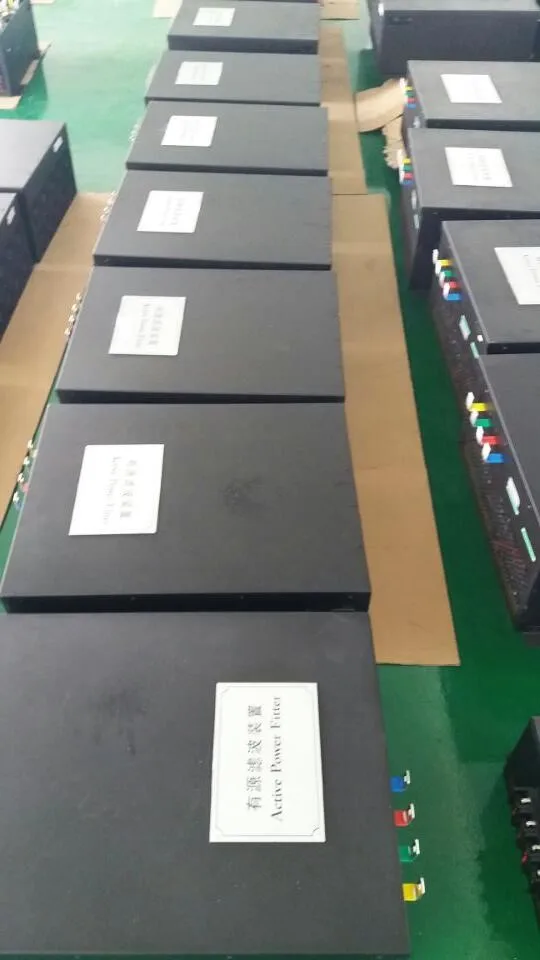

Our Workshop
Warehouse
Our Warehouse
Team
Our Team

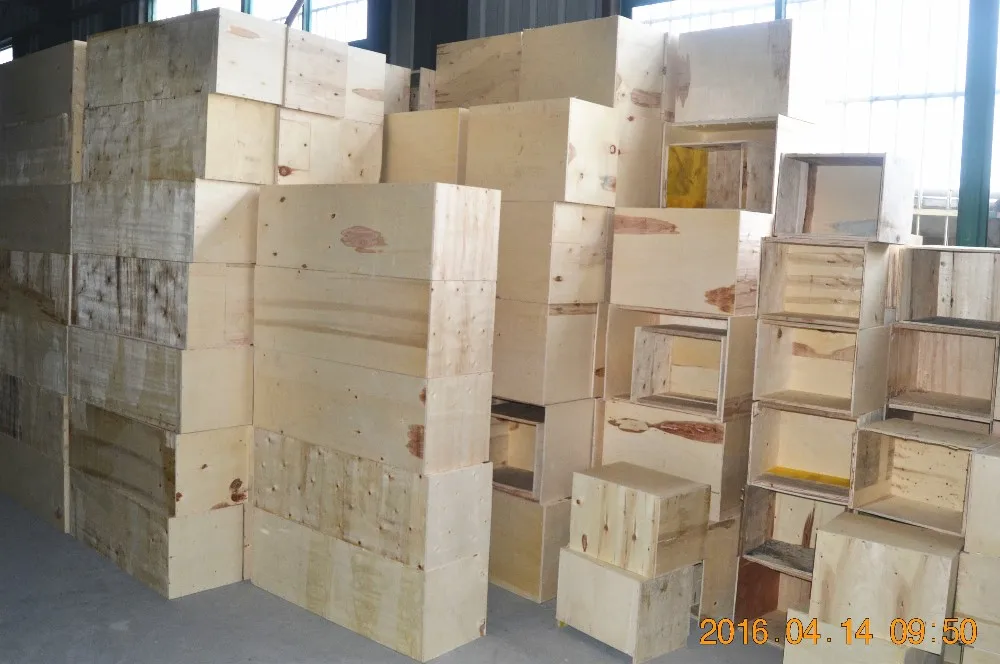

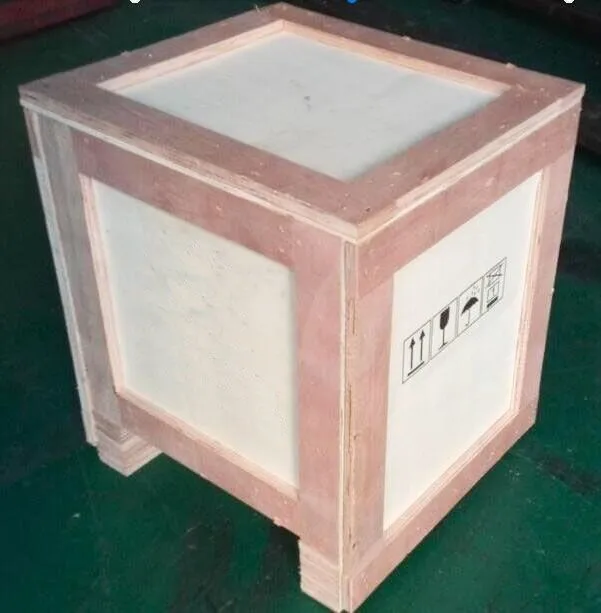

Packing Details : Wooden package for each Active Power Filter APF
Delivery Details : 3-30 days .
Our customer from India
Shanghai BoCheng electrical hardware factory is a big factory .I trust them .We are good business partner .
Our customer from Pakistan
Shanghai Bocheng electrical hardware factory is one of the most important supplier for me . They have best quality electric transformer with reasonable prices .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
