Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > LED Light Assembly Line/Production Line/ Candle Light Line

LED Light Assembly Line/Production Line/ Candle Light Line

Name: LED Light Assembly Line/Production Line/ Candle Light Line
Brand: Leady
SKU: 108411655
Availability: InStock

LED Light Assembly Line/Production Line/ Candle Light Line thumbnail-1

LED Light Assembly Line/Production Line/ Candle Light Line thumbnail-2

LED Light Assembly Line/Production Line/ Candle Light Line photo-1

LED Light Assembly Line/Production Line/ Candle Light Line photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Flat Conveyor

Material:

Other, PVC belt & Aluminum frame

Contact Supplier Request Quote Chat Now

Dongguan Leady Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Flat Conveyor

Material Other, PVC belt & Aluminum frame

Material Feature Other, anti-static & low stretch

Structure Belt Conveyor

Load Capacity 10-80 kgs per meter

Place of Origin Guangdong, China

Brand Name Leady

Model Number LD-MR16/GU10

Voltage 220V-6-380V

Power(W) 20KW-50KW

Dimension(L*W*H) 700*900*2000mm(L*W*H)

Certification ISO.CE

After-sales Service Provided Engineers available to service machinery overseas

Function:

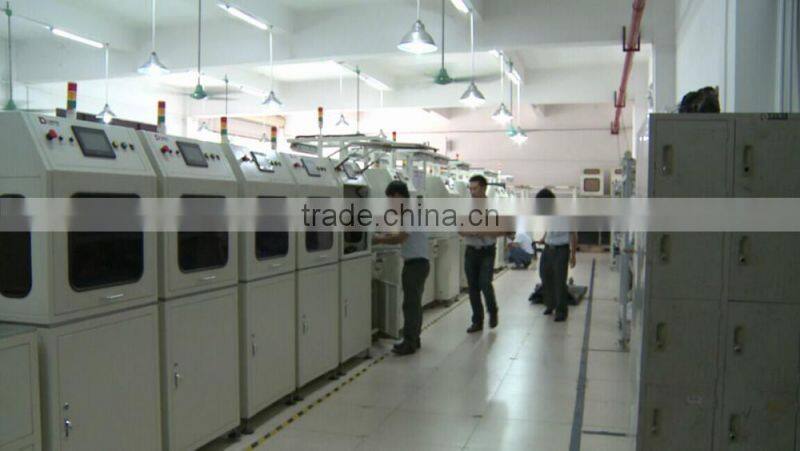

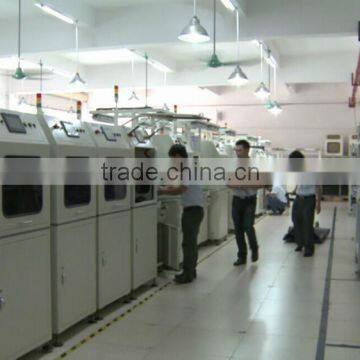

The assembly line is major for plastic cups, power board, heat cup, led plate, lamp lens. Including red punching, glue dispensing, thermal grease, screw locking, soldering, tunnel oven drying, high voltage test (bad products removed), FCT test, test, assembled bulb etc. work station. The device also has the advantages of high voltage test, FCT test data upload computer storage, production quantity counting, production data analysis. The whole line is controlled by industrial computer, through the TCP protocol, local area network for each site data collection and control.

Specifiction:

Outline Size :(L*W*H) 700*900*2000mm
:(X*Y*Z) 250*250*100mm
Diver Type :4axis servo motor
Coordinate Precision XYZ:±0.02mm
Positioning R Axis:±0.05°
Slide Guide: import side/screw rod
Control :PC control sys
Program:256 groups,400dot /groups
Voltage:220VAC,50HZ(tunnel oven 380VAC
Power:20KW--50KW (according to modules quantity
Air Pressure:0.6Mpa
Remark: line length according to customized module quantity

Cooperation company:

Our Company Information :

LEADYTECH is under Leady (HK) Group,located in OBO High Tech Park,Dongguan Nancheng District.Engaged in automation R&D,production. sales as one of high-tech enterprises.

Our wide range of high quality products include GU10/M16, bulb, TLED lamp manufacturing equipment, automatic assembly line, automatic aging test production line, etc..

Now become a leading enterprise in the contemporary intelligent automation manufacturing equipment after 10 years of automation equipment R&D. we are committed to effectively and efficiently serving the worldwide needs of our clients and exceeding their expectations in quality, price, service and speed.
