 CXF Type flexing equipments of railway bridges
     CXF type flexing equipments are designed by the Third Railway Survey and Design Institute. It is suitable for the simply supported beam and continuous beam of bridges on railway passenger special line. It can satisfy the requirements of beam end waterproof, water collection, drainage and expansion. Main part of the CXF type flexing equipments of railway bridges is manufactured by high strength and anticorrosion aluminum alloy material. It hpeas the characteristics
of simple structure, superior waterproof and drainage abilities, good expansion ability, convenient in installation, curing and maintenance, fine durability, comfort ability and reliability in application, and so on.
     CXF type flexing equipments of railway bridges include CXF-120 type and CXF – 200 type specifications. CXF-120 type flexing expansion equipments are suitable to simply supported beams and continuous beams of passenger special line with temperature span equal to or less than 80m, while CXF-200 type flexing equipments are suitable to continuous beams of passenger special line with temperature span large than 80m and equal to or less than 200m.

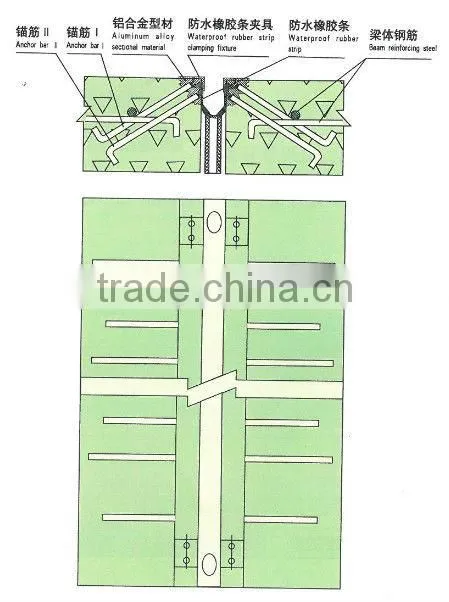

Schematic diagram of the installation of CXF type flexing equipments of railway bridges.
