Company Profile:

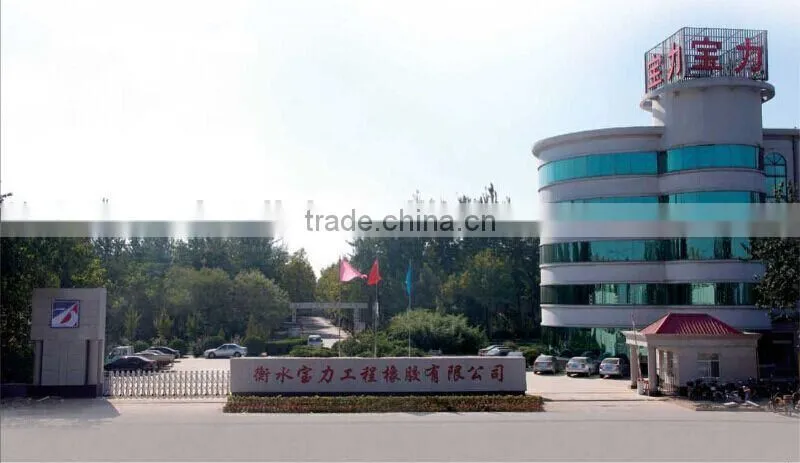

BAOLI GROUP is located in the High-Tech Development Zone of Hengshui City, Hebei Province, China. It was founded in 1993. The year productivity can amount to almost RMB 4,000,000,000 Yuan. Now our group covers an area of 960,000 square meters and more than 4000 employees work here, among whom 330 are advanced professional engineer technicians. OUR GROUP HAS 10 BRANCH COMPANIES AS FOLLOW:
- HEGNSHUI BAOLI ENGINEERING RUBBER CO.,LTD
- HENGSHUI BAOLI ENGINEERING PLASTIC CO.,LTD
- HENGSHUI BAOLI RAILWAY ELECTRIFICATION EQUIPMENT CO.,LTD
- HANLIN SCIENCE AND TECHNOLOGY CO.,LTD
- JINDI CASTING CO.,LTD
- HENGSHUI BAOLI ROLLER BRANCH COMPANY
- HENGSHUI BAOLI ROAD AND BRIDGE MAINTENANCE ENGINEERING DESIGN AND DEVELOPMENT CO.,LTD
- …
BAOLI GROUP is the biggest manufacturer of bridge bearings, bridge expansion joints, HDPE PLB ducts in China. The leading products from our group includes: bridge bearings, electrified railway contact network hardware fittings, bridge expansion joint devices, viscous dampers, rubber waterproof materials used in water resource and tunnel, communication optical fiber pipes, geogrids, geomembranes, railway shock absorbing equipments and industrial rollers etc which cover nine major kinds, 3,000 varieties and specifications.
BAOLI GROUP is the first one of the enterprises which have obtained the production certificate and attestation of CRCC in pot bridge bearings, spherical bridge bearings,elastomeric rubber bearings and so on.
From technology and management level to the ability of technology equipment, from enterprise scale to enterprise culture, all of these have occupied a leading position in the national craft brothers. Therefore, it has been elected as the director of the bridge bearing department of China Traffic Enterprise Association.
The group has worked hard for several years, with the quality as core, keep improving production technology, boost management level continuously, modify and improve quality system, enhancing the quality of staff. Due to that, a new look has been achieved, that is, “Everything relies on process; everyone pays attention to quality; every layer attaches importance to management; every product is free of fault and is perfect.” Best product quality and perfect service system make our group be sure of success in the vehement competition of the market.

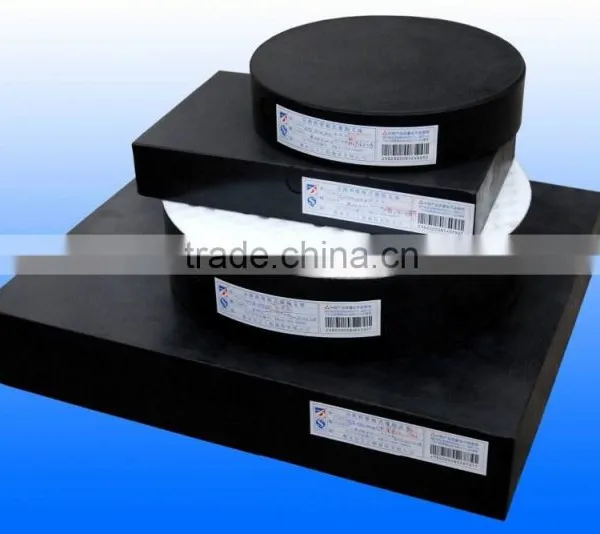

Introduction of General Plate-type Rubber Bearings (GJZ):
Bearings are designed for transmitting the load of the superstructure to the substructure, while allowing the specific movements and rotation of the superstructure caused by the wind or seismic effects, temperature variations, deck deflections, sinking of any of the supports, elastic shortening due to creeping, shrinkage or pre-stressing, etc.
Laminated rubber bearing consists of multi-layer rubber and thin steel sheet via vulcanization and adhesion. It has stuffiest vertical rigidity and is able to reliably transfer the opposite force of the upper structure to piers and it possesses very good elasticity to suit to the turn of the beam end. It also has great shearing deformation capacity, and can satisfy the horizontal displacement of the upper structures. plate Plate-type rubber bearings not only has fine technical performances, but also has simple structure, low price, no maintenance, easy to change, buffering and shock is isolating, low building height, and other characteristics. Therefore, it is welcomed and widely used in bridges.
General Rubber Bearing suits to bridges with span less than 30m and small displacement. Different flat shape suits to different bridge span structures: orthogonal bridges adopt rectangular bearing (for example, GJZ).
Specifications (GJZ):

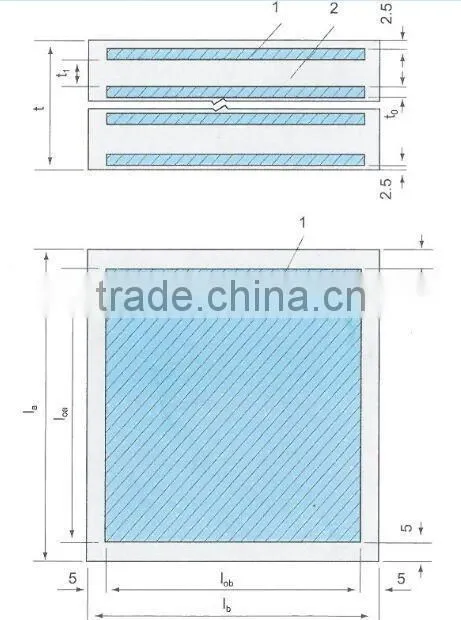

Structural Representation (dimensional unit: mm)
1. Stiffening steel plate; 2. Rubber layer
Parameter selected: la × lb = 100 × 150; t = 21 / 28
