Specifications
HDPE Geomembrane Liner1.Material: PP/PE
2.Certificate:ISO9001:2000
3.High quality, Low price
Description
Geomembrane is manufactured from High Density Polyethylene resins, The surface of both sides are smooth. The products are manufactures by the technology of coextrusion-blown triple layer, It provides geomembrane swith specific properties on each layer.
Feature
1.Environmental stress & crack resistance
2.Water resistance
3.Chemical resistance
4.UV and thermal weathering resistance
5.Conformation to sub-soil movements
6.Tear resistance
7.Puncture resistance
8.Repairable
9.Recyclable
10.Very low permeability
Specifications of 1.5mm Smooth and Black HDPE Geomembrane Liner:
|
Items Technical Data |
0.50mm |
0.75mm |
1.0mm |
1.5mm |
2.0mm |
2.5mm |
Thickness Deviation % |
±6 |
|||||
Material |
HDPE |
|||||
Density |
0.947g/m3 |
|||||
Tensile strength Mpa≥ |
14.5 |
14.8 |
15.3 |
16.0 |
16.5 |
17 |
Breaking Elongation ≥ |
465 |
472 |
490 |
505 |
512 |
523 |
Tear Resistance KN/m ≥ |
81 |
83 |
85 |
87 |
89 |
90 |
|
Water Permeability g.cm/(cm2.s.pa≤ |
1.0×10-13 |
|||||
-70 Low Termperature Brittleness |
Passed |
|||||
Size Stability % |
±3 |
|||||
Carbon Content % |
≥2 |
|||||
WidthxRoll length(m) |
(1-7)x50m |
|||||
Technical Parameter:
Number |
Item |
Value |
|||
GL |
GH |
||||
GL-1 |
GL-2 |
GH-1 |
GH-2 |
||
1 |
Tensile strength (Map) |
≥14 |
≥17 |
≥25 |
|
2 |
Elongation(%) |
≥400 |
≥450 |
≥550 |
|
3 |
Right angle tear strength N/mm |
≥50 |
≥80 |
≥110 |
|
4 |
Carbon black content of a % |
≥2 |
|||
5 |
Environmental stress cracking F20/h |
--- |
--- |
--- |
≥1500 |
6 |
Oxidation induction time at 200 °C/min |
--- |
--- |
--- |
≥20 |
7 |
Water vapor permeability g.cm/(cm2 .s.Pa) |
≤1.0×10(-16) |
|||
8 |
-70°CEmbrittlement of low-temperature impact |
(Passed) |
|||
9 |
Dimensional Stability (%) |
±3 |
|||
The 1.5mm Smooth and Black HDPE Geomembrane Liner is produced by a method of three layer co-extrusion
model. The raw material is processed at 200 by fusing and coextrusion, whose basic properties are kept during the producing process.

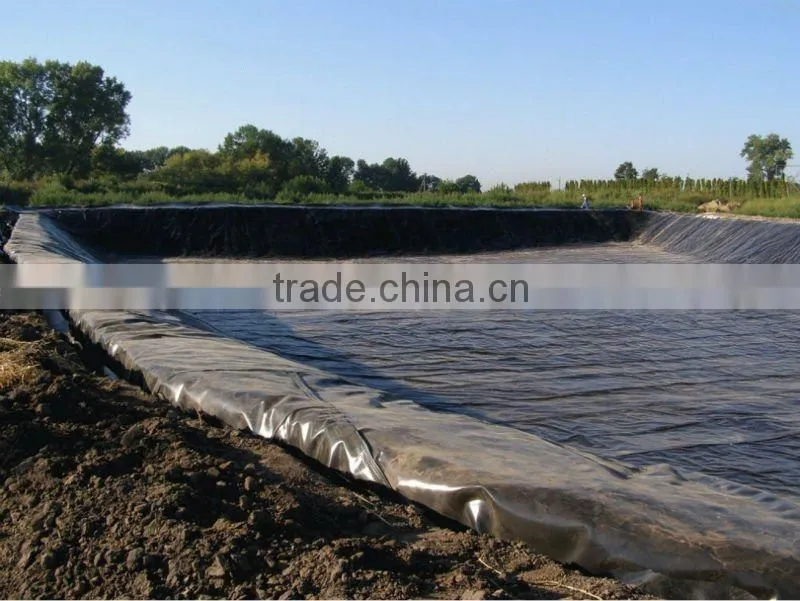

Usage:
Prevent leakage disposal in waste burying field or waste water or waste dregs disposing field,river bank,lake dam,
mine remainings ,reservior,tunnel,liquid storage ,pool(pit,mine).
Preventing leakage in subway ,basement,tunnel ,hole.
Anti-solt leakage in roadbed and other groundtill.
The plane direction laying of dam ,the vertical direction laying fou groundtill ,used in the construction fence and waste material field.
Used in seawater or freshwater feed field.
Used in groundtill of road,highway ,railway and waterproof layer of swelling clay and wet collapsed loess.
Preventing leakage on rooftop.
