2 Ton 4 Ton Coal Fired Low Pollution Hot Water Boiler
- tianjin qingdao shanghai etc
- T/T Credit Card
You May Like
-
Environmental Protection and Energy Saving Double Drum Boiler
-
Small Scale Industries Hot Water Boiler
-
High Quality Coal Fired Hot Water Boiler
-
Factory Hot Selling Hot Water Boiler for Hotel
-
Hot Water Output and District Heating, Industrial Applications Usage Boiler
-
Safe and Energy Saving Hot Water Boiler for Central Heating
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Other, water tube | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Other, biomass fired coal fired | Place of Origin | Henan, China | |
| Brand Name | YUANDA BOILER, YUANDA BOILER | Model Number | SZL | |
| Output | Hot Water | Dimension(L*W*H) | Depends | |
| Weight | different according to different size | Certification | CE ISO SGS, ISO CE SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2 ton 4 ton coal fired low pollution hot water boiler
1.Introduction of 2 ton 4 ton coal fired low pollution hot water boiler
SZL series product has a double-drum offset hearth(D-type layout) and water tube structure, great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving project.

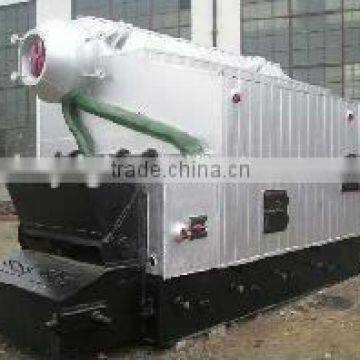

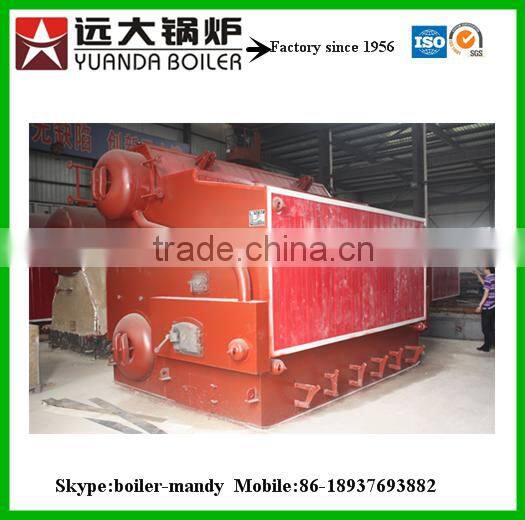

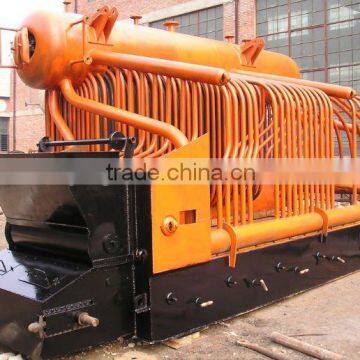

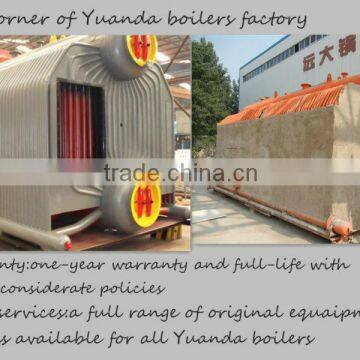

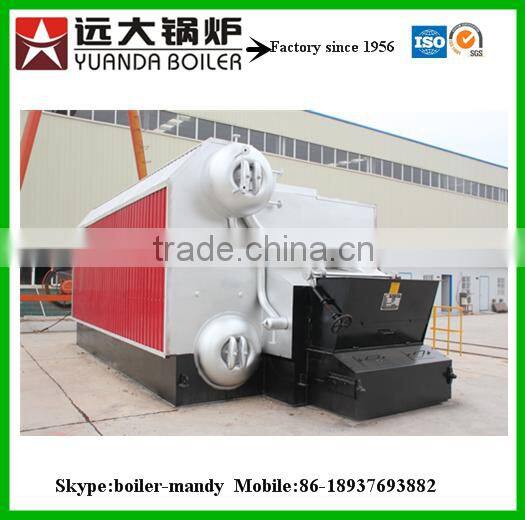

2. Product show of 2 ton 4 ton coal fired low pollution hot water boiler
3. Technical datasheet of 2 ton 4 ton coal fired low pollution hot water boiler
Boiler model | Rated thermal power | Rating pressure | Feed water temperature | Return water temperature | Active grate areas | Exhausting temperature | Thermal efficiency | Fuel consumption | Weight | Dimension | Delivery model |
MW | MPa | ℃ | ℃ | M2 | ℃ | % | Kg/h | t | mm | ||
SZL2.8-0.7/95/70-AII | 2.8 | 0.7 | 95 | 70 | 4.6 | 170 | 81 | 420 | 28 | 6510×3130×3462 | Fast packaged |
SZL4.2-1.0/115/70-AII | 4.2 | 1.0 | 115 | 70 | 7.3 | 146 | 82 | 630 | 38 | 7830×3346×3462 | Fast packaged |
4. Advantages of 2 ton 4 ton coal fired low pollution hot water boiler

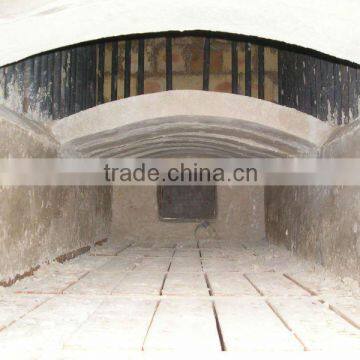

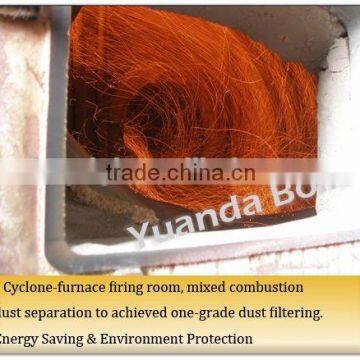

1).It designs whirlwind burning chamber structure, through high speed whirl , mixed burning and smoke separation of high temperature fume to reach the effect of dust removing, energy saving and environmental protection.
2).With large volume hearth and strong adaptability of coal, it can use various biomass as the fuel.
3).It has large heating surface, which can rapid boost, sufficient capacity and low energy consumption.
4).Sending as a entirety makes the installation time short.

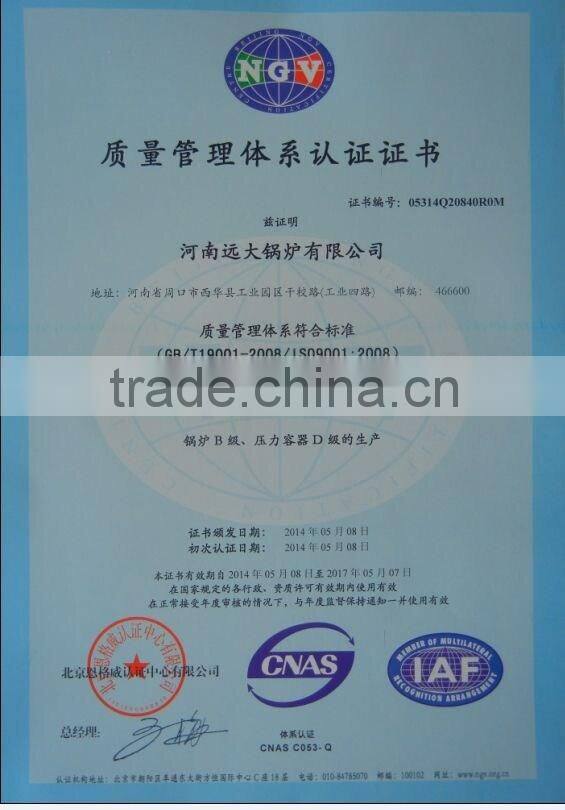

5.Our certificates
6. Customers visist our factory

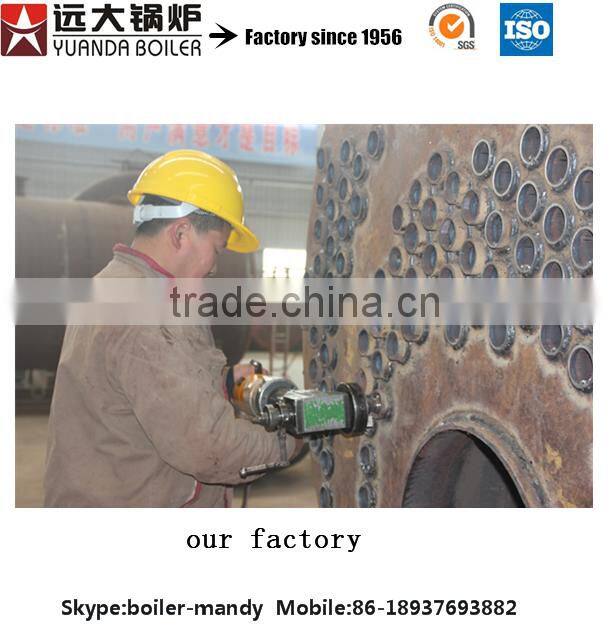

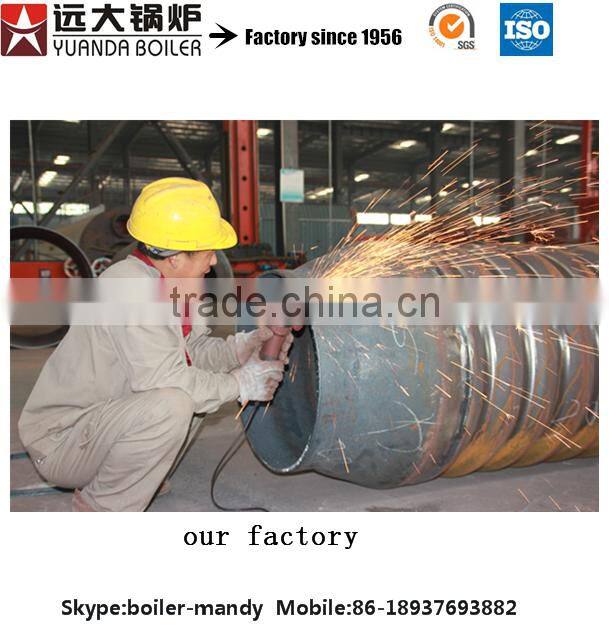

Henan Yuanda boiler Co,. Ltd, located in Xihua country, Henan province, is the leading manufacturer of industrial boiler in China. We are professional in manufacturing boilers for 60 years till now(established in 1956). Our company is one of the leading enterprises which firstly obtained the national boiler manufacturing license in China. We have our own factory, professioanl engineers and sales team. Our products are not only well-sold in China, but also export to lots of countries and regions. Our aim is "Yuanda warm every corner of the world".
Our products series include more than 150 kinds. Mainly includes:
- 0.2-20ton/hour industrial boilers with below 2.5Mpa pressure
- Steam boiler or hot water boiler
- Fuel: coal or biomass or gas or oil etc.
- Model: DZL, SZL, WNS, LHS, LNB, LSC etc.
