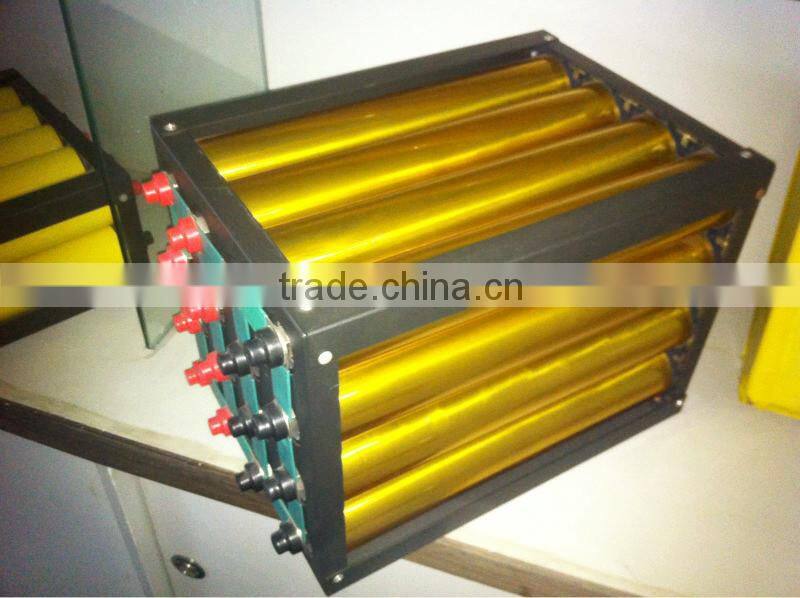

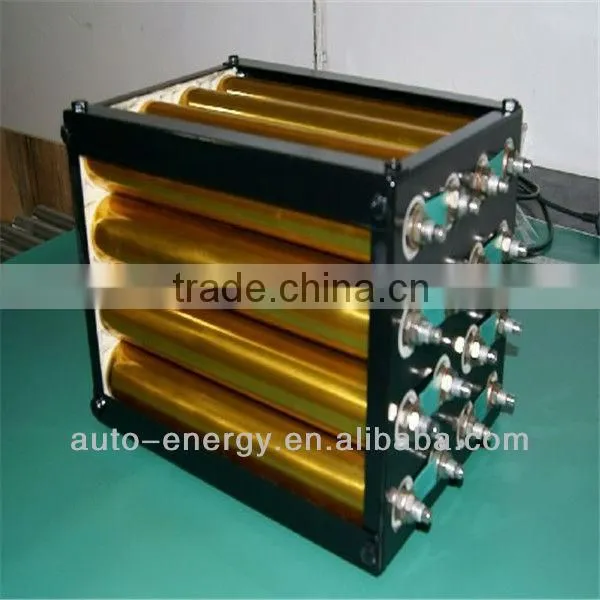

Help Center48v 50ah Lifepo4 Battery Pack for Car UPS Energy Storage
Related Products
-
Safety and Long Lifespan Lithium Battery 12v 60ah for Starting Battery, Electric Bike, UPSUS$ 1.11 - 1.26MOQ: 2000 Amperes -
Lithium Battery Pack Lifepo4 Battery Pack 24v 100ah With Long Cycle Life Made in ChinaNegotiableMOQ: 5000 Amperes
-
24v 200ah li -ion Battery Pack With Long Cycle LifeUS$ 7 - 7.5MOQ: 2000 Amperes
-
High Performance 12v 24v 48v 300ah Lifepo4 Battery Pack for Car Li-BatteryUS$ 1.1 - 1.3MOQ: 5000 Amperes
-
24v 250ah Battery Pack With Long Cycle LifeUS$ 7 - 7.5MOQ: 5000 Amperes
Specifications
12v/24v/36V/48V/72V/96V/144V lifepo4 battery for solar,EV and UPS
2000 times cycle
24 months warranty
Item |
Basic parameters |
|
Model |
48V50AH |
|
Material of Anode/Cathode |
LiFePO4/Graphite |
|
Size (Diameter*Height)) |
260(T)*380(W)*260(H)(mm) |
|
Weight |
≤28Kg |
|
Nominal capacity |
50Ah |
|
Nominal voltage |
48V |
|
Internal resistance: |
≤70mΩ |
|
Energy density |
≥100Wh/kg at 0.2CDC |
|
Volumetric energy density |
≥180WH/L at 0.2CDC |
|
Discharge cut-off voltage |
32V |
|
Charge voltage |
58V |
|
Standard charging |
0.2C constant current charge to 58V, then constant voltage 58V charge till charge current decline to≤0.05C |
|
Standard discharging |
0.2C CC discharge to 32V |
|
Max .continual charge current |
50A(1C) |
|
Max. continual discharge current |
150A(3C) |
|
Max. Charge/discharge pulse current |
400A |
|
Operating temperature |
Charging: 10~45°C |
|
Storage temperature |
Less than 1 year: 0~25°C |
|
High temperature performance |
0.5C capacity higher than 98% of nominal capacity at 55°C |
|
Low temperature performance |
0.2C capacity higher than 70% of nominal capacity at -20°C |
|
Standard charge/discharge cycle life |
Cycle life of standard charge/discharge |

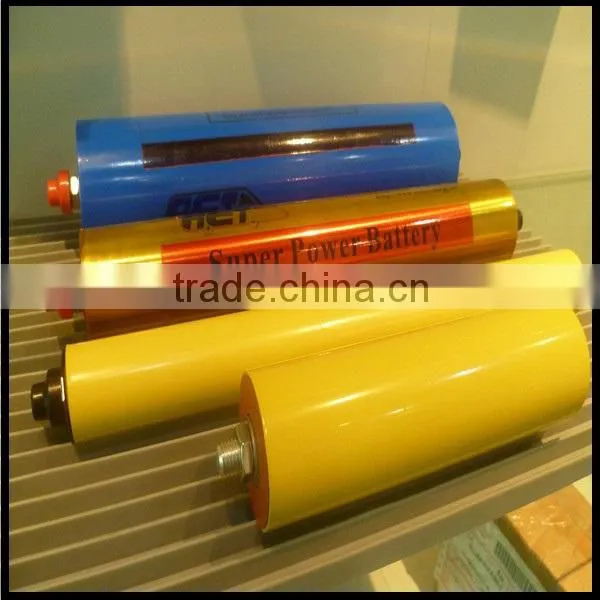

- Winding structure ,natural close fit,strong seismic resistance.
- Zero dust, zero burr, to eliminate safety hidden trouble from source
- Super performance in rate discharging
- 360 degree in any display, high space utilization
- Long cycle life ,super cell consistency
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
What we can do:
1. All of our products have proceeded comprehensive testing before shippment;
2. Support imprint your logo on products;
3. OEM orders are warmly welcome!
Warranty and Return:
1. All products have been tested before ship out;
2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)
3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.
