Automatic Vertical Liquid Packing Machine

Automatic Vertical Liquid Packing Machine photo-1
US$ 16,000 - 36,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SanTung
Model Number:
ARF
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name SanTung
Model Number ARF
Type Other, Liquid
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic Vertical Liquid Packing Machine
Liquid Packing Machine
Vertical packing machine
Automatic liquid machine

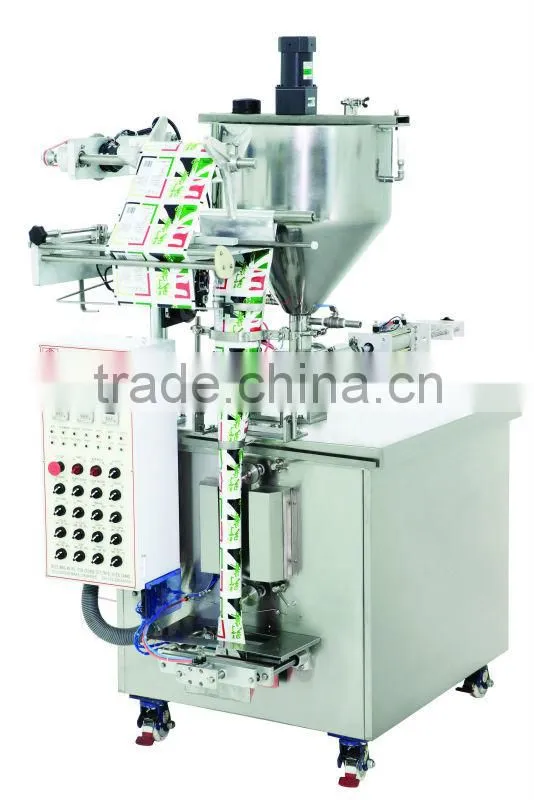

Automatic Vertical Liquid Packing Machine



 The machine applies to pack higgh concentrate, low viscosity liquid products. High temperature

  liquid is available to fill up.

* Operate with automatic measuring, filling, sealing and cut-off. With electric eye sensor can perform

  accurate alignment and pitch of package.

* It can be equipped with date coder to print date and batch number of packing foil.

* This machine can be designed in touch screen control panel or mechanical control panel.



Application:

Curry paste, Meat sauce, Ketchup, Chili sauce... etc.



SPECIFICATIONS :

Model

ARF-1

ARF-2

Capacity (Bag/Min)

15~20

20~30

Weighing Range

10~100g

100~500g

Electric Power

AC 220V

3 phase 2HP

AC 220V

3 phase 2HP

 Dimensions
L x W x H (m/m)

900x700x1900

1000x800x1900

 Air Compressor

2HP

3HP

* Air compressor is not included



Automatic Vertical Liquid Packing Machine

 Mechanical panel

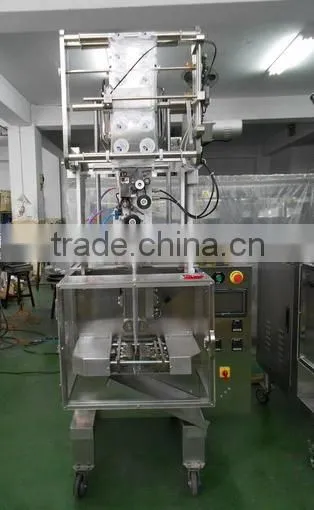

Automatic Vertical Liquid Packing Machine

Touch screen panel
