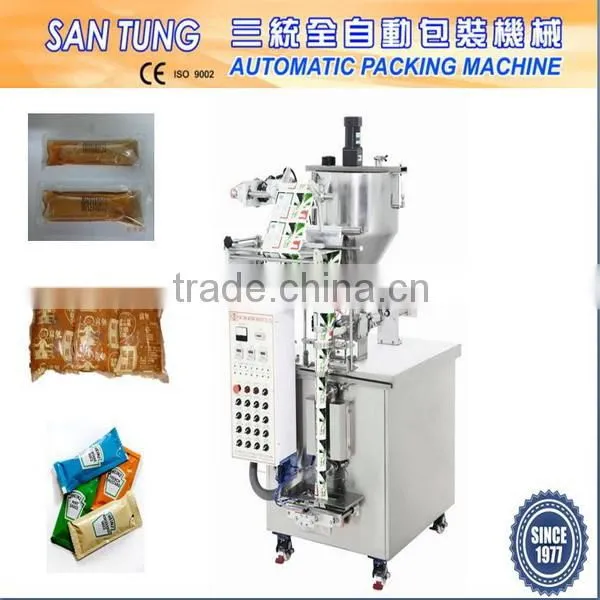

Automatic Vertical Liquid Packing Machine

Specifications

Automatic Vertical Liquid Packing Machine
Liquid packing machine
Automatic packing machines
Vrtical packing machine

Automatic vertical liquid packing machine





* The machine applies to pack higgh concentrate, low viscosity liquid products. High temperature

  liquid is available to fill up.

* Operate with automatic measuring, filling, sealing and cut-off. With electric eye sensor can perform

  accurate alignment and pitch of package.

* It can be equipped with date coder to print date and batch number of packing foil.

* This machine can be designed in touch screen control panel or mechanical control panel.



Application:

Curry paste, Meat sauce, Ketchup, Chili sauce... etc.



SPECIFICATIONS :

Model ARF-1 ARF-2 Capacity (Bag/Min) 15~20 20~30 Weighing Range 10~100g 100~500g Electric Power AC 220V 3 phase 2HP AC 220V 3 phase 2HP  Dimensions L x W x H (m/m) 900x700x1900 1000x800x1900  Air Compressor 2HP 3HP

* Air compressor is not included



 Mechanical panel



Touch screen panel
