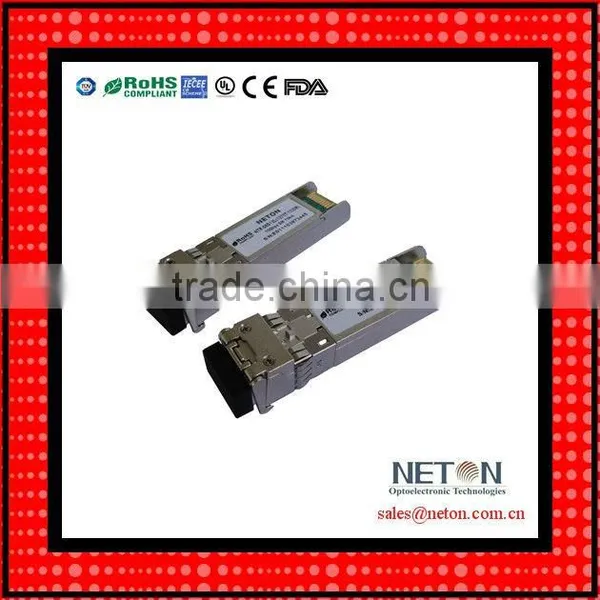

SFP+ 10G
Product Features
- Up to 10.7 Gb/s Bi-directional Data Links
- Complaint with SFP+ MSA
- Compliant to IEEE 802 .3ae 10GBASE
- Maximum Link Length of 10 km at 10.3125Gb/s
- Uncooled 18-Wavelength CWDM DFB LD: from 1270 nm to 1610nm
- Power Budget > 11 dB
- SFF-8472 Digital Diagnostic Function
- AC/AC Coupling according to MSA
- Single +3.3 V Power Supply
- RoHS 6/6 Compliant
- 0 to 70 C Operating
- Class 1 Laser International Safety Standard: IEC-60825 Compliant
Applications
- 10G Ethernet Links
- High-speed Storage Area Networks
Order Information
Type |
Data Rate |
Wavelength |
Reach |
Others |
|
NTR-S8D31D-1270 NTR-S8D31D-1290 NTR-S8D31D-1310 NTR-S8D31D-1330 NTR-S8D31D-1350 NTR-S8D31D-1370 NTR-S8D31D-1390 NTR-S8D31D-1410 |
10Gbps |
1270nm CWDM 1290nm CWDM 1310nm CWDM 1330nm CWDM 1350nm CWDM 1370nm CWDM 1390nm CWDM 1410nm CWDM |
10Km 10Km 10Km 10Km 10Km 10Km 10Km 10Km |
ROHS |
Transmitter Optical Specifications (0oC < Topr < 70oC, 3.13V < Vcc < 3.47V) | ||||||
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
Average Launch Power |
Po, Avg |
-5 |
|
0 |
dBm |
1 |
Output Center Wavelength |
c |
1260 |
1270 |
1280 |
nm |
|
Output Spectrum Width |
σ |
|
|
1 |
nm |
-20 dB width |
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
Average Launch Power of OFF Transmitter |
|
|
|
-30 |
dBm |
|
Transmitter Optical Specifications (0oC < Topr < 70oC, 3.13V < Vcc < 3.47V) | ||||||
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
Average Launch Power |
Po, Avg |
-5 |
|
0 |
dBm |
1 |
Output Center Wavelength |
c |
1260 |
1270 |
1280 |
nm |
|
Output Spectrum Width |
σ |
|
|
1 |
nm |
-20 dB width |
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
