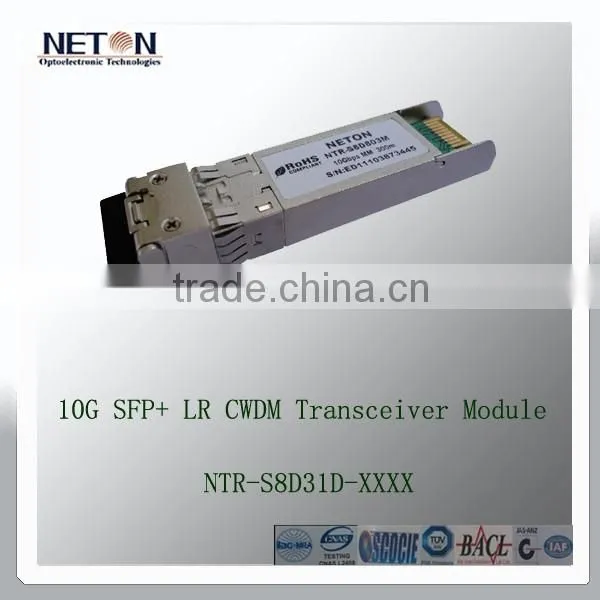

1310nm 10g cwdm sfp LR
Neton’s NTR-S8D31D series single mode transceiver is small form factor pluggable module for dual fiber serial optical data communications such as IEEE 802 .3ae 10GBASE-LR/LW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital d iagnostic functions are available via an I2C. This module is designed for single mode fiber and op erates at a nominal wavelength of 1310nm. The transmitter section uses a 1310nm multiple q uantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Up to 10.7 Gb/s Bi-directional Data Links
Complaint with SFP+ MSA
Compliant to IEEE 802 .3ae 10GBASE-LR
Compliant to IEEE 802 .3ae 10GBASE-LW
SFF-8472 Digital Diagnostic Function
1310 nm DFB LD Tran smitter
AC/AC Coupling according to MSA
Distance up to 10 km at SM Fiber
Single +3.3 V Power Suppl
RoHS 6/6 Compliant
Operting temperature
Class 1 Laser International Safety Standard IEC-60825 Compliant
Order Information Table 1: Order Information
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
NTR-S8D31D |
SM |
1310DFB |
10Km |
Application
l 10GBASE-LR/LW 10G Ethernet
l 1200-SM-LL-L 10G Fiber Channel
Factory
10G SFP+ Module
Advanced dust-free workshop
Experienced technicians
Mature production technology
Standard production process
High Quality with CE, and RoHS certificates of 10G SFP+
Shipment
10G SFP+ Module, BIDI SFP+
International Express: DHL, FedEx, UPS, TNT and EMS SFP+ 10G
Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
Shipments OF SFP+ are usually delivered in 1-3 working days after received payment and 1-3 days after received ning capabilities.Our reputation of sfp+ has been built on providing quality parts and customer service you can count on.High Reliability:MTBF 3-5years SFP+ LR Transceiver Module 10g sfp+
1.What is the warranty for your 1x9 optical modules?
All our products with strict quality control.1x9 modules have 1 year warranty and 3-5 years for MTBF. Free for maintaining within warranty period. In fact, Our repair rate is almost zero.
2.Do you ship internationally?
Yes.We can ship anywhere you would like.If your order is paid by T/T, and Westem Union we can ship it via our delivery forwarder or on your shipping account number ,to ensure you are getting the best rates and this allows you to handle the export/import taxes.
3.I placed an order,who do i call to get tracking information?
Our colleagues of shipping will send you the tracking information immediately after shipping. You can also get the tracking messages from your sales servicer.
4.How do I know NETON parts are good?
We currently are an approved vendor/a gold supplier for Alibaba. We have a number of testing facilities at our disposal and have on-site counterfeit screening capabilities.Our reputation has been built on providing quality parts and customer service you can count on.
5. What's your best advantage in the optical modules line?
achieve various customized requires is our favourate advantage. Because over 20 excellent technicials act as our strong backers.
6.What's your main products?
Our main products are optical transceiver modules, like 1x9, SFP,XFP.
And we can produce all datarate series of modules from DC~2M, 2M~622M,622M~2.5G to 2.5G~40G,
and all kinds of encapsulations from 1x9, SFP,XFP, SFP+ to PON, GPON,GEPON even copper connector and metal 1x9, and WDM from CWDM to DWDM are acceptable,
and single/double/triple transceiver module,single/double/triple transmitter module, single/double/triple receiver module for your various demands.
Keyword: 622M sfp , SFP Transceiver Module, SFP transceiver low price , 622M sfp module, DWDM SFP,factory SFP, Original Finisar SFP, SFP Optical Transceivers, SFP-622M-LX-SM1310, SFP Transceiver SDH/SONET, SONET STM-4 622Mbps 120km sfp, Factory supply sfp,sfp+
More information, please feel free to contact or visit us!
tencent number: 2452987217
phone:+86 28 86080286-807
mobile:+86 18384172670
e-mail: xiaohong at sales at
