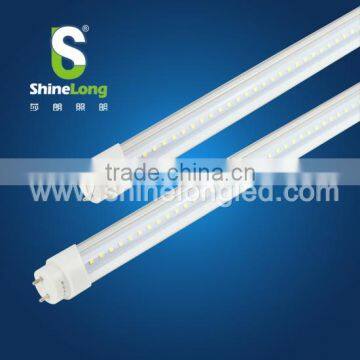

Help CenterNo Flash & Energy Saving 1500mm Led Tube 30w
Related Products
-
High Lumens UL/TUV Listed 1200MM 18W T8 Led Tube Light in ShenzhenUS$ 0.1 - 0.2MOQ: 10 Pieces -
UL/cUL Approved T8 LED Ceiling Light 1200mm 15WUS$ 10 - 15MOQ: 10 Pieces
-
3-5 Years Warranty LED Tube T8 15W 1200mm UL/cUL ApprovedUS$ 5 - 15MOQ: 10 Pieces
-
TUV/UL Approved 1500mm 30W 2016 New Led 8 TubeUS$ 33 - 37MOQ: 10 Pieces
-
Energy Saving & HG Free 1500mm 30W Led Tube T8 G13 Shenzhen FactoryUS$ 0.1 - 0.2MOQ: 10 Pieces
led tube 30w specification | |
Absolute Maximum Rating at TA=25°C | |
Parameter |
Absolute Maximum Rating |
Rated Input Voltage |
AC100V ~ AC240V |
Operating Voltage |
DC36-42V |
Operating Current |
Constant 17mA |
Electrostatic Discharge |
1500 V |
Operating Temperature |
-20 ~ +50 °C |
Storage Temperature |
-30 ~ +50 °C |
Material |
Aluminum + striped /transparent/frosted PC cover |
Power consumption |
30W |
Led Qty |
528PCS |
Luminous Flux(Typ) |
800-1100LM |
Color temperature |
WW:3000-3500-4000k,PW:5000-5500K,CW:6000-6500K |
CRI |
Ra70 |
Viewing angle |
120° |
Power Factor |
>95 |
Life Time |
30,000-50,000 H |
The advantages of products:
•Patent design for tube shape and product mix
•No UV-light to avoid the insects being around
•No Mercury and other harmful components
•No flicking or dazzing during operating
•No RF interference
•Energy can be saved 70%
•Isolated power supply and can be replaced easily by hand
•High Illumination 0.06W SMD LED and low light decay
•Patent turntable end cap for different light emitting directions
•Constant LED forwarder current during tube operating
•Temperature difference less than 10°C between inside and outside
•TUV, UL, CE, RoHS approved
The advantages of factory:
•Complete production lines, including SMD LED, Tube series, Flexible LED stripe series, Mould making and Plastic laminating..
•Advanced equipments for production and testing. For example YAMAHA SMT and American HELLER solder reflow.
•ERP system for factory management.
•Professional production , R&D and SALSE team.
•Big work shop and large production capacity(500,000PCS tubes/month)
•Recyclable, SHINELONG can take back or replace the products after being us
Welcome to ShineLong factory:
