Home > Products > 4.Plastic Profile Machine > Plastic window machine/PVC door machine line
Plastic window machine/PVC door machine line
- 30 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | Automatic | Place of Origin: | Shandong, China |
Brand Name: | Deerma | Model Number: | SJSZ-65 | Voltage: | 380V/3P/50HZ |
Power(W): | 90kw | Dimension(L*W*H): | L22000*W2200*H2300mm | Weight: | 10T |
Certification: | CE/ISO9001/SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PVC Plastic window machine/PVC door machine line
What is Features of our PVC profile machine?
1.Our PVC profile machine has features of low consumption,low noise,stable running..
2.This PVC profile machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of pvc machine adopt special wpc screw and barrel for extrusion.With different mould,pvc machine
can produce pvc products with different shapes.
Technical parameter
Model | YF180 | YF300 | YF600 | YF800 | YF1000 |
Max.width of product(mm) | 180 | 300 | 600 | 800 | 1000 |
Extruder mode | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
Extrusion capacity(kg/h) | 150 | 180 | 360 | 360 | 600 |
Motor power(kw) | 18.5 | 37 | 55 | 55 | 110 |
Total length(m) | 18 | 22 | 26 | 28 | 32 |
Main Composition
Item | Quantity |
SJSZ- XX Twin Screw Extruder with Automatic Feeding System | One set |
Die Mold & Stock Mold | One set |
Vacuum Calibrarion Table | One set |
Haul-off and Cutter Unit | One set |
Stacker | One set |
Electric Control System | One set |
Application

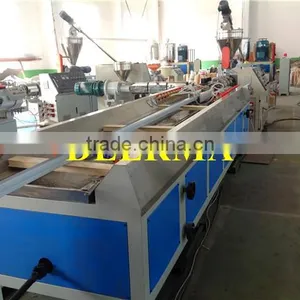

Machine's Photos

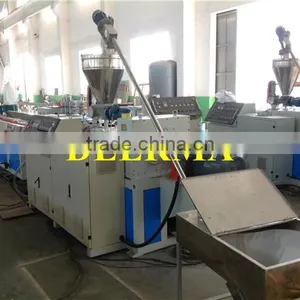

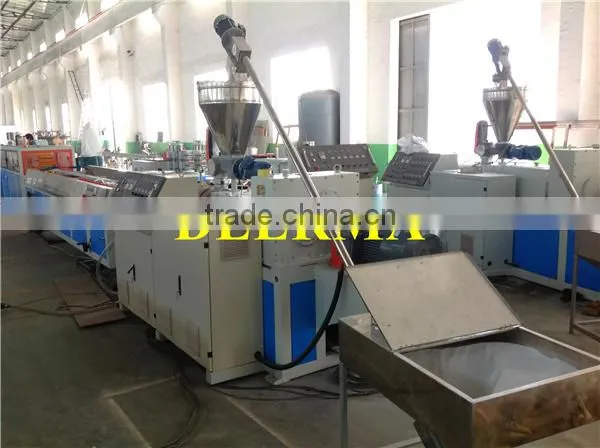

1.Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
Max Motor | SIEMENS |
Motor power | 37kw |
2.Die Mould and Stock Mould (Matches or according to customer's drawings or samples)
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
3.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul-off unit and cutting unit
Max traction speed | 1-5m / min |
Tractor motor seed control | Frequency Control |
Tractor motor power | 3kw |
Cutter motor power | 1.5kw |
5.Stacker
6.Electric control system
Temperatue meter | Omron |
Contactor | Schneider |
Relay | Schneider |
Transducer | ABB |
Power light, button | Schneider |
Inveter | ABB |
1. SWP360 Crusher
2.SHRL 300/600 High Speed heat/cooling mixer machine
Trade Terms
Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
Delivery Time: 30-45 days; IN STOCK
MOQ: 1set
Our Certification
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
We have SIX this production lines in our showroom for other customer , welcome to visit our factory
