DEERMA SJSZ51/105 PVC ceiling profile machine/extrusion line
Technical parameter of DEERMA SJSZ51/105 PVC ceiling profile machine/extrusion line
| Model | YF180 | YF300 | YF600 | YF800 | YF1000 |
| Max.width of product(mm) | 180 | 300 | 600 | 800 | 1000 |
| Extruder mode | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extrusion capacity(kg/h) | 150 | 180 | 360 | 360 | 600 |
| Motor power(kw) | 18.5 | 37 | 55 | 55 | 110 |
| Total length(m) | 18 | 22 | 26 | 28 | 32 |
Main Composition
| Item | Quantity |
| SJSZ- XX Twin Screw Extruder with Automatic Feeding System | One set |
| Die Mold & Stock Mold | One set |
| Vacuum Calibrarion Table | One set |
| Haul-off and Cutter Unit | One set |
| Stacker | One set |
| Electric Control System | One set |
Electric control system
| Temperatue meter | Omron |
| Contactor | Schneider |
| Relay | Schneider |
| Transducer | ABB |
| Power light, button | Schneider |
| Inveter | ABB |
| Main Motor |
SIEMENS |
Photoes

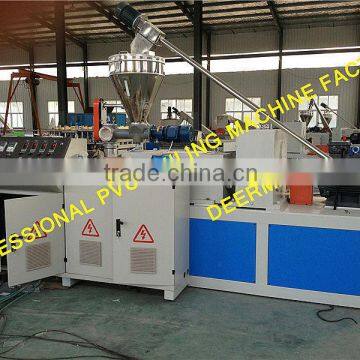

1.Twin screw extruder with Automatic feeding system -- SJSZ series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2.Die Mould and Stock Mould (Matches or according to customer's drawings or samples)
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips

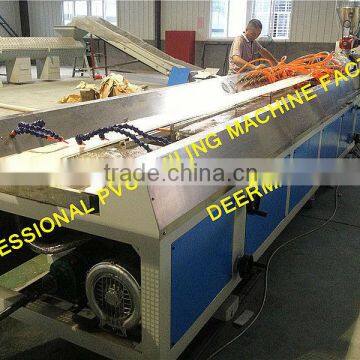

3.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul-off unit and cutting unit
| Max traction speed | 1-5m / min |
| Tractor motor seed control | Frequency Control |
| Tractor motor power | 3kw |
| Cutter motor power | 1.5kw |
5.Stacker
The stainless steel kneading board processing becomes, the air operator turn over, using with the cutter, automatically pushes the material, decides long cuts.
A. Trade Terms
Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
Delivery Time: 30-45 days; IN STOCK
MOQ: 1set
B. Certification
C. Company Review
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
Our Partner
We have SIX this production lines in our showroom for other customer , welcome to visit our factory
