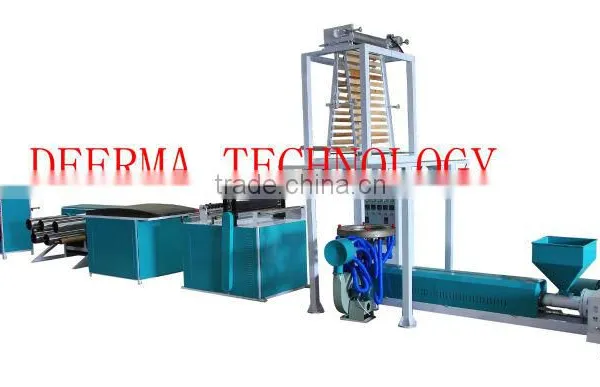

pp Film Blowing Machine

pp Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plastic Processed:
PP
Blow Moulding Type:
Extrusion Blow Moulding
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plastic Processed PP
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin China
Brand Name Deerma
Model Number SJ55.SJ60,SJ70,SJ80,SJ90
Application Other, tear film,, Film

Specifications

pp film blowing machine
1.excellent quality easy operation
2.turnkey project and good service
3.with CE and ISO certification

pp film blowing machine

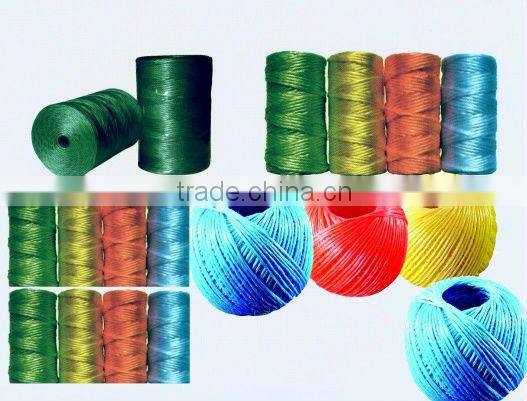

This equipment mainly uses in producing tearing film rope,woven mesh rope, the beer rope, electric cable packing rope etc. Meanwhile,we also developed the reticulation tearing film units on the basis of the flat film drawing unit,it has met the domestic and foreign customers need effectively,simultaneously we also accept the tearing membrane equipment's processing operation,we have the first-class technical personnel and the abundant scientific research strength,can design and develop the tearing film equipment according to the customers sample and demanded. The complete equipment has rational design, can produce the tearing film use the waste plastic,the tearing film produced by the raw material,the quality is better. The extruders screw and cylinder both use the 38 CrMoAlA after nitriding treatment,it has the high output, the service life is long, anti-corrosive and so on merits.


Usage:
It is used to make PP film.


Specification:



Model No.
SJ-55
SJ-60
SJ-70
Screw Diameter
55mm
60mm
70mm
Screw Ratio
L/D28:1
L/D28:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
11KW
15KW
18.5KW
Main Output
32kg/h
38kg/h
46kg/h
Max.Folding Width of Film
600mm
700mm
800mm
Single-side Thickness of Film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
22Kw
28Kw
36Kw
Weight of Machine
2300kg
2900kg
3500kg
Machine Dimension
4600x1800x4000mm
4800x2000x4000mm
5000x2200x4200mm





Remark:

We also have wider width machine,twister machine,any interest,please feel free to contact us,we will provide you details.thanks.
