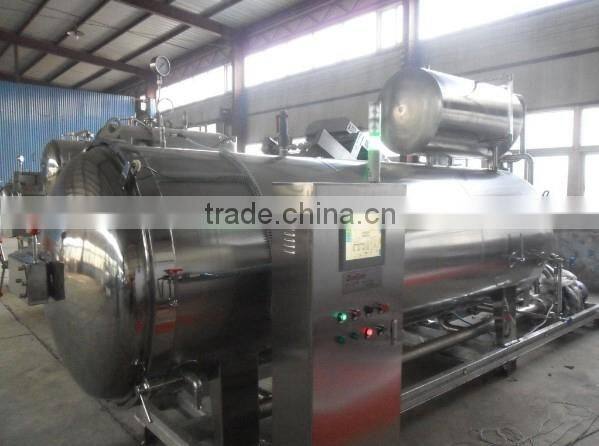

(Manufacturer)Rotary Cooking Retort Sterilizer Machine/equipment

(Manufacturer)Rotary Cooking Retort Sterilizer Machine/equipment thumbnail-1
(Manufacturer)Rotary Cooking Retort Sterilizer Machine/equipment photo-1
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HY
Contact Supplier Request Quote Chat Now
Wenzhou Huayou Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
WenZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name HY
Model Number HY-001
Usage Diary Product
Type Autoclave
Certification CE
Warranty 1years
After-sales Service Provided Overseas service center available

Specifications

(Manufacturer)Rotary Cooking Retort Sterilizer Machine/equipment

ecifications



1. High sterilization precision
2. Automatic computer control system
3.Fast heating, short sterilization short


  Rotary Retort    are the equipments for canned food to cook, sterilize and cool. It is especially for the high rate of solid food (such as cans, rice pudding, milk peanuts, etc.) and other canned food which is various concentrations and different viscosity. It can ensure not hierarchical and non-precipitation in the shelf time. In addition to the above characteristics, the material of this machine cage clamping device is used internationally advanced pneumatic components; it has the advantages of reasonable design, compact structure, safe and reliable operation, high efficiency, with a simple installation, easy operation and maintenance, etc.
Usages
  It can be used for food sterilization in glass bottles, plastic bottles, cooking bags, cans such as dairy products, beverage, canned food, rice pudding, ham, meat etc.
Characteristics
1. Converting the direction of flow ensures uniform temperature and no dead ends
 2. Fast heating, short sterilization short
 3. High sterilization precision
4. Automatic computer control system
          a. The world’s most advanced Japan’s Mitsubishi Q-type PLC.
          b. 970 large touch screen.
          c. It can use the automatic temperature control valve to adjust the temperature.
          d. The pressure transmitters can adopt electric display.
          e. It ca print and store the pressure curves of time, temperature and pressure.
          f. All the valve switches adopt computer control.
         g. Fully automated by computer programs without manual operation.
5. Can be set to one type and multi stage sterilization
 6. Function of measuring F
7. Storage of sterilization formula

Technical Parameters
Volume
600L
1100L
1900L
2200L
3100L
4000L
Body diameter (mm)
800
900
1000
1100
1100
1200
Body length (mm)
1000
1500
2000
2000
3000
3000
material
SUS304/ Q235-B
Designed pressure
0.35MPa
Working pressure
<0.3MPa
Designed temperature
140.7°C
Working pressure
<135°C
Notes:
1.     The parameters in the chart are standard configurations. Any specific requirements, please put forward.
2.     The process parameters that need provided when choosing the retorts: the nature of material, sterilization process, specific requirements, etc.
3.     Accessories: storage gas tank, air compressor, water tank, boiler.
Technical Requirements
1. File support: the structural size drawing of the device (PDF) and instructions are available.
2. Required by operated function, the following criteria are adopted to design, manufacture and test
A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;
B. << The Steel Pressure Vessel (GB150-1998)>>;
C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;
D. << Food Machinery Safety and Heath (GB 16798-1997)>>.
