Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Food & Beverage Sterilizer > (Manufacturer)PLC Control Rotary Retort

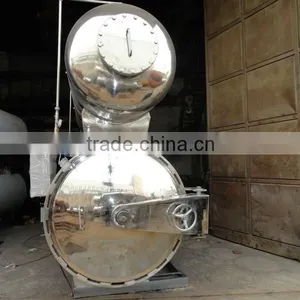

(Manufacturer)PLC Control Rotary Retort

US$ 2,000 - 6,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

Contact Supplier Request Quote Chat Now

Wenzhou Huayou Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

WenZhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name HY

Model Number HY-001

Usage Diary Product

Type Autoclave

Certification CE

Warranty 1years

After-sales Service Provided Overseas service center available

Specifications

(Manufacturer)PLC Control Rotary Retort

Product use

1. Plastic containers: PP bottle, HDPE bottles.

2. Soft bag packaging: tin foil bag, transparent bag, vacuum bags, high-temperature cooking bags, etc.

3. Specialist of printed tinplate: steel and glass products.

Product descriptions

Specifications

PLC Control Rotary Retort
1. metal containers
2. plastic containers
3. soft bag

Characteristics of Autoclave

1. Converting the direction of flow ensures uniform temperature and no dead ends

The cycle water in sterilization pot goes to up, down, left and right totally eight points, uniform conversion ensures the heat distribute for each point from temperature improving, sterilization, temperature reducing and cooling, achieve the best bacterial effect.

2. Fast heating, short sterilization short

This machine adopts two cans hot water cycle, the hot cans can be pre-heated to the desired temperature and then for sterilization, thus reducing the sterilization time. The working medium can be recycled, thereby saving energy, time and labor force, reducing production costs.

3. High sterilization precision

This machine adopts the most advanced technology and Japanese computer components, using hot water cycle to immersion sterilization. In the course of working, the pot temperature, pressure, sterilization time, inlet steam, inlet water, drainage and other processes are all using computer automation. The pot accuracy is about 0.3 degree. Ensure the product color, flavor, nutrients, and keep the original taste.

4. Automatic computer control system

a. The world’s most advanced Japan’s Mitsubishi Q-type PLC.

b. 970 large touch screen.

c. It can use the automatic temperature control valve to adjust the temperature.

d. The pressure transmitters can adopt electric display.

e. It ca print and store the pressure curves of time, temperature and pressure.

f. All the valve switches adopt computer control.

g. Fully automated by computer programs without manual operation.

Technical parameters of Autoclave

Technical parameters

Volume	600L	1100L	1900L	2200L	3100L	4000L
Body diameter (mm)	800	900	1000	1100	1100	1200
Body length (mm)	1000	1500	2000	2000	3000	3000
Material	SUS304/ Q235-B
Designed pressure	0.35MPa
Working pressure	<0.3MPa
Designed temperature	140.7°C
Working temperature	<135°C

Our services

Packaging&Shipping

Company information

WenZhou Huayou Machine Facture committed to design and manufacture all kinds of stainless steel container.We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc . The equipments conform to the sanitary standards, thus effectively guarantee the people's health.

WenZhou Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products have been send to all over the world for 10 years . We are deeply trusted by the users in food and beverage industry. We are famous in food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

Since founded in 1991 , we serve customers with good pre-sale support and after-sale service . Our purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
