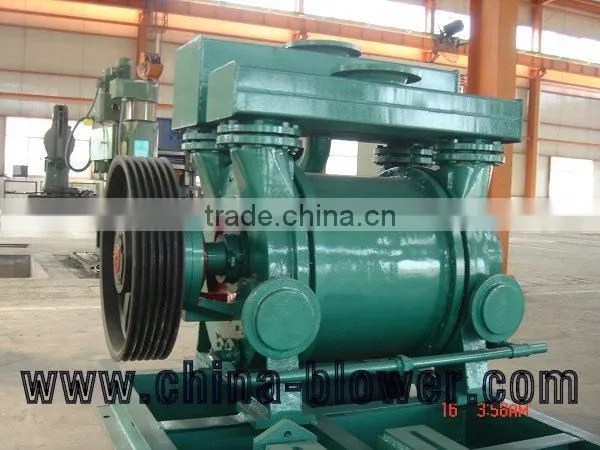

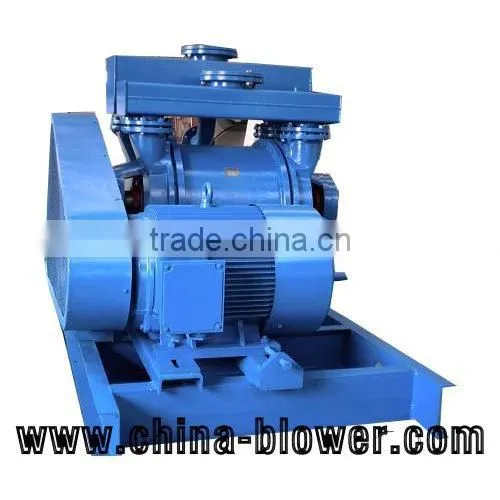

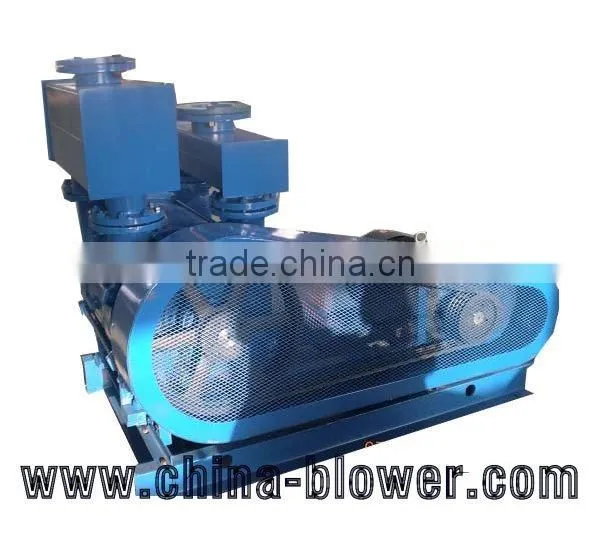

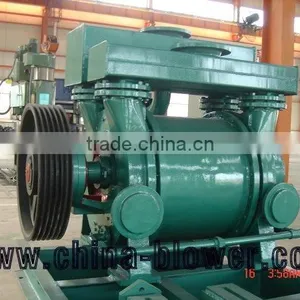

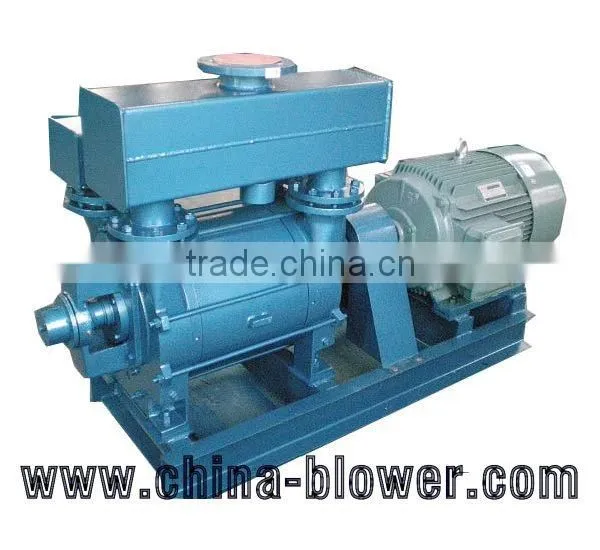

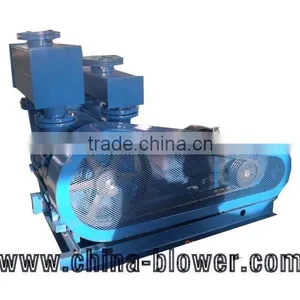

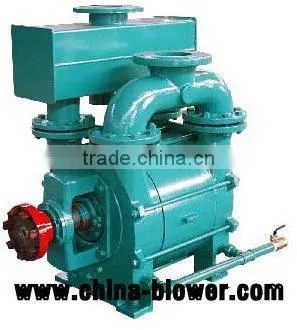

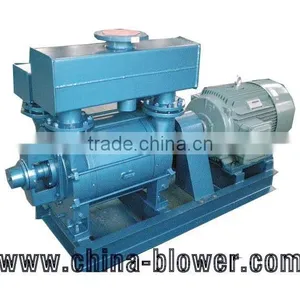

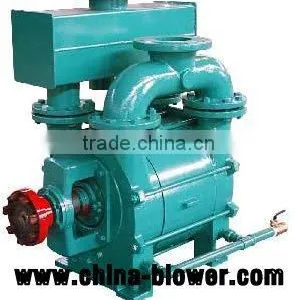

2BE1 202 water ring vacuum pump

Name: 2BE1 202 water ring vacuum pump
Brand: Greentech
Price: USD $5,870 - 6,490 / Set

FOB Price

USD $5,870 - $6,490 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port QINGDAO SHANGHAI NINGBO etc.
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	Greentech	Model Number:	2BE1 202
Theory:	Vacuum Pump	Structure:	Screw Pump	Usage:	Air Pump
Power:	Electric	Standard or Nonstandard:	Standard	Fuel:	Other, Electric
Pressure:	High Pressure	Application:	Other, vacuum

Product Description

2BE1 202 water ring vacuum pump

2BE1 series water ring vacuum pumps and compressors are the products with high efficiency and economic power, which are manufactured by our company integrating with the advanced technology of the imported products from Germany.

These series products adopt single stage and single action structure and have many advantages, such as, compact structure, convenient maintenance, reliable running, high efficiency and economic power.

2BE1series vacuum pumps technology preferences

Type	Speed (Drive type) r/min	Shaft power kW	Motor power kW	Motor type	Limited vacuum mbar			Weight (Whole set) kg
						Suction capacity
						m³/h	m³/min
2BE1 151-0	1450(D) 1100(V) 1300(V) 1625(V) 1750(V)	10.8 7.2 9.2 13.2 14.8	15 11 11 15 18.5	Y160L-4 Y160M-4 Y160M-4 Y160L-4 Y180M-4	33mbar (-0.098MPa)	405 300 360 445 470	6.8 5.0 6.0 7.4 7.8	469 428 444 469 503
2BE1 152-0	1450(D) 1100(V) 1300(V) 1625(V) 1750(V)	12.5 8.3 10.5 15.0 17.2	15 11 15 18.5 22	Y160L-4 Y160M-4 Y160L-4 Y180M-4 Y180L-4	33mbar (-0.098MPa)	465 340 415 510 535	7.8 5.7 6.9 8.5 8.9	481 437 481 515 533
2BE1 153-0	1450(D) 1100(V) 1300(V) 1625(V) 1750(V)	16.3 10.6 13.6 19.6 22.3	18.5 15 18.5 22 30	Y180M-4 Y160L-4 Y180M-4 Y180L-4 Y200L-4	33mbar (-0.098MPa)	600 445 540 660 700	10.0 7.4 9.0 11.0 11.7	533 480 533 551 601
2BE1 202-0	970(D) 790(V) 880(v) 1100(V) 1170(V) 1300(V)	17 14 16 22 25 30	22 18.5 18.5 30 30 37	Y200L2-6 Y180M-4 Y180M-4 Y200L-4 Y200L-4 Y225S-4	33mbar (-0.098MPa)	760 590 670 850 890 950	12.7 9.8 11.2 14.2 14.8 15.8	875 850 850 940 945 995
2BE1 203-0	970(D) 790(V) 880(V) 1100(V) 1170(V) 1300(V)	27 20 23 33 37 45	37 30 30 45 45 55	Y250M-6 Y200L-4 Y200L-4 Y225M-4 Y225M-4 Y250M-4	33mbar (-0.098MPa)	1120 880 1000 1270 1320 1400	18.7 14.7 16.7 21.2 22.0 23.3	1065 995 995 1080 1085 1170
2BE1 252-0	740(D) 558(V) 660(V) 832(V) 885(V) 938(V)	38 26 31.8 49 54 60	45 30 37 55 75 75	Y280M-8 Y200L-4 Y225S-4 Y250M-4 Y280S-4 Y280S-4	33mbar (-0.098MPa)	1700 1200 1500 1850 2000 2100	28.3 20.0 25.0 30.8 33.3 35.0	1693 1460 1515 1645 1805 1805
2BE1 253-0	740(D) 560(V) 660(V) 740(V) 792(V) 833(V) 885(V) 938(V)	54 37 45 54 60 68 77 86	75 45 55 75 75 90 90 110	Y315M-8 Y225M-4 Y250M-4 Y280S-4 Y280S-4 Y280M-4 Y280M-4 Y315S-4	33mbar (-0.098MPa)	2450 1750 2140 2450 2560 2700 2870 3020	40.8 29.2 35.7 40.8 42.7 45.0 47.8 50.3	2215 1695 1785 1945 1945 2055 2060 2295
2BE1 303-0	740(D) 590(D) 466(V) 521(V) 583(V) 657(V) 743(V)	98 65 48 54 64 78 99	110 75 55 75 75 90 132	Y315L2-8 Y315L2-10 Y250M-4 Y280S-4 Y280S-4 Y280M-4 Y315M-4	33mbar (-0.098MPa)	4000 3200 2500 2800 3100 3580 4000	66.7 53.3 41.7 46.7 51.7 59.7 66.7	3200 3200 2645 2805 2810 2925 3290
2BE1 305-1 2BE1 306-1	740(D) 590(D) 490(V) 521(V) 583(V) 657(V) 743(V)	102 70 55 59 68 84 103	132 90 75 75 90 110 132	Y355M1-8 Y355M1-10 Y280S-4 Y280S-4 Y280M-4 Y315S-4 Y315M-4	160mbar (-0.085MPa)	4650 3750 3150 3320 3700 4130 4650	77.5 62.5 52.5 55.3 61.2 68.8 77.5	3800 3800 2950 3000 3100 3300 3450
2BE1 353-0	590(D) 390(V) 415(V) 464(V) 520(V) 585(V) 620(V) 660(V)	121 65 70 81 97 121 133 152	160 75 90 110 132 160 160 185	Y355L2-10 Y280S-4 Y280M-4 Y315S-4 Y315M-4 Y315L1-4 Y315L1-4 Y315L2-4	33mbar (-0.098MPa)	5300 3580 3700 4100 4620 5200 5500 5850	88.3 59.7 61.7 68.3 77.0 86.7 91.7 97.5	4750 3560 3665 3905 4040 4100 4100 4240
2BE1 355-1 2BE1 356-1	590(D) 390(V) 435(V) 464(V) 520(V) 555(V) 585(V) 620(V)	130 75 86 90 102 115 130 145	160 90 110 110 132 132 160 185	Y355L2-10 Y280M-4 Y315S-4 Y315S-4 Y315M-4 Y315M-4 Y315L1-4 Y315L2-4	160mbar (-0.085MPa)	6200 4180 4600 4850 5450 5800 6100 6350	103.3 69.7 76.7 80.8 90.8 98.3 101.7 105.8	5000 3920 4150 4160 4290 4300 4350 4450
2BE1 403-0	330(V) 372(V) 420(V) 472(V) 530(V) 565(V)	97 110 131 160 203 234	132 132 160 200 250 280	Y315M-4 Y315M-4 Y315L1-4 Y315L2-4 Y355M2-4 Y355L1-4	33mbar (-0.098MPa)	5160 5700 6470 7380 8100 8600	86.0 95.0 107.8 123.0 135.0 143.3	5860 5870 5950 6190 6630 6800
2BE1 405-1 2BE1 406-1	330(V) 372(V) 420(V) 472(V) 530(V) 565(V)	100 118 140 170 206 235	132 160 185 200 250 280	Y315M-4 Y315L1-4 Y315L2-4 Y315L2-4 Y355M2-4 Y355L1-4	160mbar (-0.085MPa)	6000 6700 7500 8350 9450 10100	100.0 111.7 125.0 139.2 157.5 168.3	5980 6070 6200 6310 6750 6920

Notes:
1."D" means "Direct drive"; "V" means "V-Belt drive".
2. The motor recommended above can work under most conditions. If the discharge pressure exceeds the scope of 0.02~0.05 Mpa(G), it is necessary to increase the motor power. If the shaft power corresponding with the work pressure of the 2BE series vacuum pump is lower, the motor with lower power closed to the shaft power can be used for saving energy.

Packaging & Shipping

wooden case suitable for sea transport

Our Services

The main characteristics of 2BE1 series products:

All the bearings are the imported products with the brand name of NSK orNTN for ensuring the precise orientation and the high stability during the working of the pump.

The material of the impeller is QT400 nodular iron or stainless steel for ensuring the stability when the pump works under the rigorous condition and can extend the lifetime of the pump.

The casing is made of steel or stainless steel plates to extend the lifetime of the 2BE1 series pumps.

The shaft bushing is made of stainless steel to improve the lifetime of the pump 5 times than the normal material.

The V-belt pulley (when the pump is driven by the belt) is used the high precise pulley with taper bushing to keep the reliability of the pump and extend its life. And it is also easy to mantle and dismantle.

The coupling is used to drive the pump directly. The flexible part connecting the two half coupling is made of polyurethane that makes the pump more reliable.

The unique design to set the separator above the pump saves the space and decreases the noise efficiently.

All the parts are cast by the resin sands that make the pump surface very smooth. It is not necessary to cover the surface of the pumps with putty and gives out the heat efficiently.

The mechanical seals (optional) are used the imported products to avoid the leakage when the pump works for a long time.

Company Information

As an expert in air systems, Greentech has become one of most successful suppliers of blower and vacuum pump in China with more than 20 years experience in R&D and marketing. We have an extensive team of engineers to provide technical back up to all clients as well as a large manufacturing base forblower and vacuum pump.

Our products range from Roots Blowers (also call PD blower), Side Channel Blowers (also call ring blower or regenerative blower), Vacuum Pumps (liquid ring vacuum pump, also call water ring vacuum pump), Multistage Centrifugal Blowers, Single Stage High Speed Centrifugal Blowers, Centrifugal Fans, Industry Pumps, and Electric Products etc.Thanks to the ongoing globalization of our company-group we continually expand our sales and service network. Based on China domestic market, we have exported our products to more than 30 countries and areas, such as USA, Australia, Finland, Russia, Czechs, Ukraine, Korea, India, South Africa, Southeast Asia area, Middle East area etc.

Technological innovation and leadership are key elements for the company's progress. International co-operation on the continuous development of new products, prototyping and tests in real-operating conditions represent our commitment to ongoing research for the most suitable solutions to meet the market requirements. Greentech products are a combination of experience, quality and reliability,and sustainability for a wide array of industries, namely ceramic products, cement products, pneumatic conveying, chemical processing, pharmaceutical, oil and gas, water supply & irrigation, waste water & sewerage treatment, mining, steel, agriculture, electronics, food processing & packaging, marine & shipbuilding etc..

Our primary goal is providing exceptional customer service coupled with innovative products and progressive system solutions.We strive to be a trusted partner for our clients.
