Main features :

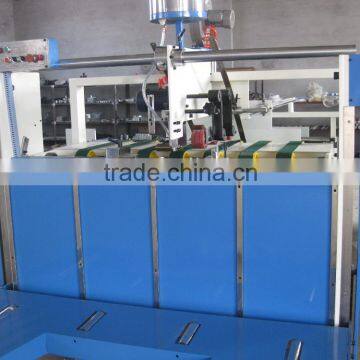

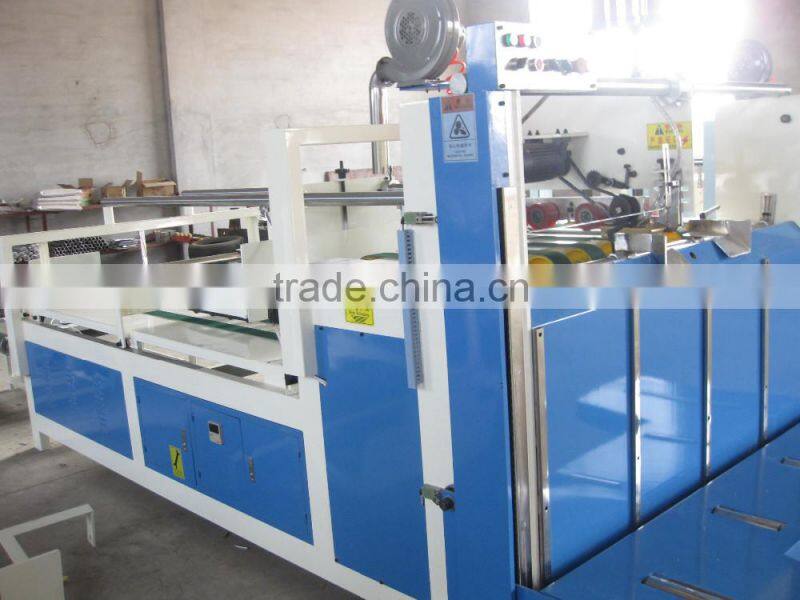

Semi-auto folder gluer is mainly used to produce single face and double face corrugated non-nail cartons. It may meet the demands for multi-kinds and large quantity productions. Especially the packing cartons of food, clothes, medicine and comestic etc.

 1. One minute quickly changes specification.

2. Gluer wheel always keeps running even when the machines stops, which avoids glue drying

and leaking.

3. The working stage goes up and down automatically while the cardboard always stays at

working place.

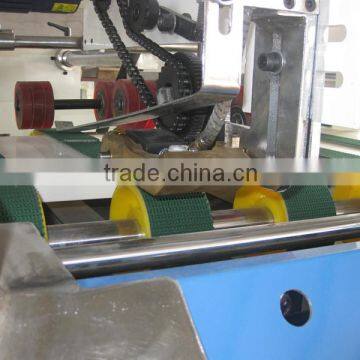

4. Using soft-sunshine wheels to transport cardboard.

5. The cartons are output automatically when they are piled up to installed seat.

6. Speed reducer for gear, press button and switch, stroke switch, photoelectricity switch,

counter,contactor and conveying belt are imported from Taiwan.

7.The whole set of gluing head use imported material and processed precisely. It is abrasion-resistant and Corrosion-resistant.

 Main specifications:

  Main structure:

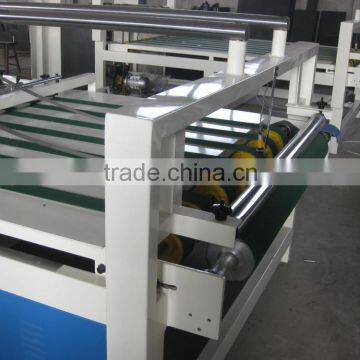

1. It is composed of main frame and two small conveyors ;

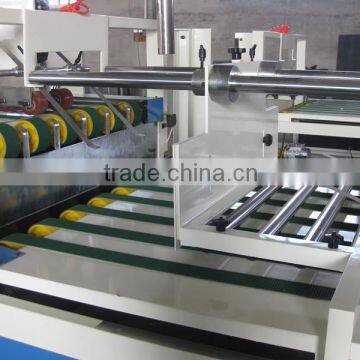

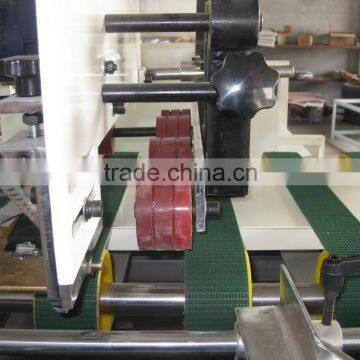

 2. Main frame is composed of lifting work platform,front conveyer equipment,front gluing equipment,middle conveyer equipment,middle paper pressing equipment and electrical control equipment.

 3. The gluing roller adopts wear-resisting alloy materials, the binder box adopts nylon and wear resistant materials, both of them are vulnerable components, so the operating workers have to use clean water to wash it cleanly

 Working principle:

  Put the prepared glue into gluer bucket,press each switch button,when everything is in order,turn on the switch below gluer bucket,enable the glue successfully into the head of gluer,then well remove carton,so one side of the carton can be well-distributed glue when across bottom of the head gluer  while the other side of carton can be firmly joint together after middle press- roll pressing.

 Installation and test:

1. fix the machine,adjust the screws of four corners,update balance and well fix screws.

 2. go through the power line(380v pressure)together with paper conveyor,then lock up screws.

 3. test at entire machine,press the switch on the front, middle and paper conveyor belt.if the conveyor belt would move normally beginning to end,it says the running direction of conveyor belt is all  right.otherwise,it’s best to update power to change running direction.
