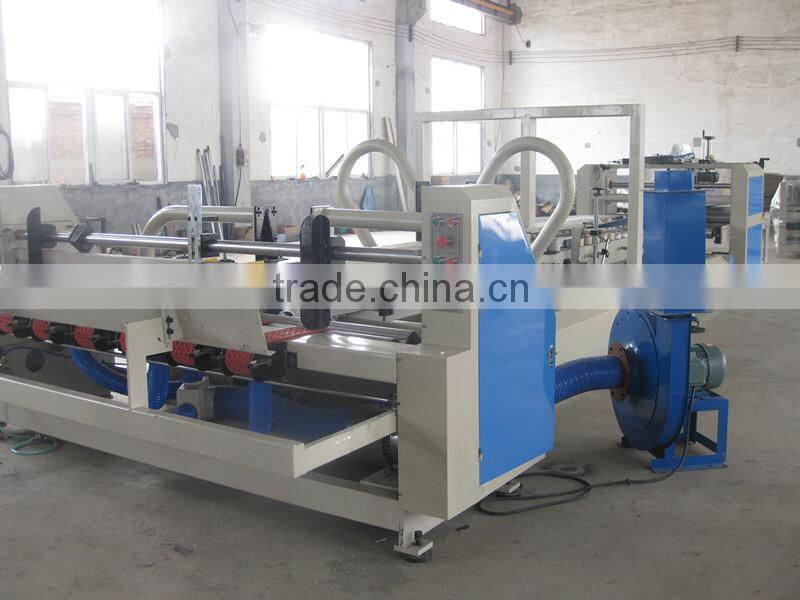

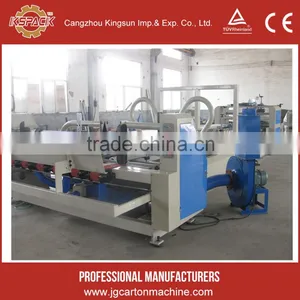

automatic folding gluing machine / automatic gluing machine for rigid box maker
automatic folding gluing machine / automatic gluing machine for rigid box maker

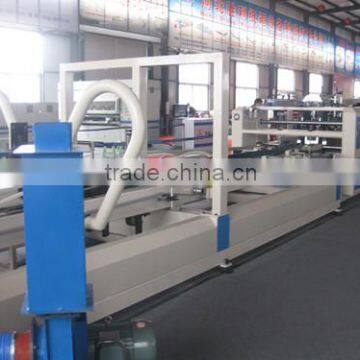

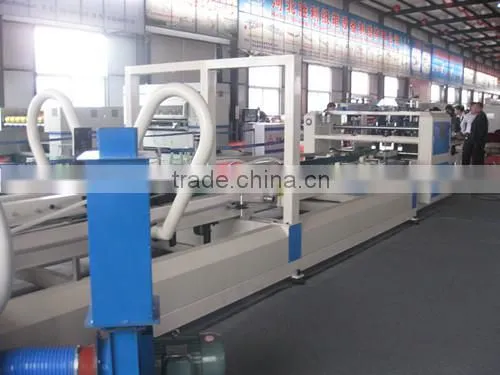

AFG Series automatic folder gluer machine consist of three sections : vacuum feeding section , glue and folding section ,counter and stacker section , frequency conversion motor with quality inverter adjust speed ,PLC&TOUCH screen control system for easy operation and running stable ,average speed 150 sheets/min ,Energy conservation and high speed ,saving labor cost

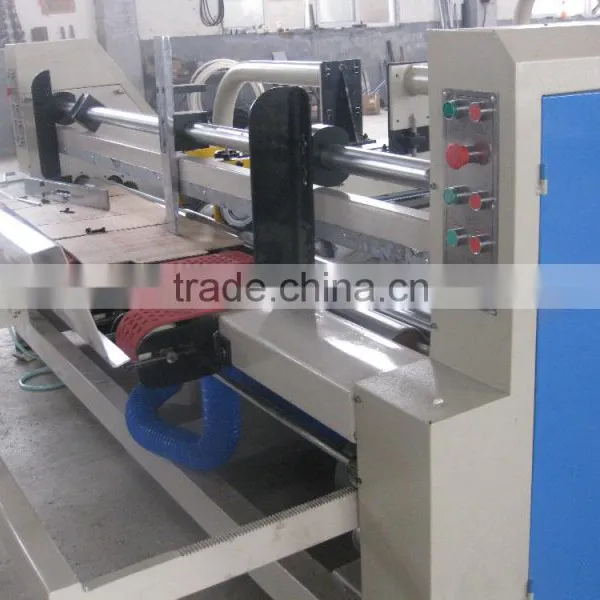

Feeding section :
1.vacuum suction feeding to feed warping paperboard easily
2. quality electromagnetic cluth and brak adopted ,feeding section controled independent ,operation easily
3. scorer wheel adjustable ,suit for 2-8mm thick paperboard
4. second creasing struction can impress again the paperboard which was not creased well

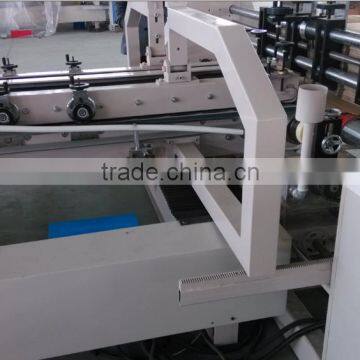

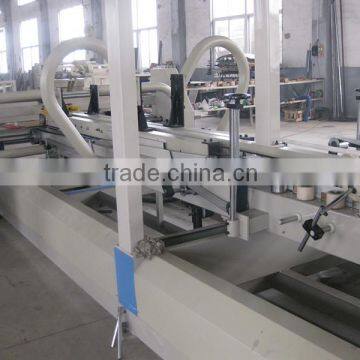

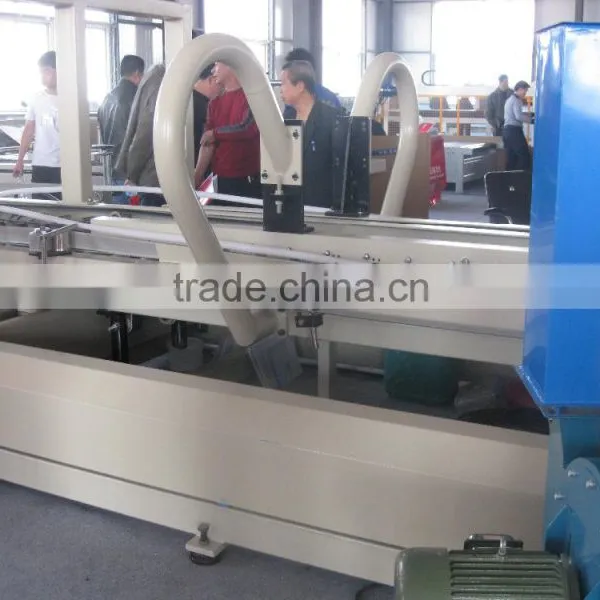

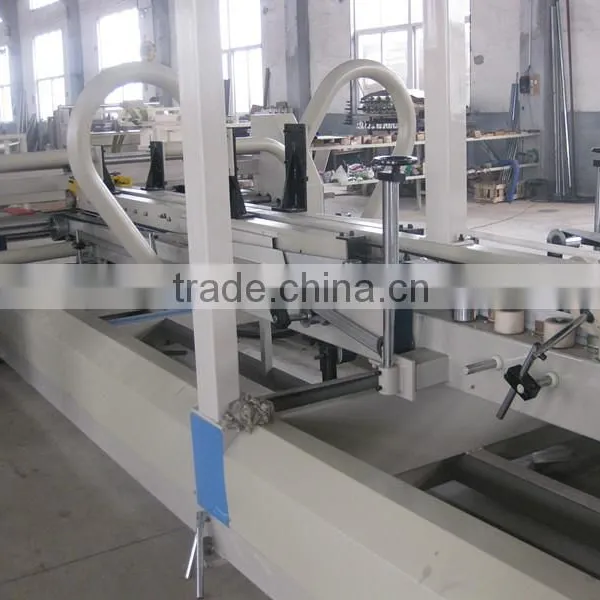

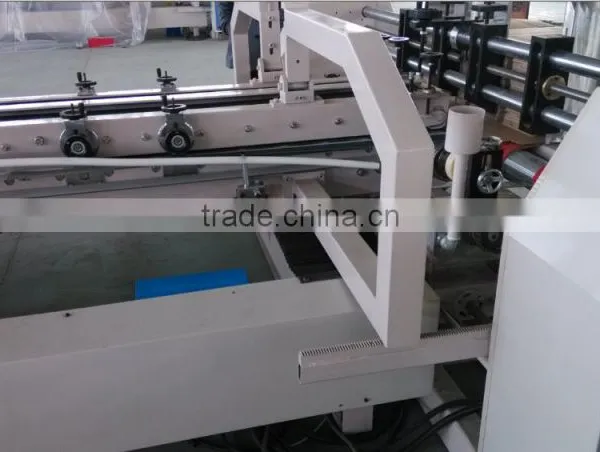

Glue and folding section
1.Simpless structure and high reliablity ,glue quantity adjustable ,cleaning easily ,
2.Stainless steel glue wheel adopted ,long life and saving glue cost ,
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device
Counter and stacker section
1.Stacking and counting are simple and reliable
2.Digital control operation easily and reliable ,no stop put in date and automatic counting
3.With rectification function
4.Paperboard counting and put out by pneumatic stable and quickly
Model |
AFQ2400 |
Max cardboard (mm) |
900X2200 |
Min cardboard |
300X900 |
Dimensions |
11X3X1.6 meter |
Total weight |
6000kg |
Power required |
11.5kw |
Paperboard thickness |
3or 5ply |
Control |
PLC and touch screen |
automatic folding gluing machine / automatic gluing machine for rigid box maker

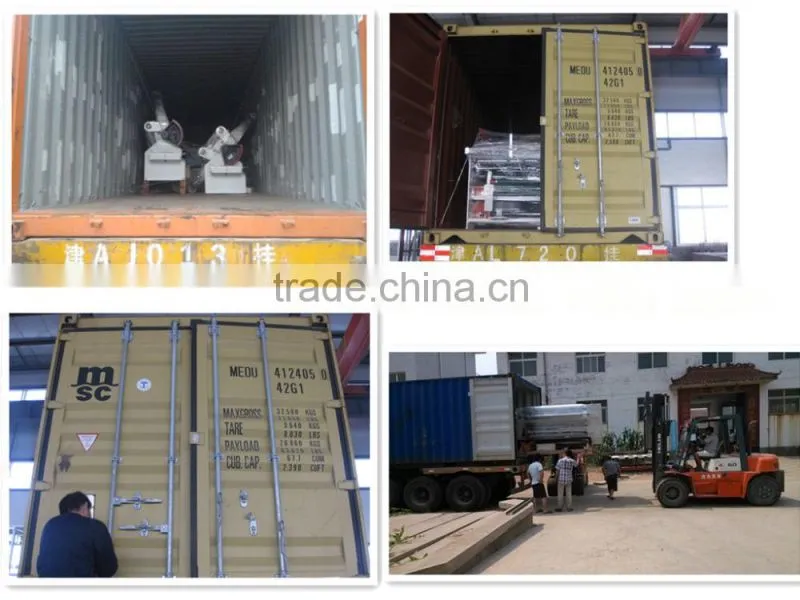

Packing and shipping
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main corrugated box machines and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC control system and motor pump are packed in wooden box with water proof paper coverage
