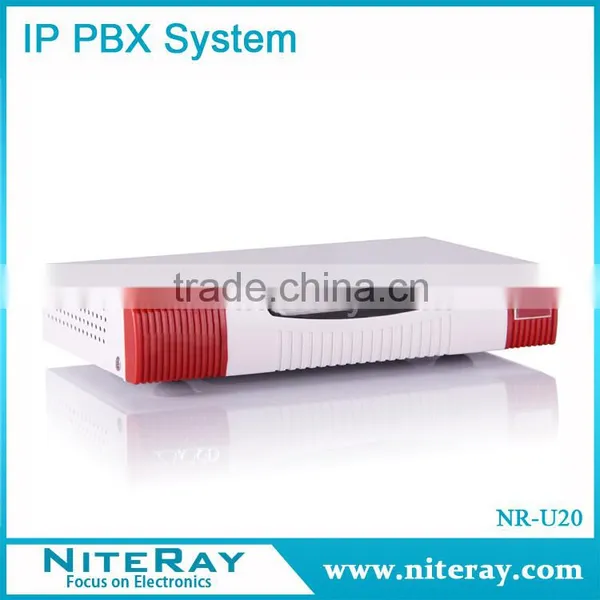

30 IP Phone Extensions Gsm Pbx System With 2 Analog Ports (FXO/FXS)
US$ 309 - 352
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiteRay
Model Number:
NR-U20
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Up to 100 Extensions Mini ip Pbx Gsm Gateway Pbx Quality ChoiceUS$ 468 - 532MOQ: 1 Unit -
Up to 500 Extensions Gsm Pbx Voip Pbx Telephone System Quality ChoiceUS$ 1,232 - 1,400MOQ: 1 Unit
-
Mini ip Telephone Pbx System for Office up To30 IP Phone RegistersUS$ 290 - 360MOQ: 1 Unit
-
30 IP Phone Registers ip Pbx Telephone System for Small BusinessUS$ 290 - 360MOQ: 1 Unit
-
Office Low Voip Pbx System Price Support up to 10 Concurrent Call LegsUS$ 290 - 360MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
NiteRay
Model Number
NR-U20
Type
VoIP Gateway
Specifications
1) 30 IP Phone Registers2) Up to 10 Concurrent Call Legs
3) Fax to Email
4) Voice to Email
5) Monitor and Whisper
30 IP Phone extensions gsm pbx system with 2 Analog Ports (FXO/FXS)
U20 IP Phone System is the second generation of Mini IP Phone System launched by NiteRay, meanwhile it's the first Mobile IP Phone System with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transfer.
U20 is a next-generation smart IP PBX System designed and optimized for today's business telecommunication needs.U20 is an affordable, scalable, interoperable, secure and reliable solution which provides not only traditional PBX features such as Automated Attendant and Voicemail, but also many advanced features including Remote Extensions, Remote Office Connection, Conference Bridge, Call Recording, Call Detail Records (CDR), Automatic Call Distribution (ACD), Unified Messaging (Voicemail to Email), and many more features.
- 30 IP Phone Registers/Extensions & up to 10 Concurrent Call Legs for cost-effective communication
- Fax to Email/Email to Fax
- Voicemail to Email
- Paging and Intercom function strengthens the working efficiency
- Monitor and Whisper
- HD Voice Codec G.722 for perfect voice quality
- Strong security features protect your system from hacking
Hardware Interfaces
- 1 Reset Button
- 1 Power Interface
- 1 Ethernet Interface
- 2 Analog Ports (FXO/FXS)
- 1 GSM/UMTS Interface (Onboard,optional feature)
Hardware Specifications
- Processor: DualCore 500Mhz DSP
- SDRAM: DDR2 128MB
- Storage: 4GB SD Card
- Power Supply: Input AC 100~240V, 50/60Hz; Output DC 12V/1A
Environment
- Working Temperature: 0 ~ 40°C
- Storage Temperature: -20 ~ 55°C
- Humidity: 5 ~ 95% Non-condensing
- *PSTN is not perferctly supported temporarily in UK
| Telephony Configuration | ||
| Model | FXO | FXS |
| U20-A202 | 2 | 0 |
| U20-A211 | 1 | 1 |
GSM or UMTS (3G) is optional for configuration,additional cost as follows:
| Additional Cost for Option Feature | |
| GSM | UMTS(3G) |
| $200 | $260 |
If you want to add GSM or UMTS(3G) module,please kindly inform me to change the price.
| Inner Box Dimension | 320mm*170mm*80mm |
| G.W./Unit | 0.8 kg |
| Carton Dimension | 340mm*330mm*330mm |
| Units/Carton | 10 Units |
| G.W./Carton | 10 kg |
| Comparison Table | ||||
| Item | U20 | U50 | U100 | |
| System Capacity | Concurrent Calls | 10(Max) | 20(Max) | 80(Max) |
| Extension Users | 30 | 100 | 500 | |
|
Voicemail and Recording |
21,000 mins (.gsm) | 21,000 mins (.gsm) | 2,500,000 mins(.gsm) | |
| 3000 mins (.wav) | 3000 mins (.wav) | 270,000 mins (.wav) | ||
| Hardware Capacity | SDRAM | 128MB DDR2 | 256MB DDR2 | 2GB DDR3 |
| Memory (default) | 4GB SD card | 4GB SD card |
500GB HDD or 32GB SSD |
|
| Power Supply | Input | AC 100-240V | AC 100-240V | AC 100-240V |
| Output | DC 12V/1A | DC 12V/2A | N/A | |
| Please click the following image to check the related products. | ||||
| Item | |
|
|
|
| Applicable Module | |||
| Item | CooVox-U20 | CooVox-U50 | CooVox-U100 |
| FXO-200 (2FXO) | √ | × | × |
| FXS-200 (2FXS) | √ | × | × |
| FXOS (1FXO+1FXS) | √ | × | × |
| 4FXO | × | √ | √ |
| 4FXS | × | √ | √ |
| 2FXOS (2FXO+2FXS) | × | √ | √ |
| 1GSM | √ | × | × |
| 2GSM | × | √ | √ |
| 4GSM | × | √ | √ |
| 1PRI (E1/T1) | × | √ (Slot1) | √ |
| 4BRI | × | √ (Slot2) | √ (Slot2) |
| 1UM (UMTS) | √ | √ | √ |
| 32EM (Echo Cancellation) | × | √ | √ |
