IP PABX Telephone System Diagram of a Phone for Office/ Hotel
US$ 1,000 - 1,200
MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Niteray
Model Number:
NR-U100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30 IP Phone Extensions Gsm Pbx System With 2 Analog Ports (FXO/FXS)US$ 309 - 352MOQ: 1 Unit -
Up to 100 Extensions Mini ip Pbx Gsm Gateway Pbx Quality ChoiceUS$ 468 - 532MOQ: 1 Unit
-
Up to 500 Extensions Gsm Pbx Voip Pbx Telephone System Quality ChoiceUS$ 1,232 - 1,400MOQ: 1 Unit
-
Mini ip Telephone Pbx System for Office up To30 IP Phone RegistersUS$ 290 - 360MOQ: 1 Unit
-
30 IP Phone Registers ip Pbx Telephone System for Small BusinessUS$ 290 - 360MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
Niteray
Model Number
NR-U100
Type
VoIP Gateway
Specifications
1) 500 extensions, 80 concurrent calls2) 500G memory space
3) 3g USB dongles
4) FXO/ FXS/GSM module optional
IP PABX Telephone System Diagram of a phone for Office/ hotel
| Introduction: | |
|
U100 IP Phone System is an ideal solution for business with up to 500 extensions and up to 80 concurrent calls.
Adopting theinnovative modular design, it is very convenient to increase telephony ports to expand the system. | |
| Highlights & Features: | |
| |

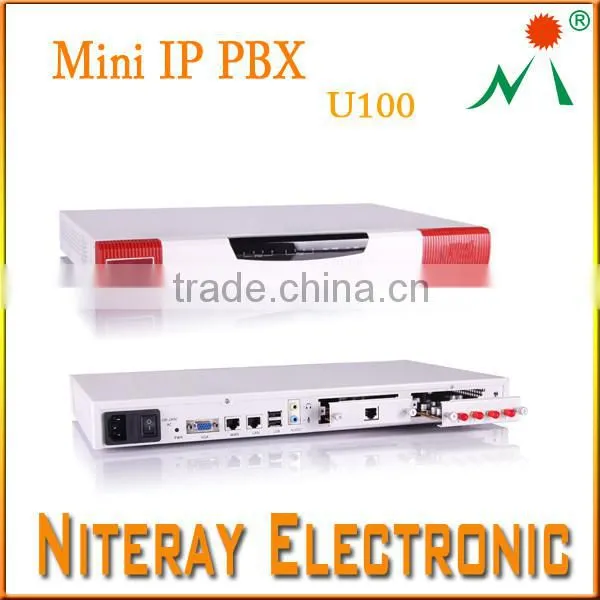

| Picture: | |
| |
| Specification: | |
| System Capacities |
80 Concurrent Call Legs Up to 500 IP Phone Registers/Extensions Recording: 2,500,000 mins (.gsm); 270,000 mins (.wav) Voicemail: 2,500,000 mins (.gsm); 270,000 mins (.wav) |
| Codecs & Protocols |
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX Video Codecs: H.261/H.263/H.263+/H.264 Protocols: SIP (RFC3261)/IAX2 DTMF: RFC2833/SIP INFO/In-Band |
| Network Features | DDNS Client DHCP Server IPv4/IPv6/IEEE802.1Q IP Assignment (PPPoE/DHCP/Static) SNMP v1/v2 TR069 Static Route Table Trouble Shooting (Ping/Traceroute) VPN Client (N2N/L2TP/PPTP/OpenVPN) VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users) |
| Security Features | Refuse SIP Register DoS Refuse Abort Invite DoS Refuse SSH Login DoS Firewall |
| Logs | PBX Log Web Access Log PBX Debug Log |
| Hardware Interfaces | 1 Power Interface 1 Power Switch 2 Ethernet Interfaces (10/100/1000Mbps) 1 VGA Interface 2 Audio Interfaces 2 USB Interfaces 2 Hardware Echo Cancellation Interfaces (Onboard) 1 UMTS Interface for 3G Data (Onboard) 2 Slots for Standard Modules |
| Hardware Specifications |
CPU: DualCore 1.86 GHz ATOM SDRAM: DDR3 2GB Storage: 500GB HDD or 32GB SSD Power Supply: AC 100~240V, 50/60Hz, 1.5A max. |
| Environment |
Working Temperature: 0°C ~40°C Storage Temperature: -20°C~55°C Humidity: 5~95% Non-Condensing |
| Packings | Dimension: 500 × 310 × 90mm |

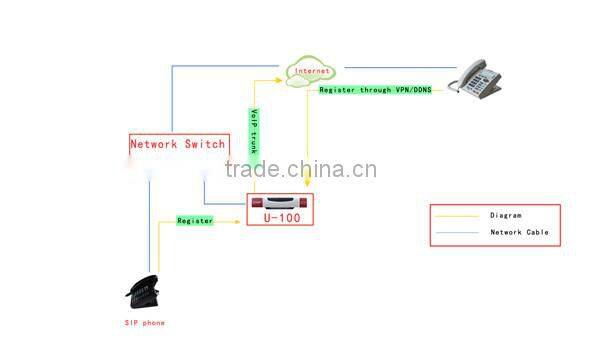

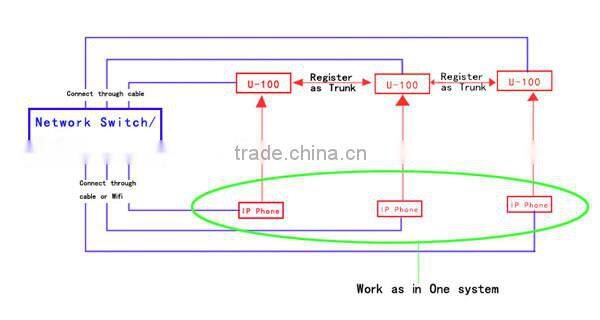

| Application: | |
| |
| |
| | |
| Other models: | |
| |
