Asterisk voip pbx with voip pbx telephone system

Specifications

1.500 IP Phone Registers/Extensions
2.80 Concurrent Call Legs
3.Voicemail to Email
4.Strong security features protect your sy

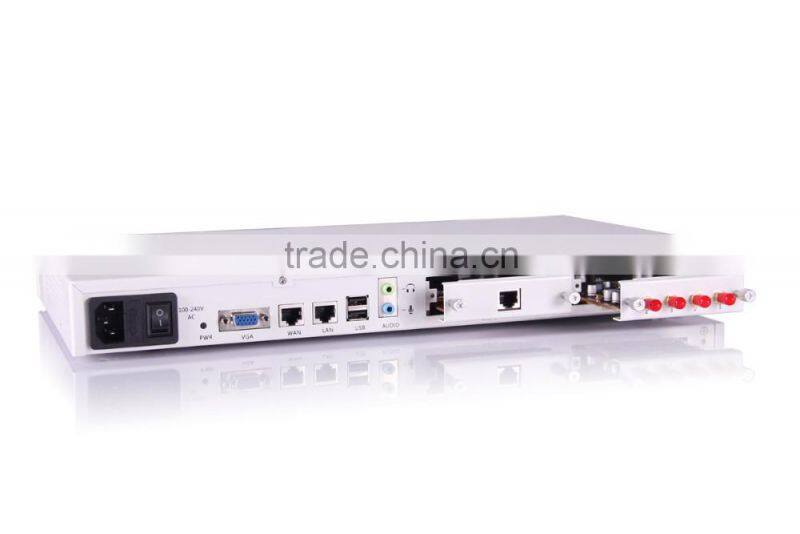

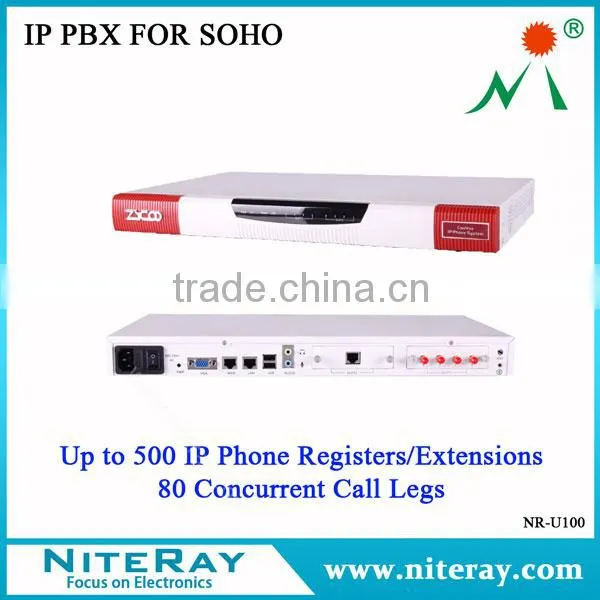

The CooVox-U100 IP Phone System is an ideal solution for business with up to 500 extensions and up to 80 concurrent calls. Adopting the innovative modular design, it is very convenient to increase telephony ports to expand the system. CooVox-U100 supports industry standard SIP trunks, analog PSTN trunks (FXO Module), analog stations (FXS Module), mobile GSM trunks (GSM Module), as well as digital trunks (PRI/BRI Module).

Hightlights & Features

- UP to  500 extensions and up to 80 concurrent calls
- HD Voice Codec G.722 for perfect voice quality
- Fax to Email/Email to Fax
- Voicemail to Email
- Console Port for easy management
- USB Port for expanded storage or 3G network connectivity
- Hardware Echo Cancellation module for great and smooth communication

System Specifications
Call Features		System Capacities
Call Back		80 Concurrent Call Legs
Call Forward		Up to 500 IP Phone Registers/Extensions
Call Group		Recording: 2,5000 mins (.gsm);                 270,000 mins (.wav)
Call Hold		Voicemail: 2,500,000 mins (.gsm);                 270,000 mins (.wav)
Call Paging and Intercom		Codecs & Protocols
Call Park		Audio Codecs: G.722/G.711-Ulaw/                     G.711-Alaw/
Call Pickup		G.726/G.729/GSM/SPEEX
Call Queue		Video Codecs: H.261/H.263/H.263+/H.264
Call Recording		Protocols: SIP (RFC3261)/IAX2
Call Routing		DTMF: RFC2833/SIP INFO/In-Band
Blind Transfer		Network Features
Attended Transfer		DDNS Client
Call Waiting		DHCP Server
Caller ID		IPv4/IPv6/IEEE802.1Q
Dial by Name		IP Assignment (PPPoE/DHCP/Static)
Music On Hold/Transfer		SNMP v1/v2
3-Way Conference		TR069
Video Calls		Static Route Table
		Trouble Shooting (Ping/Traceroute)
PBX Features		VPN Client (N2N/L2TP/PPTP/OpenVPN)
Black List		VPN Server (PPTP/L2TP/OpenVPN, Up to  10 Users)
BLF (Busy Lamp Field)		Security Features
CDR (Call Detailed Record)		Refuse SIP Register DoS
Conference Room (3 Rooms)		Refuse Abort Invite DoS
Call Monitoring		Refuse SSH Login DoS
DID (Direct Inward Dialing Number)		Firewall
DISA (Direct Inward System Access)		Logs
Distinctive Ringtone		PBX Log
DND (Do Not Disturb)		Web Access Log
DNIS (Dialed Number Identification  Service)		PBX Debug Log
Feature Codes		Hardware Interfaces
FOP (Flash Operation Panel)		1 Power Interface
Follow Me		1 Power Interface
IVR (Interactive Voice Responses)		2 Ethernet Interface(10/100/1000Mbps)
Mobility Extension		1 VGA Interface 2 Audio Interfaces
Multi-Language Prompts		2 USB Interface
Multi-Language GUI		2 Hardware Echo Cancellation Interfaces  (Onboard)
One Touch Recording		1 UMTS Interface for 3G Data (Onboard)
Phone Book		Slot 1 for ZYCOO Analog/GSM/PRI/BRI  Module
Phone Provisioning		Slot 2 for ZYCOO Analog/GSM Module
Pin Set		Hardware Specifications
Record File Download		Processor: DualCore 500MHz DSP
Ringgroup		SDRAM: DDR2 256MB
SIP Register with UDP/TCP/TLS		Storage: 4GB SD Card
SIP Trunk		Power Supply: Input AC 100~240V, 50/60Hz;
Skype for SIP		Output DC 12V/2A
Smart DID		Environment
Speed Dial		Working Temperature: 0°C ~40°C
Spy		Storage Temperature: -20°C~55°C
SRTP (Secure Realtime Transport  Protocol)		Humidity: 5~95% Non-Condensing
T.38 Fax (Pass-through)		Packings
Time Based Rule		Dimension: 500 × 310 × 90mm
Virtual Fax		Weight/Unit: 4.8kg
Voicemail & Voicemail to Email
