3g 4g Wireless Router Configuration With Sim Card Slot Long Range Routers
Specifications
1) Cellular Router2) Single sim
3) LAN RJ45*1+WAN RJ45*1/ LAN RJ45*2
4) Cellular/WAN RJ45/WiFi Client supports cold failover
Product Brief

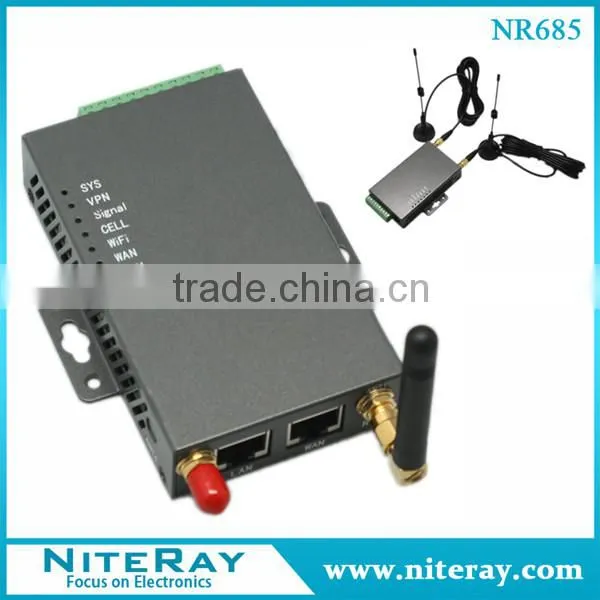

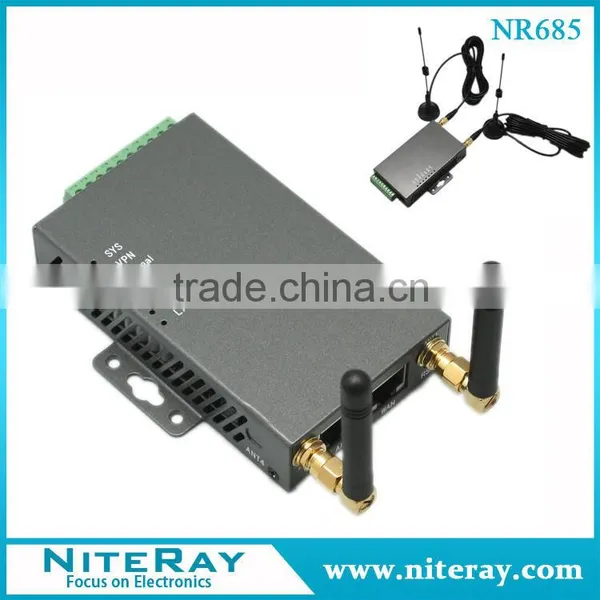

The H685 series Cellular Router designed for establish a 2G/3G/4G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection. The H685 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the Internet using a cellular network. By connect to cellular mobile network; an Internet connection can be accessed and shared virtually anywhere within a wireless broadband network.
E-Lins’ mobile data products are widely used in more than 50 countries and regions, and more than twenty industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
Main Feature
Industrial class,with sim card slot
Interface:1 RJ45 LAN Port + I/O port
Optional additional port: RS232 or RS485 port

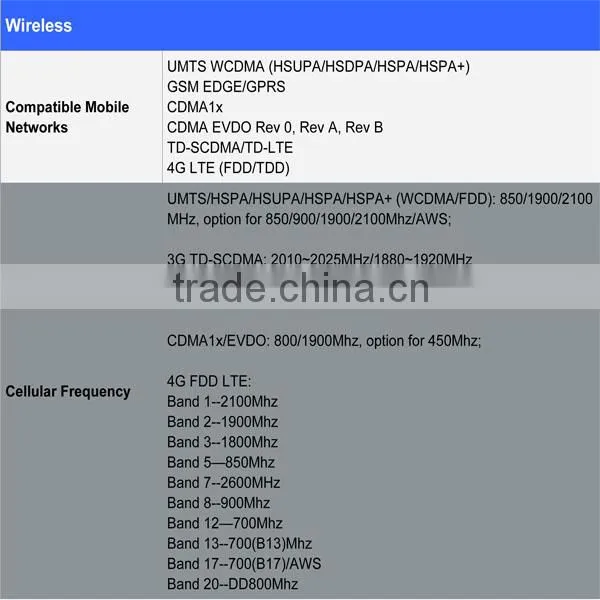

Band: UMTS HSDPA/HSUPA/HSPA/HSPA+: 2100Mhz or 850/1900/2100Mhz or 850/900/1900/2100Mhz
EDGE/GPRS/GSM: 850/900/1800/1900Mhz
LTE: 700(B17)/AWS or 800/900/1800/2100/2600MHz or 700(B13)MHz
CDMA/EVDO: 800/1900Mhz, or 450Mhz
VPN(PPTP,L2TP,IPsec,GRE),SNMP
DDNS, DHCP, NAT/NAPT,Web,Auto-dial,always online,watch-dog
Option feature

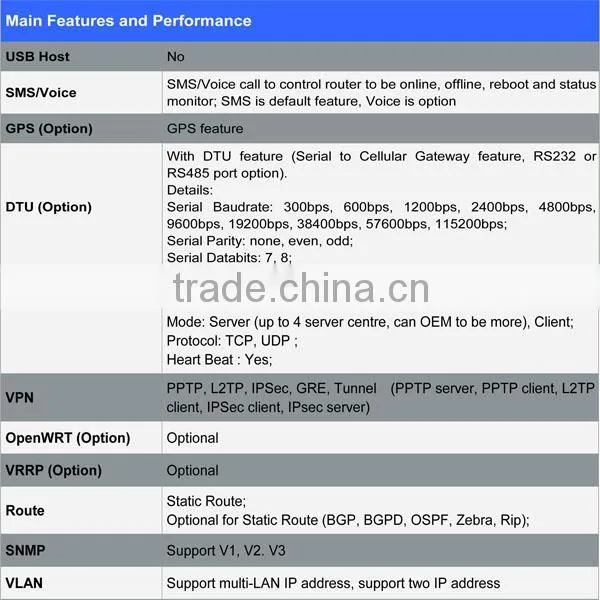

1) Serial port for DTU feature (Serial to Cellular Gateway)
2) WiFi 802.11b/g/n (working as AP and Bridge Repeater)
3) GPS
4) POE

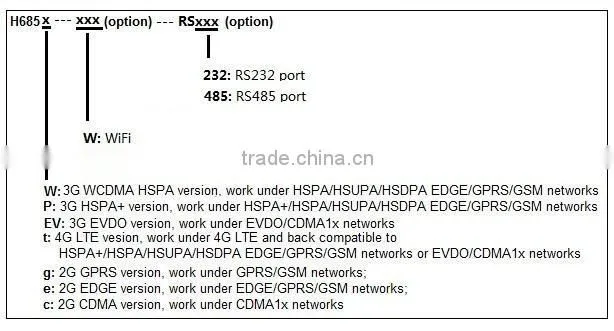

We have 4G LTE/3G HSPA+/3G HSPA(HSUPA HSDPA)/3G CDMA2000 EVDO version, please contact us freely if the quoted version is not the one you need.
Dual H685 Application Combination type | |
H685-1 |
H685-2 |
Network A |
Network B |
Network A |
Network A |
|
It means H685-1 and H685-2 can be same network, also can be different network. Network A can be any one of GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA/HSPA+/4G LTE/CDMA1x/EVDO; Network B can be any one of GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA/HSPA+/4G LTE/CDMA1x/EVDO; Please specify with us which network you will use before order. | |

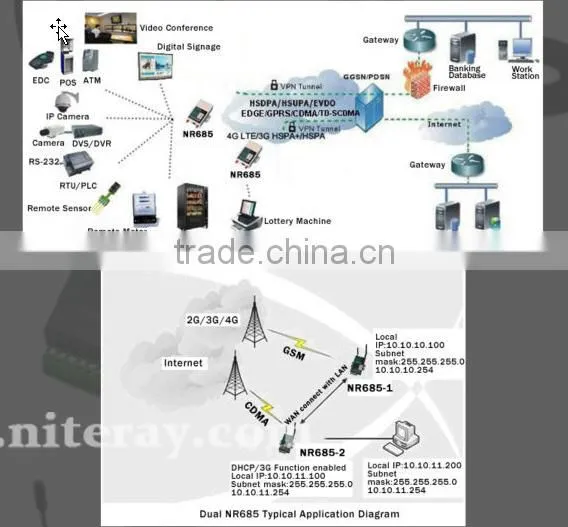

Typical Diagram for NR685 Router in Wireless M2M
>>| Industrial Application
Remote Data Monitor and Control
CCTV, security surveillance
Water, gas and oil flow metering and schedule
AMR (automatic meter reading)
Power station monitoring and control Remote POS (point of sale) terminals, ATM,
Traffic signals monitor and control, Traffic info guidance
Oil field, weather forecast, environmental protection, street lamp monitoring and control
Early Warning of Mountain Torrent
Fleet management Power distribution network supervision
Central heating system supervision
Weather station data transmission
Hydrologic data acquisition
Vending machine Telemetry, SCADA
Vehicle logistics and diagnostics controlling
Parking meter and Taxi Monitor
Telecom equipment supervision (Mobile base station, microwave or optical relay station)
