4g Router 4g Lte Router 3g Sim Card Pocket Wifi Router

4g Router 4g Lte Router 3g Sim Card Pocket Wifi Router thumbnail-1
4g Router 4g Lte Router 3g Sim Card Pocket Wifi Router photo-1
US$ 200 - 320 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Other, Industrial
Contact Supplier Request Quote Chat Now
Shenzhen NiteRay Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
H K/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wireless
Application Other, Industrial
Function VPN
Certification CE
Brand Name Niteray
Model Number NR685
Place of Origin Guangdong, China

Specifications

1) Cellular 3G/4G wireless wifi industrial Router
2) Single sim card slot
3) LAN RJ45*1+WAN RJ45*1/ LAN RJ45*2

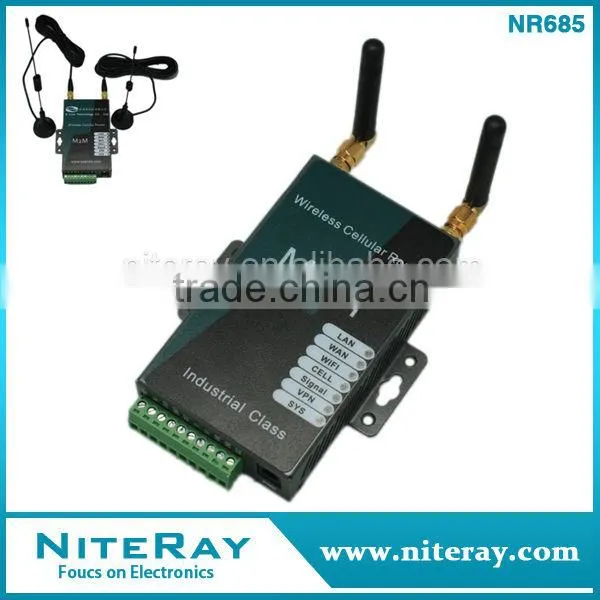

                             Industrial 3G/4G wireless wifi router

Product Introduction

The H685 series Cellular Router designed for establish a 2G/3G/4G cellular and WiFi wireless network and share a cellular broad band Internet connection. The H685 series Cellular Router enables users to quickly create a secure WiFi (802.11 b/g/n) network and provide access to the Internet using a cellular network. By connect to cellular mobile network; an Internet connection can be accessed and shared virtually anywhere within a wireless broadband network.mobile data products are widely used in more than 50 countries and regions, and more than twenty industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

4g router 4g lte router 3g sim card pocket wifi router



Industrial Application

( 3G/4G wireless router design for industrial application)



l Remote Data Monitor and Control

l CCTV, security surveillance

l Water, gas and oil flow metering and schedule

l AMR (automatic meter reading)

l Power station monitoring and control

l Remote POS (point of sale) terminals, ATM,

l Traffic signals monitor and control, Traffic info guidance

l Oil field, weather forecast, environmental protection, street lamp monitoring and control

l Early Warning of Mountain Torrent

l Fleet management

l Power distribution network supervision

l Central heating system supervision

l Weather station data transmission

l Hydrologic data acquisition

l Vending machine

l Telemetry, SCADA

l Vehicle logistics and diagnostics controlling

l Parking meter and Taxi Monitor

l Telecom equipment supervision (Mobile base station, microwave or optical relay station)

 Specification



Wireless
Compatible Mobile Networks UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+)
GSM EDGE/GPRS
CDMA1x
CDMA EVDO Rev 0, Rev A, Rev B
TD-SCDMA/TD-LTE
TD-SCDMA/TD-LTE
Cellular Frequency UMTS/HSPA/HSUPA/HSPA/HSPA+(WCDMA/FDD):850/1900/2100 MHz, option for 850/900/1900/2100Mhz/AWS;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
4G FDD LTE:
Band 1--2100Mhz
Band 2--1900Mhz
Band 3--1800Mhz
Band 5—850Mhz
Band 7--2600MHz
Band 8--900Mhz
Band 12—700Mhz
Band 13--700(B13)Mhz
Band 17--700(B17)/AWS
Band 20--DD800Mhz

4G TDD LTE:
Band 40 -- 2300Mhz
Band 39 – 1900Mhz
Band 38--2600Mhz
Bandwidth HSPA+: Downlink 21/42Mbps, Uplink 5.76Mbps;
HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps;
GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
CDMA1x: Downlink/Uplink 153.6kbps;
CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink
Rev O: 2.4Mbps downlink, 153.6kbps uplink
4G LTE: Max. 100Mbps downlink, 50Mbps uplink
3G TD-SCDMA: 2.8Mbps
Main Features and Performance
SMS/Voice SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option
GPS (Option) GPS (Option)
DTU (Option) With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).
VPN PPTP, L2TP, IPSec, GRE, Tunnel(PPTP server, PPTP client, L2TP client, IPSec client, IPsec server)
OpenWRT (Option) OpenWRT (Option)
VRRP (Option) VRRP (Option)
SNMP Support multi-LAN IP address, support two IP address
Wi-Fi Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional.
Can be used as AP and client;
Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users
POE Optional for LAN/WAN RJ45
DHCP Server Yes
Interface
LAN/WAN 1X 10/100M LAN port (RJ45 interface)
1X 10/100M WAN port (RJ45 interface)
(WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)
WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)
Antenna 2 antenna for Wi-Fi (detachable, SMA interface * 1, Internal *1)
3 antenna for Cellular and GPS (detachable, 50Ω SMA female interface), Cellular support diversity receiving (MIMO) option



  4g router 4g lte router 3g sim card pocket wifi router
