Function Signal Generator

Function Signal Generator thumbnail-1
Function Signal Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TC
Model Number:
TC1641B1
Contact Supplier Request Quote Chat Now
Zhejiang Winchoice Imp./Exp. Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name TC
Model Number TC1641B1

Specifications

LSI circuitry
*Displaying output amplitude (3 LEDs) and output frequency (max. 5 LEDs) simultaneously

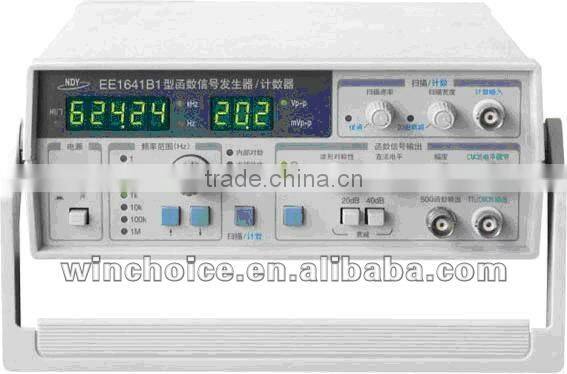

1. TC1641B1 Function Signal Generator /Frequency Counter

Function signal generator

Main Specifications:

*Output frequency:0.2Hz~3/10/15MHz

*Output amplitude:10Vp-p(50Ω)   20Vp-p(1MΩ)

*Output waveform: 7 waveforms including sine, triangle, square etc.

*Central level and duty cycle adjustable.

*Square wave edge:≤30ns

*Sine distortion:≤1%

*Output impedance:50Ω(function),600Ω(TTL synchronous output)

*TTL/CMOS output(3V~15V level adjustable)

*Output signal attenuation:0dB/20dB/40dB/(20+40)dB

*Frequency range of the frequency counter:0.2Hz~20MHz

*Size and weight:240×220×80(mm)3, 2kg



Main Features:

*LSI circuitry

*Displaying output amplitude (3 LEDs) and output frequency (max. 5 LEDs) simultaneously

*Used as a 20MHz frequency counter(equal-accuracy measurement)

*Multiple output method (fixed frequency, internal/external sweep frequency, single pulse)

*Self-provided TTL/CMOS level adjustable output

*Overall output protection, unique flashing alarm at wrong connection

*SMT technology, portable structure design



*DC level adjustable
