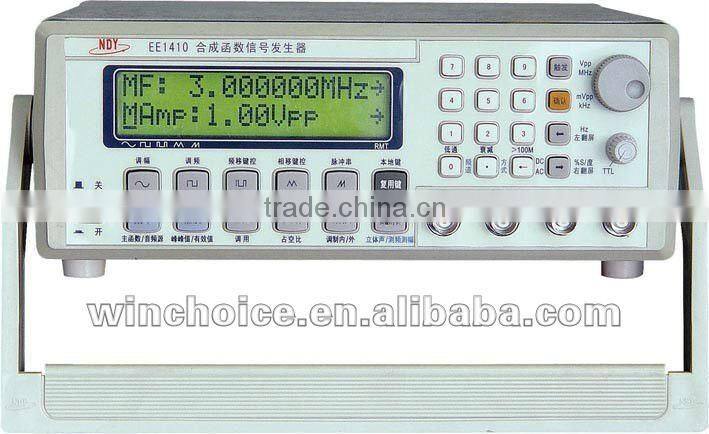

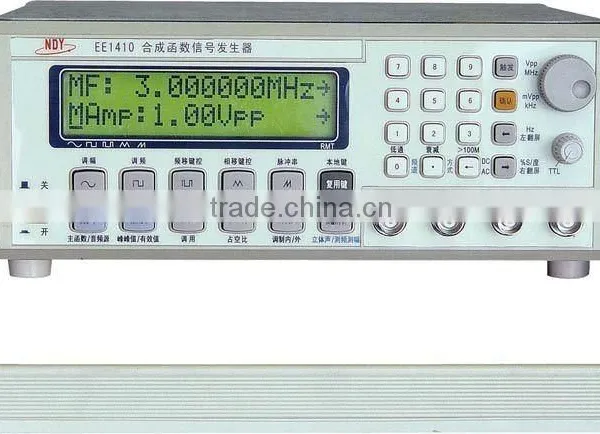

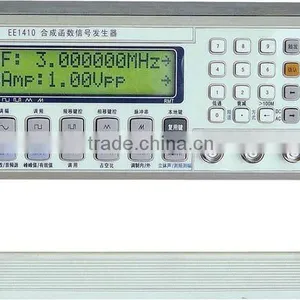

TC1410 Synthesized Generator

Specifications

1.TC1410 DDS Synthesized Function Generator

Main Specifications:

*Output Frequency:Range:0.01Hz~3/6/10/30/50MHz(Sine)        10mHz~3/10 MHz(Square)

Resolution:0.01Hz       Stability:2.5ppm

*Output Waveform:All standard function waveforms

*Output Form:Fixed frequency, sweep frequency, AM, FM, TTL/CMOS

*Output Level:2mVp-p~20Vp-p(1MΩ,≤10MHz),~6Vp-p(1MΩ,≤30MHz),~3Vp-p(1MΩ,>30MHz)

*Modulation Form:int. /ext. FM, int./ext AM, BURST,FSK,BPSK

*Sine Distortion:<0.15%(≤100kHz,≥10Vp-p)

*Duty Cycle:10%~90%(<1MHz)

*Square Edge:≤28ns

*Display:16-digit LCD

Main Features:

*DDS and CPLD techniques

*High reliable SMT technology

*Independent digit keys + rotary coder ensure simpler operation

*Independent front panel TTL/CMOS level adjustable output

*Less distortion and more convenient recalling of stored data

*Wholly adjustable central level

*More functions to choose:100MHz frequency counter, independent 50Hz fixed frequency output,RS232 programmable interface

*Size 240×293×90(mm)³, Weight about 2.5kg
