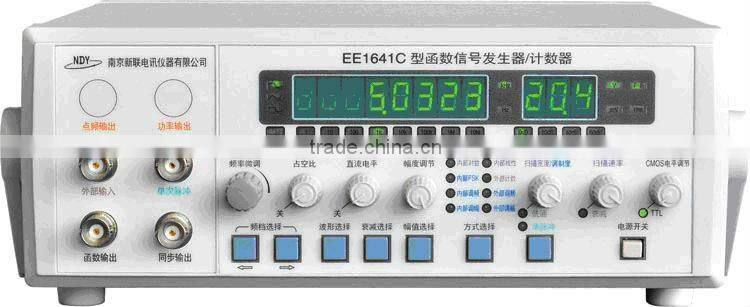

Function Generator

Function Generator thumbnail-1
Function Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TC
Model Number:
TC1641C/TC1642C/TC1642C1/TC1643C
Contact Supplier Request Quote Chat Now
Zhejiang Winchoice Imp./Exp. Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name TC
Model Number TC1641C/TC1642C/TC1642C1/TC1643C

Specifications

*LSI Circuitry
*SMT Technology, portable structures
*Simultaneously displaying of frequency (Max.8 digits) and amplitude

2. TC 1641C/TC1642C/TC1642C1/TC1643C



Function Generator/Frequency Counter



Function Generator

Main Specifications:

*Output Frequency: 0.3Hz~5MHz (EE1641C)

               0.3Hz~10MHz (TC1642C)

               0.3Hz~15MHz (TC1642C1)

               0.3Hz~20MHz (TC1643C)
*Output Amplitude: 10V p-p (50Ω) 20V p-p (1MΩ)

*Output of seven waveforms including sine, triangle, and square waves available.

*Duty cycle of output waveforms adjustable .

*Adjustment range of output DC level:        -5V~+5V (50Ω)    -10V ~+10V (1MΩ)

*Square Edge: ≤ 20ns

*Sine Distortion: ≤ 1%

*Output Impedance: 50 Ω(function)   600 Ω(synchronized)

*Attenuation of Output signals: 0dB/20dB/40dB/60dB

*Frequency Counter Measurement Range: 0.2Hz~100MHz

*Output of single pulse available

*Fixes Frequency Output: 50Hz (optional)

*Power Output : 10W/4Ω(optional)

*Size and Weight: 240x295x90 (mm), 3.5kg



Main Features

*LSI Circuitry

*SMT Technology, portable structures

*Simultaneously displaying of frequency (Max.8 digits) and amplitude

(3 digits),amplitude units switchable (Vp-p/Vrms)

*Multiple Modulation Forms: AM, FM, FSK, Log/linear sweep

*TTL/CMOS Synchronized Output and CMOS Level Adjustable

*To be used as a frequency counter (10MHz equal-accuracy Counter)

*RS-232 Interface (optional)

*Overall Output Protection and Error Alarm for Main Function Output
