Home > Instruments & Meters > Electronic Instrument > Signal Generator > TC3386A/B Universal Counter

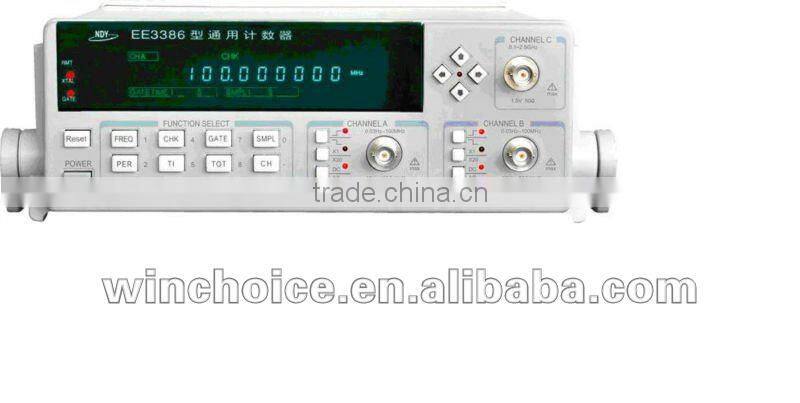

TC3386A/B Universal Counter

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

TC3386A/B

Contact Supplier Request Quote Chat Now

Zhejiang Winchoice Imp./Exp. Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name TC

Model Number TC3386A/B

Specifications

*Period measurement range:100ns~40s
*Time interval measurement range:20ns~40s

2. TC3386A/B Series Universal Counter

Main Specifications:

*Functions:Frequency measurement, period measurement, counting, frequency ratio, self-check, statistic computing (Series B only)

*Frequency measurement range:0.025Hz~100MHz (main frame of the basic model)

0.025Hz~500MHz ( model 05)

0.025Hz~1000MHz (Model 10)

0.025Hz~2.5GHz (Model 25)

0.025Hz~6GHz (Model 60)

0.025Hz~12.4GHz (Model 120)

*Period measurement range:100ns~40s

*Time interval measurement range:20ns~40s

*Sensitivity in RMS:30mVrms(DC input, adjusting trigger level,<100MHz).

High sensitivity:-30dBm(2.4GHz and 5.8GHz frequency band)

*Dynamic Range:50mVrms~1Vrms

*Coupling Mode:AC/DC for Channels A, B; AC for Channel C

*Input Impedance:1MΩ//45pf or 50Ω

*Trigger level:±1.5V adjustable in 30mV steps

*10-digit VFD all function display

*Time base:100MHz(10ns), daily stability better than ±1×10^-8/d

*Optional (1~5)×10^-9/d high stability crystal oscillator

*Simulation interpolation option,The model EE3386A1,Frequency measurement resolution:11/sec,Time measurement resolution:100ps, 12VFD display,Time Base Stability:1×10^-9/d

*Size and weight:320×280×94(mm)³, 2.8kg

Main Features:

*Microcomputer controlled, developed with CPLD and modular design

*100MHz synchronous equal-accuracy measurement mode

*SMT technology and newly miniature structures design

*New VFD display; statistic function available to display max. value, min. value, mean value, deviation, standard deviation, Allan Variance, etc.

*Standard RS-232 interface, optional GP-IB interface

*The high sensitivity model allows non-contact measurement
