Specifications
*Period Measurement Range:10ns~10000s*Time Interval Measurement Range:100ns~7000s

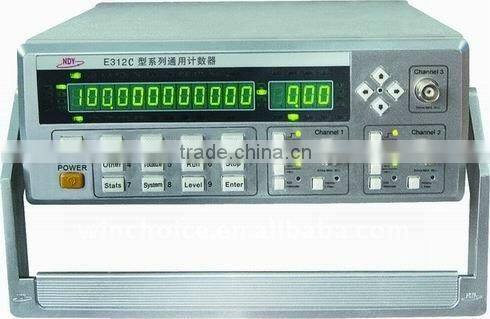

TC312 C Series Universal Counter
Main Specifications:
*Functions:Frequency measurement, Period measurement, Counting, Frequency ratio,Time interval,Pulse width,Duty cycle,Phase,Totalize,Rotational speed, Peak Volts, Mathematics calculation and statistics(MAX,MIN, Average, Standard deviations, Allan variance etc.)
*Frequency Measurement Range:0.025Hz~100MHz (main frame of basic model)
0.025Hz~1000MHz (Model 10)
0.025Hz~3000MHz (Model 30)
0. 025Hz~6000MHz (Model 60)
*Period Measurement Range:10ns~10000s
*Time Interval Measurement Range:100ns~7000s
*Sensitivity in RMS:30mVrms(DC input, adjusting trigger level, <100MHz
*Dynamic Range:15mVrms~3Vrms
*Coupling Mode:AC/DC for Channels1, 2; AC for Channel 3
*Input Impedance:1MΩ//30pf or 50Ω
*Trigger Level:±2.5V adjustable in 5mV steps
*12-digit LED all-function display
*Time Base:10MHz (100ns) OCXO, stability:better than ±1×10-8/d
*Size and weight:240×230×90(mm)3, 1.5kg
Main Features:
*Microcomputer controlled, designed with LSI circuits
*10MHz equal-accuracy measurement mode
*SMT technology brand new miniature structure design
*High reliability
