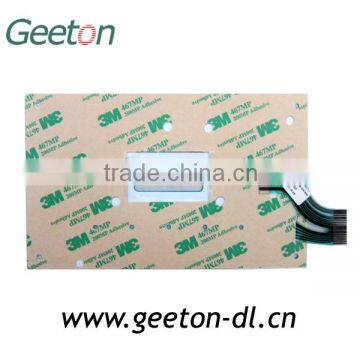

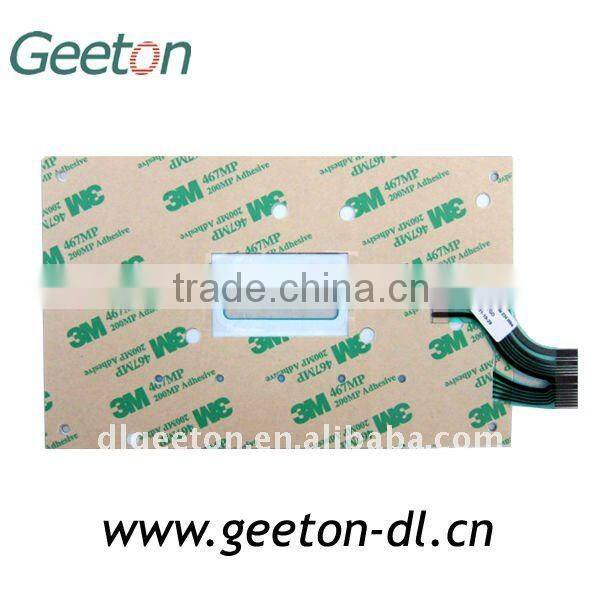

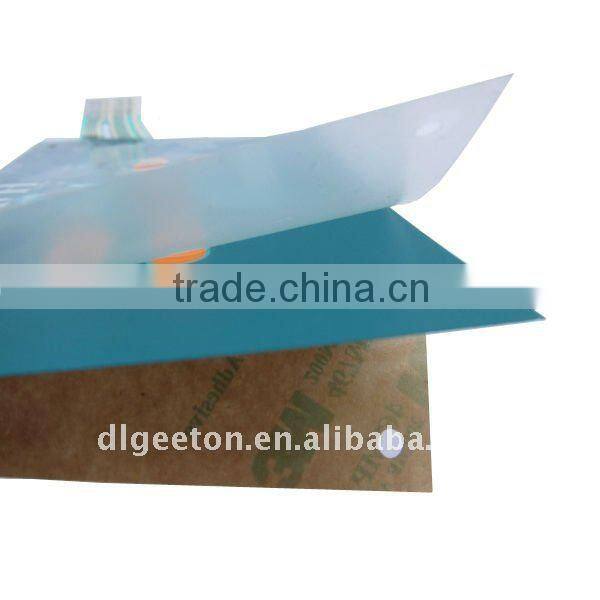

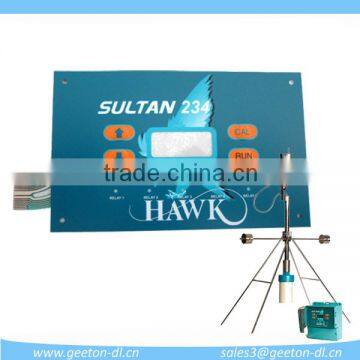

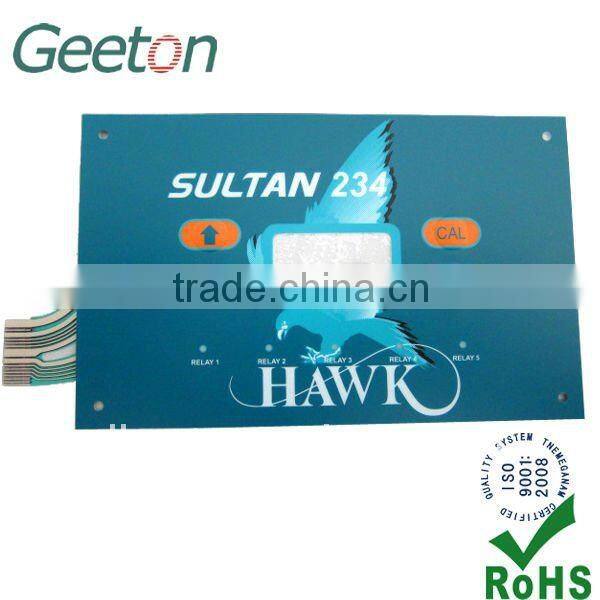

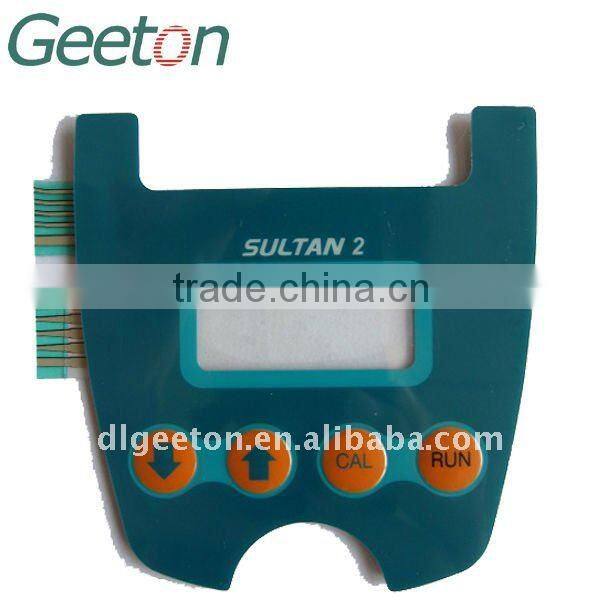

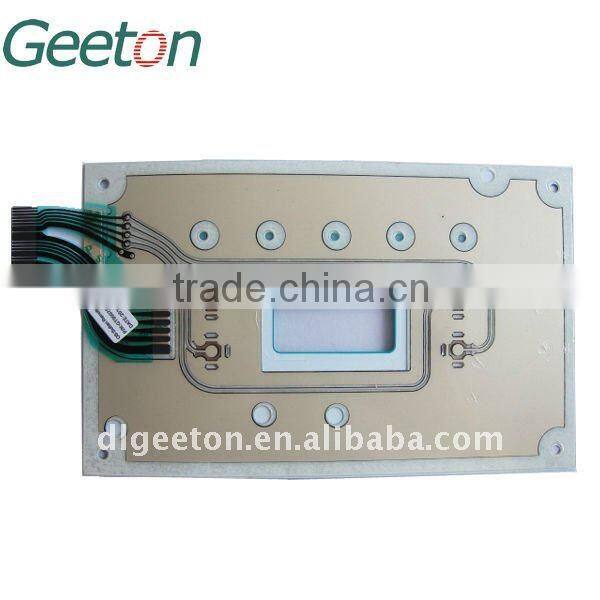

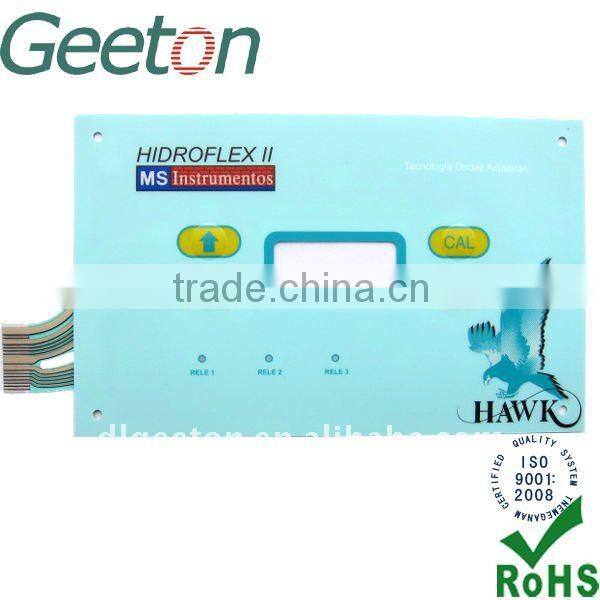

Membrane Switch
Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch and nameplate, and we have established more than five years’ stable business partnership with Panasonic, TOSHIBA, OMRON, SANYO and other international well-known enterprises.
NO. |
Material |
Adhesive |
Feature |
Lead Time |
Shipment |
Payment terms |
MOQ |
Unit Price |
|
Sample |
Products |
||||||||
GMS-235 |
AUTOTEX F150 |
3M 467 |

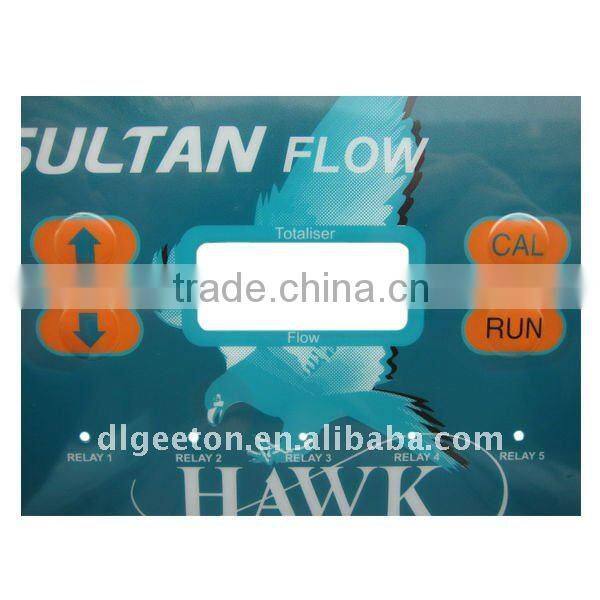

Embossing Overlay, Metal Dome |
12 Workdays |
10 Workdays |
Express/Air |
T/T,L/C |
100 pcs |
$2.5~4.5/pc |
OEM service offered. Design service offered. Buyer label offered. | |||||||||
Membrane Switch Performance:
Components |

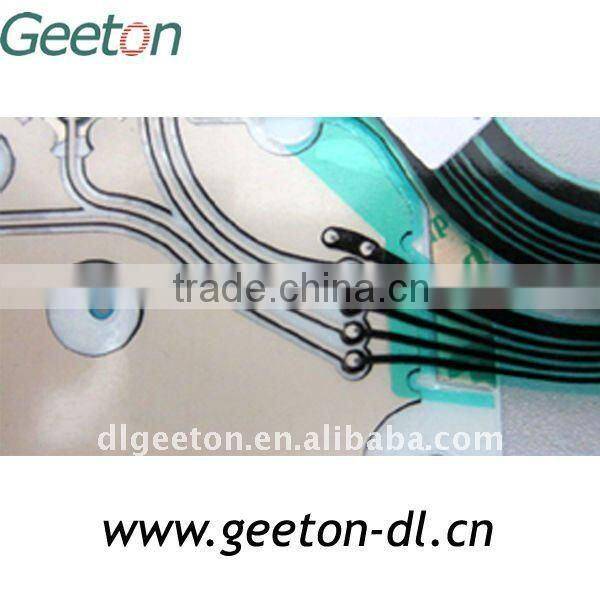

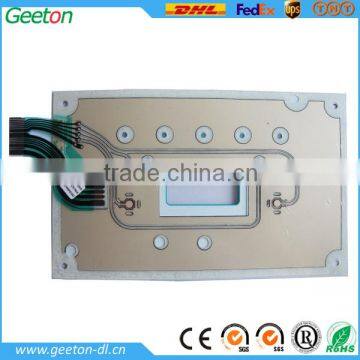

Metal domes, male connector and printed circuit |
Electronic characteristics | |
Circuit rating |
35V(DC),100mA,1 W |
Contact resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance |
>100MΩ 250V(DC) |
Contact bounce |
≤5ms |
Dielectric withstand |
250VRms(50 - 60Hz/1 min) |
Life expectancy |
flat type≥5 million times, tactile type:≥1 million times |
Mechanical Properties | |
Operating pressure |
flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke |
flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm |
Environmental parameters | |
Operating Temperature |
-20°C - +80°C |
Storage temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
