Help CenterLED Membrane Switches With 3M Adhesive
Related Products
-
Custom Waterproof LED Membrane Switch With Flexible CircuitUS$ 1.5 - 4MOQ: 1 Box -
Waterproof One Key Membrane Switch With BacklightUS$ 1.5 - 3MOQ: 100 Boxes
-
Tactile 17 Keys Membrane Switch With 5 LEDs ManufacturerUS$ 1.5 - 4MOQ: 1 Box
-
OEM & ODM Membrane Switch FolientastaturUS$ 0.1 - 10MOQ: 100 Pieces
-
Customized LED Foil Switch OverlayUS$ 0.1 - 10MOQ: 100 Pieces
Specifications
LED Membrane Switches1.Material: PET,PC
2.Manufacturer
3.OEM&ODM:Accept
4.ISO9001,ISO14001&TS16949

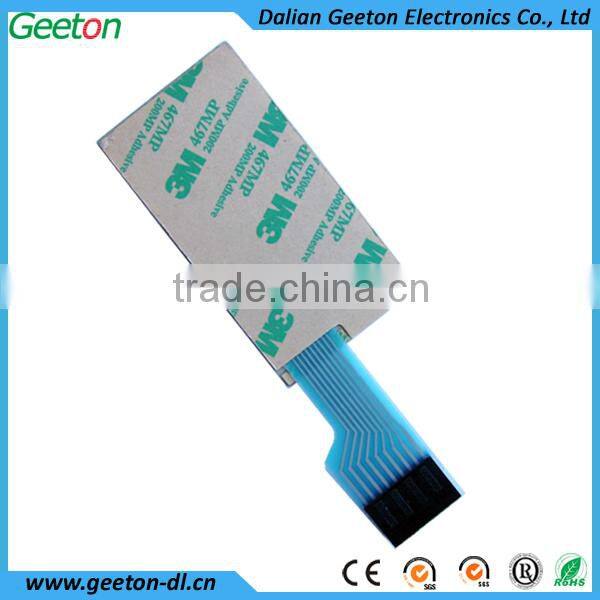

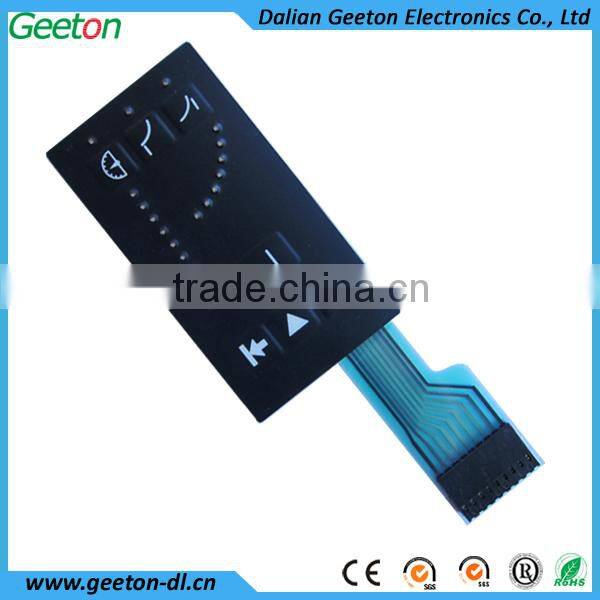

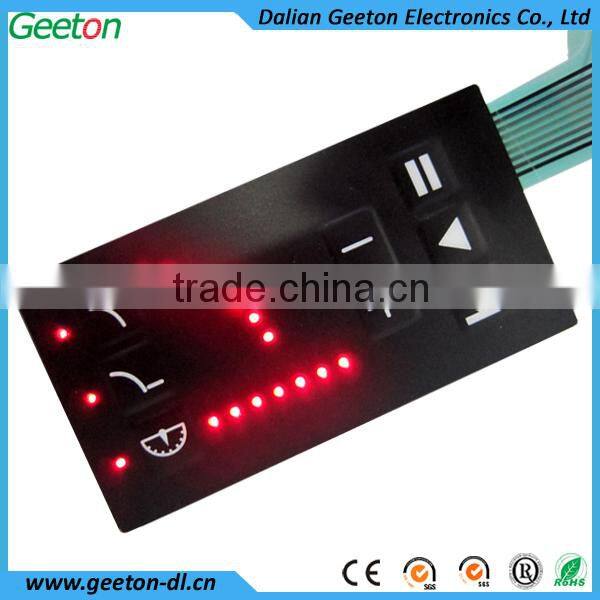

NO.1 LED Membrane Switches With 3M Adhesive
NO.2 LED Membrane Switches Performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
NO.3 Certification
NO.4 Flow Chart
NO.6 Products Recommend
NO.7 Cooperative Client & Customers Visiting
