Customized LED Foil Switch Overlay

Name: Customized LED Foil Switch Overlay
Brand: Geeton
SKU: 108218679

US$ 0.1 - 10 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

Geeton

Model Number:

GMS-323

Dalian Geeton Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name Geeton

Model Number GMS-323

Application Other, Beautity & Medical Machine

Keypad Button Material Other, PET

Specifications

Foil Switch Overlay
1. Own factory
2. OEM &ODM
3. ISO9001,ISO14001,TS16949
4. Material: PET,PC,PMMA

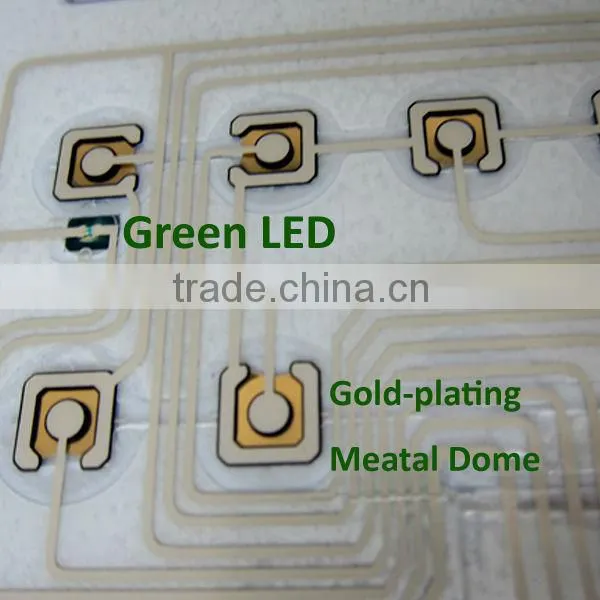

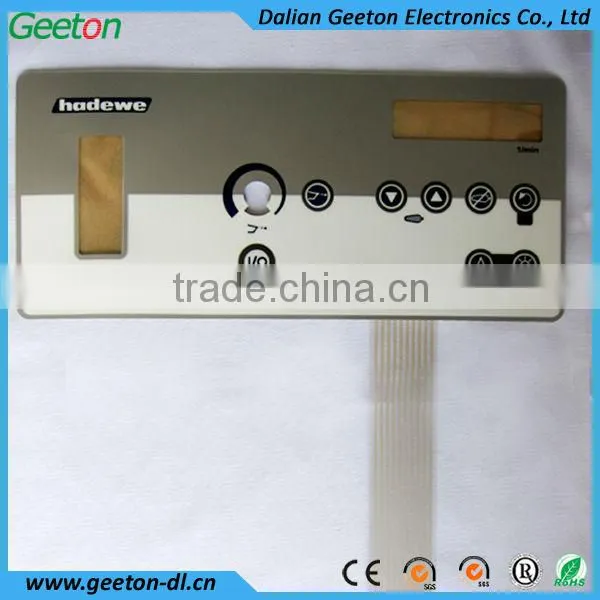

Customized LED Foil Switch Overlay

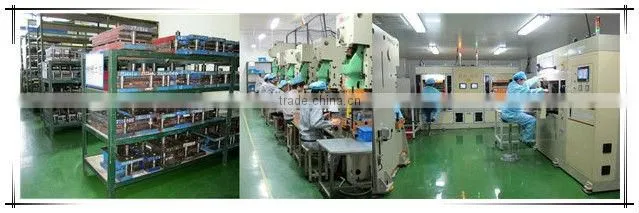

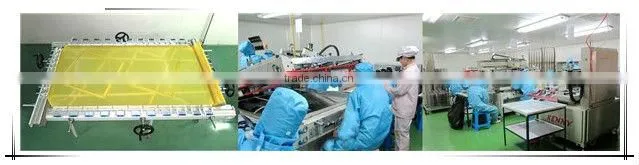

1. Founded in 2003, have 6000 m² workshop area and 200 employees.

2. Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,

FPC and 2D&3D automotive dials.

3. Application Fields: household electrical appliances, beauty medical equipment,

sports equipment, telecommunication, office automation, test instrument,

children’s toys, industrial meters and automotive instrument.

4. Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can

meet RoHS standard.

5. Cooperative Clients

Membrane Switch Advantages

1. Thin and compact structure, light weight

2. Versatile and long life

3. Visually-pleasing appearance, bright color, novel design

4. Moisture-proof, anti-chemical, abrasion resistant, anti-oil

5. Easy to operate, safe and reliable.

Membrane Switch Performance

Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours
