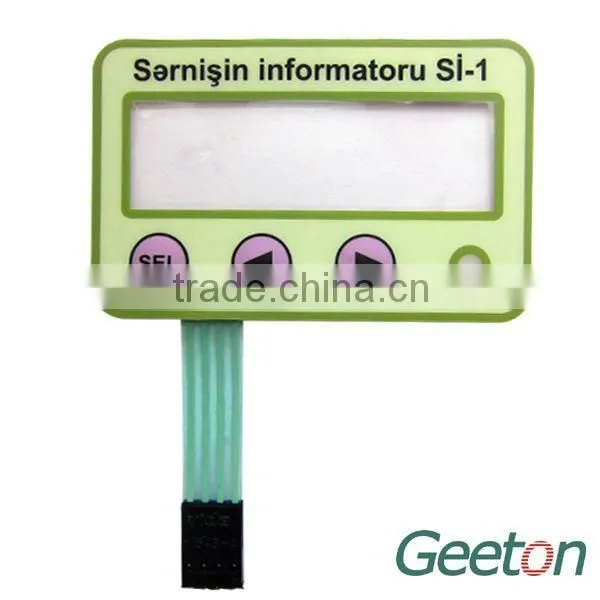

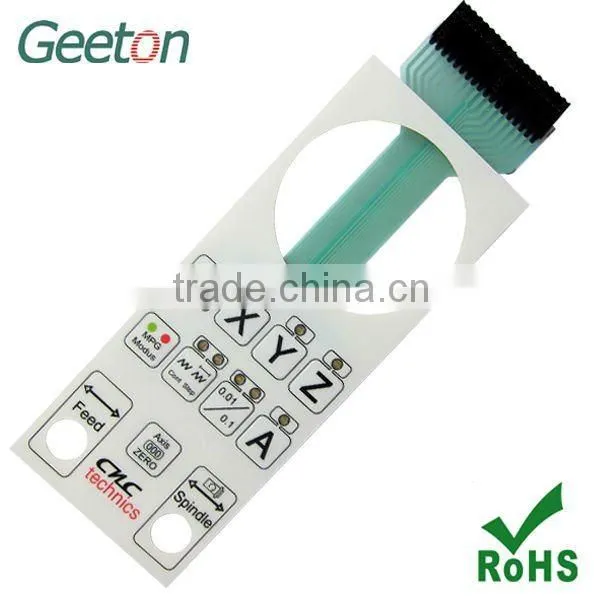

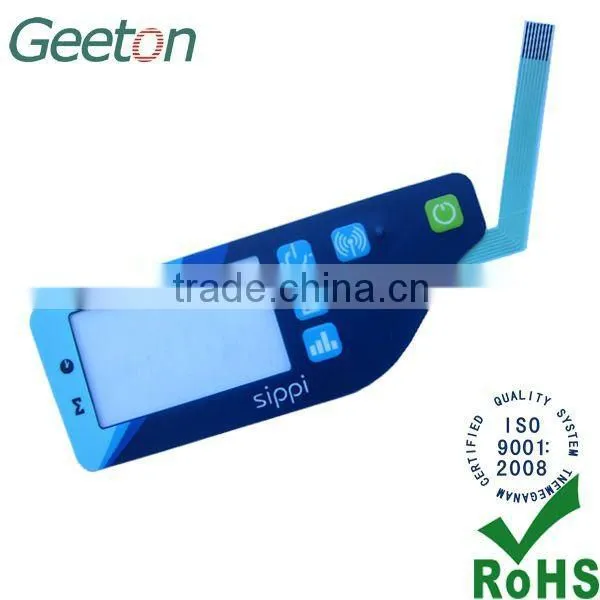

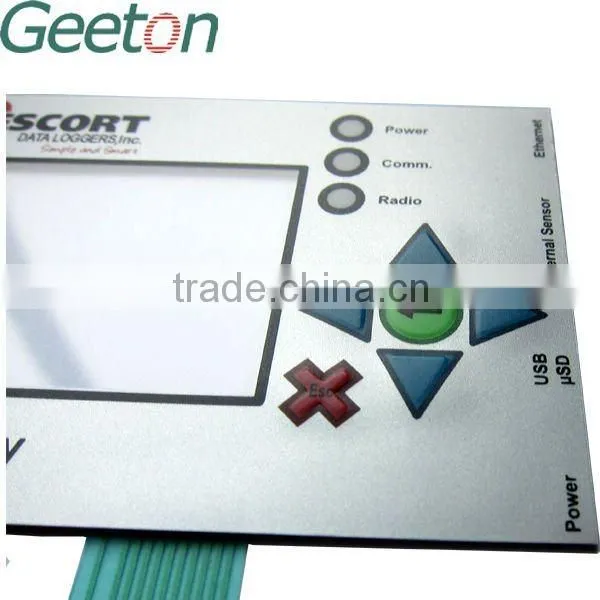

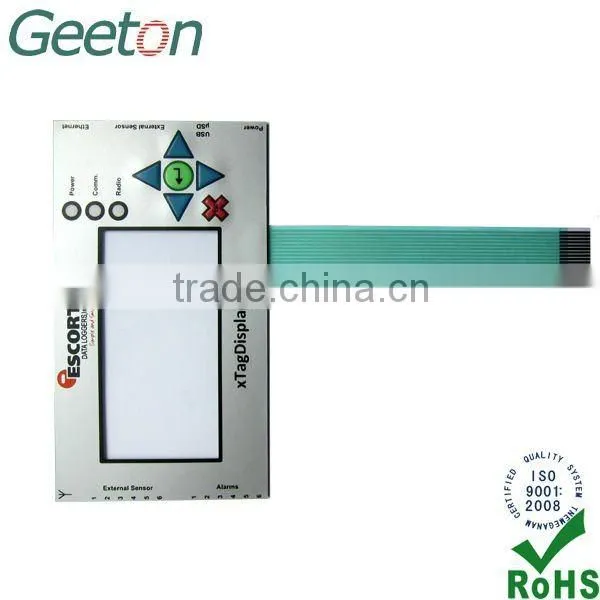

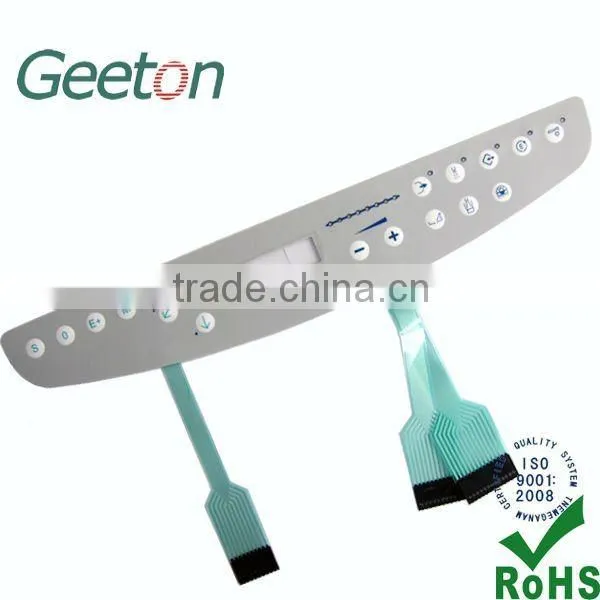

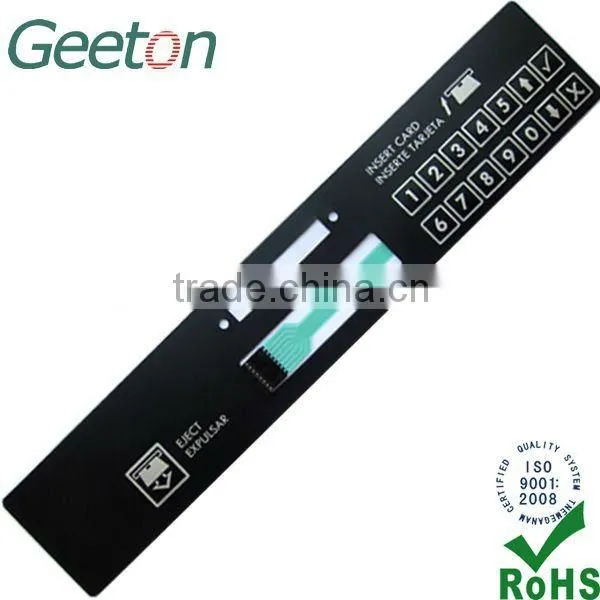

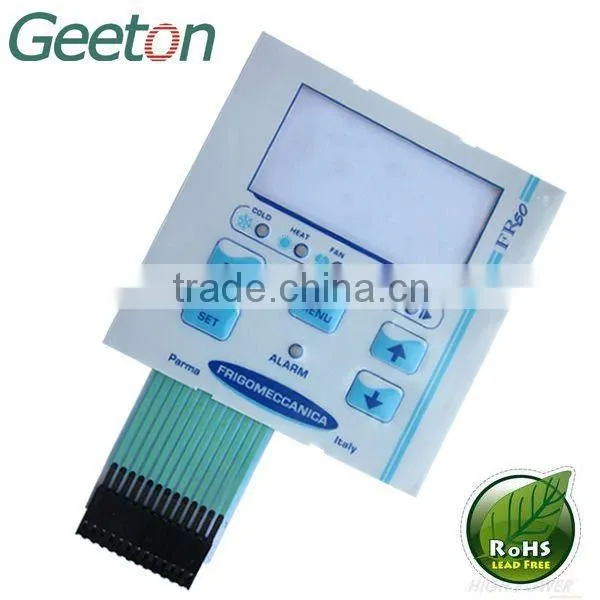

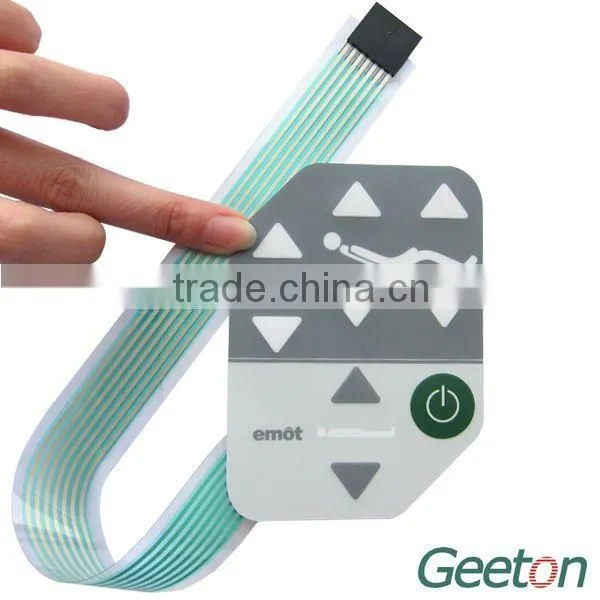

Metal Dome Membrane Switch Panel With LED

Name: Metal Dome Membrane Switch Panel With LED
Brand: Geeton
SKU: 108217883

US$ 1 - 3 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

Geeton

Model Number:

GMS-302

Dalian Geeton Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name Geeton

Model Number GMS-302

Max. Current 100mA

Max. Voltage 35V

Specifications

Membrane Switch LED
1.Material:Autotex F150

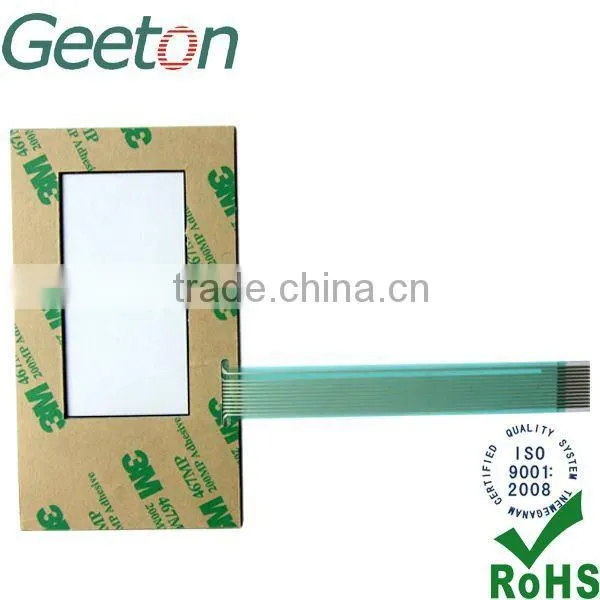

2.Adhesive:Double-side tape or water-binder
3.OEM&ODM
4.Pass:ISO9001,RoHS

Membrane Switch LED

Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch, nameplate, label, 3d dials

an2d dials. Our techinical backbones have moren than ten years experence in screen printing fields. We

have established more than five years’ stable business partnership with Panasonic, TOSHIBA, OMRON,

SANYO and other international well-known enterprises.

Membrane Switch Performance:

Certification	ISO9001:2008, ISO14001:2008& RoHS.
Components:	LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Membrane Switch advantages:

Appearance	Modern, multicolor
Design	Small size, light weight, thin thickness
Feature	Abrasion resistant, moisture-proof, dust-proof, water-proof
Quality	100% QC and the test in making process
Life expectancy	High lifespan, different types of membrane switch is more than 1 million times.
Operation	Easy to operate, intuitive, safe and reliable, Installation and connection convenience.
