Help CenterLED Push Button Membrane Switch Panel With 3M467 Self Adhesive
Related Products
-
Red LED Membrane Switch PanelUS$ 0.5 - 3MOQ: 100 Pieces -
One Button Membrane Switch With Embedded LEDUS$ 0.5 - 2MOQ: 100 Pieces
-
4 LEDs and 2 Embossed Buttons Membrane Switch With Self AdhesiveUS$ 0.5 - 5MOQ: 100 Pieces
-
Metal Dome Membrane Graphic Overlay KeypadUS$ 0.5 - 5MOQ: 100 Pieces
-
Embossed Dome Membrane Switches With 3M AdhesiveUS$ 0.5 - 5MOQ: 100 Pieces

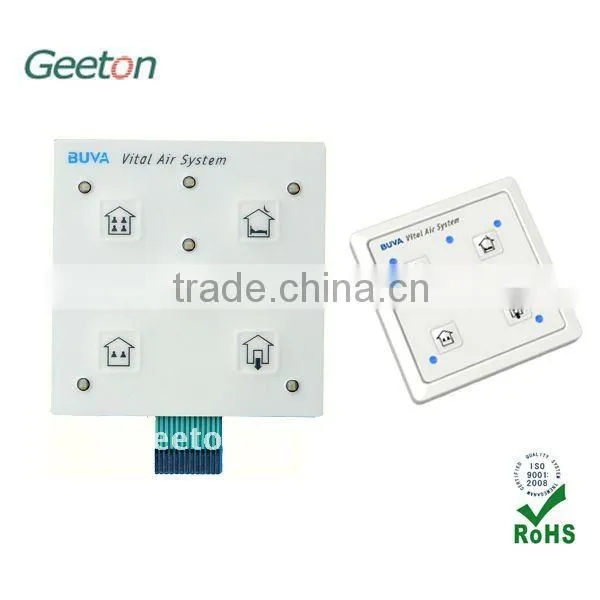

PET LED Membrane Switch Panel With 3M 467 Self Adhesive
LED Membrane Switch Panel Pefromance
Electronic characteristics | |
Circuit rating |
35V(DC),100mA,1 W |
Contact resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance |
>100MΩ 250V(DC) |
Contact bounc |
≤5ms |
Dielectric withstand |
250VRms(50 - 60Hz/1 min) |
Life expectancy |
flat type≥500 million times,tactile type:≥1001 million times |
Mechanical Properties | |
Operating pressure |
flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke |
flat type 0.1 - 0.5mm,tactile type 0.6 - 1.5mm |
Environmental parameters | |
Operating Temperature |
-20°C - +80°C |
Storage temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
Payment & Shipping terms: | |
Price: |
0.5-3.0/piece |
Minimum Order Quantity: |
100 pieces |
Port: |
Dalian |
Packaging Details: |
PE bag, Carton, Wooden crate |
Delivery Time: |
10-12 days |
Payment Terms: |
L/C,T/T |
Supply Ability: |
5000 pieces per day |

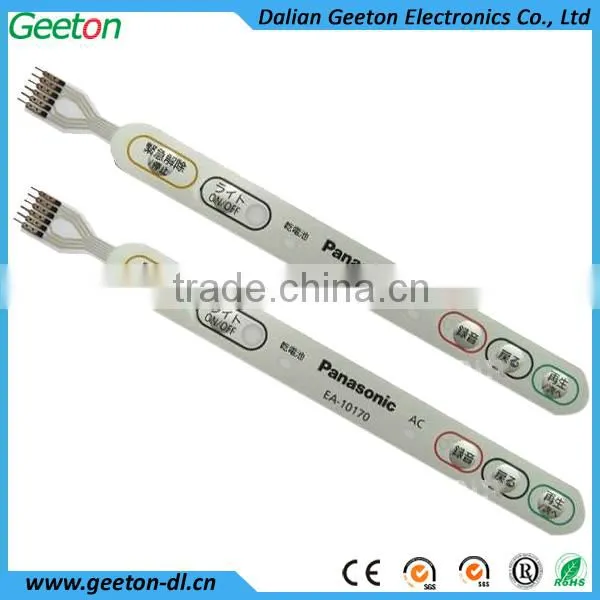

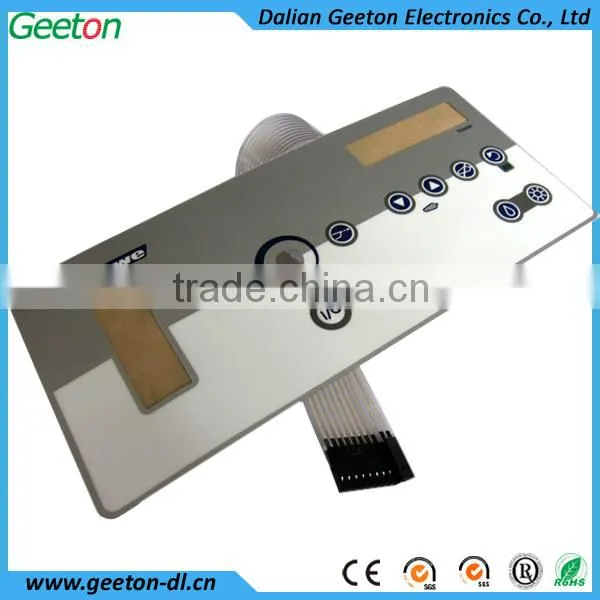

LED Membrane Switch Panel

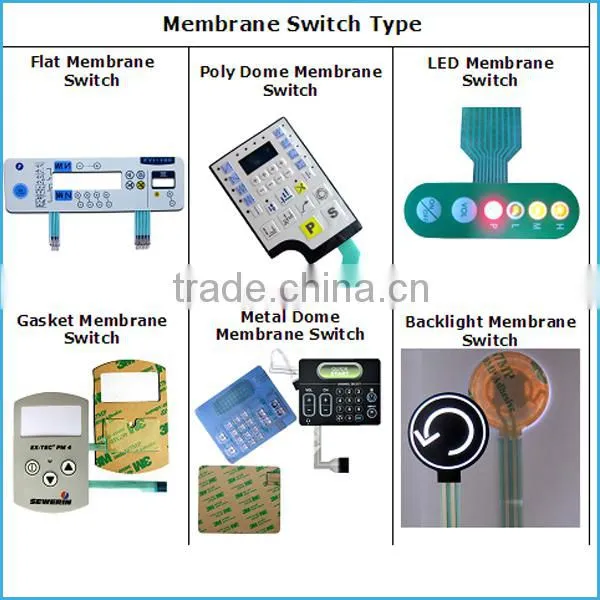

Other Type of the Membrane Switch Panel

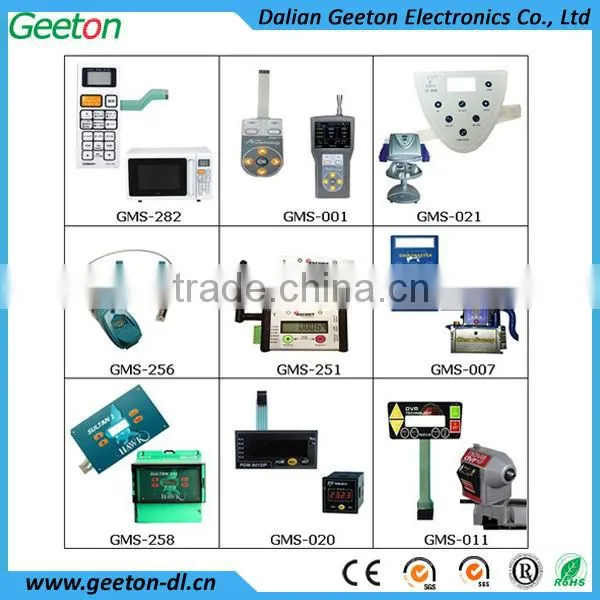

The Application of The Membrane Switch Panel
Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch, nameplate and automobile dashboard. We have established more than 12 years’ stable business partnership with TOSHIBA, SANYO and other international well-known enterprises.
Workshops Pictures
Payment & Shipping Term | |
Price |
0.5-3.0/piece |
Minimum Order Quantity |
100 pieces |
Port |
Dalian |
Packaging Details |
PE bag, Carton, Wooden crate |
Delivery Time |
10-12 days |
Payment Terms |
L/C,T/T, Paypal |
Supply Ability |
150000 pieces per Month |
Packaging
Customers Visit
Certifications
Customers
Q: What does Geeton need for a customized membrane switch order ?
A: When you place a membrane switch order, the customers need to provide the Coreldraw or PDF file. If you do not have the file in the correct format, you can send all the details related to the products.
Q: What does Geeton need for a customized Graphic Overlay order?
A: When you place a Graphic Overlay order, you need to provide coreidraw or Graphic Overlay file and the BOM list to Geeton .
Q: What does Geeton need for other services?
A: For membrane switch & Graphic Overlay clone service, the customer needs to send us the samples concerned, and also the sharp photos of its front side and the back side.
Q: What kind of service to provide clients with?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our pursuits.
Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
