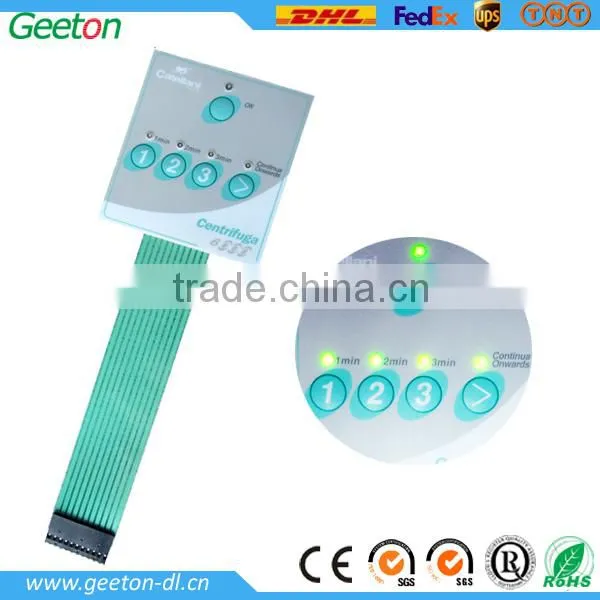

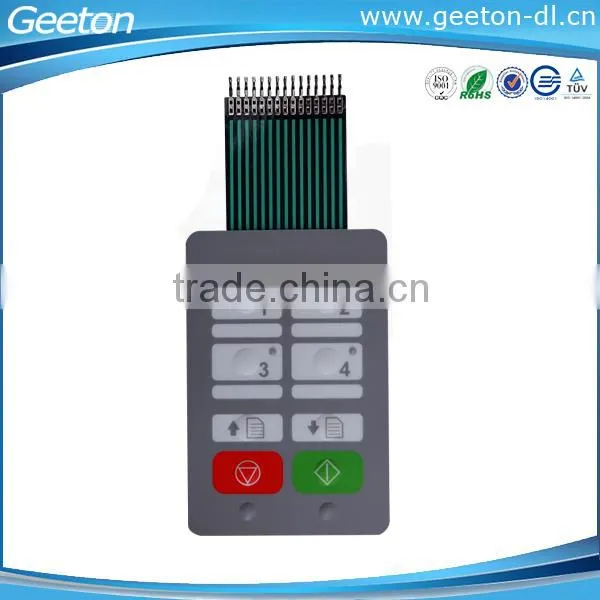

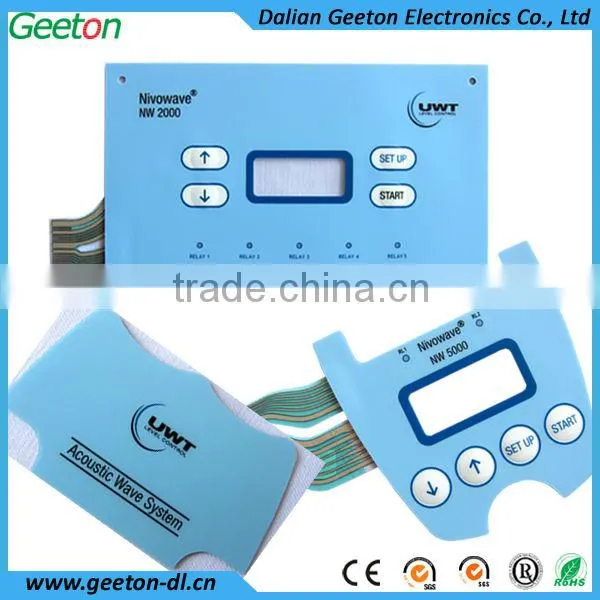

NO.1 push button Membrane Switch keypad with LED
NO.2 Membrane Switches performance
Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade |
35V(DC),100mA,1 W |
Loop Resistance |
10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance |
>100MΩ 250V(DC) |
Dielectric Resistance |
250VRms(50 - 60Hz/1 min) |
Contact Chatter Time |
≤5ms |
Service Life |
flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force |
flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke |
flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature |
-20°C - +80°C |
Storage Temperature |
-40°C - +85°C |
Humidity |
40°C,90%-95%,240 hours |
NO.3 Recommend Membrane Switches
f
NO.4 Membrane Switches Type
NO.5 membrane Switches Application
NO.6 Flow Chart
No.7 Why Choose US!
1. Brief Company Introduction
l Founded in 2003, have 6000 m2 workshop area and 200 employees.
l Main products: membrane switch, graphic overlay, label, acrylic panel, sticker,FPC and 2D&3D autototive dials.
l Application Fields: household electrical appliances, beautity & medical equipment, sports equipment, telecommunication, office automation, test instrument, children's toys, industrial meters and automobile instruments.
l Certification: ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet RoHS standard.
l Certification
