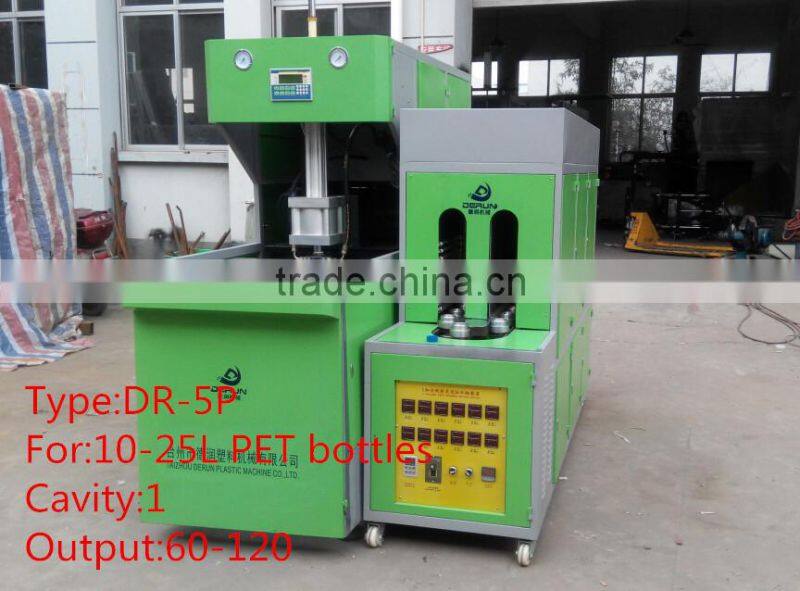

Help CenterPET 5 Gallon Bottle Semi Automatic Making Machine
Related Products
-
PET 5 Gallon Bottle Making MachineUS$ 8,000 - 10,000MOQ: 1 Set -
Semi Automatic PET Bottle Blow Molding Machine With 2 CavityUS$ 3,800 - 5,000MOQ: 1 Set
-
Bottle Neck Crystallizer MachineUS$ 2,300 - 3,000MOQ: 1 Set
-
Cosmetic Bottle Blow Molding MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
Edible Cooking Oil Blow Molding MachineUS$ 8,000 - 10,000MOQ: 1 Set
Technical parameter
|
Main machine (blowert + oven) |
Model type |
Tech data |
Product Spec |
Max. product volume(L/cav) |
20 |
Max. preform neck size(mm) |
200 |
|
Max. product diameter(mm) |
400 |
|
Max. product height (mm) |
600 |
|
Cavities |
1 |
|
Blow molding part |
Die force (KN) |
150 |
Die stroke (mm) |
340 |
|
Max. mould size(mm) |
420*500 |
|
Mould thickness |
adjustable |
|
Mould spacing(mm) |
400 |
|
Max. pulling stroke(mm) |
500 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
560 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air pressure consumption (1tr/min) |
650 |
|
Output(pcs/h) |
80-100 |
|
Machine size(LxWxH)(m) |
2.18*0.77*1.96 |
|
Machine weight(KG) |
1000 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220/380 |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
15-40 |
|
Oven Size (LxWxH) |
2.37*0.68*1.65 |
|
Oven weight (KG) |
380 |
1. Q:Are u a factory ?
A: Yes
2. Q: Could you mind to introduce your company?
A: Yes, We are a factory making and salesing together.So u don't need worry our price is higher, We will use the best quality and service to meet your requirements.
3. Q: Where is your company located?
A: We are located in Huangyan Zhejiang province, Chine. There is Taizhou Airport and Train station, it's comvenient in transportation for customers coming and going.
4. Q: What's your product area?
A: We main making the PET bottle blowing machine,Bottle molds,Extrusion blow molding machine for HDPE,PP,PE,PC bottles,barrel,plastic table legs and so on .
5. Any more questions or details you need to know about us, please send email to us or call us by+86-13105630033 or send us email, waiting for your news, my dear friends!
