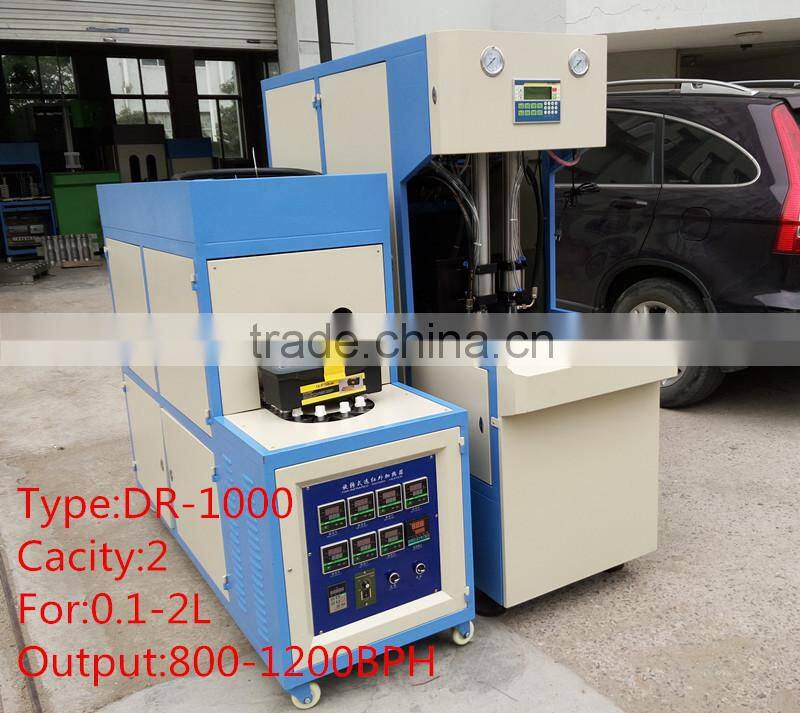

Help CenterSemi Automatic Pet Bottle Blowing Machine for PET Drink Bottle
Related Products
-
DR-1000 Semi Automatic Pet Blowing MachineUS$ 3,800 - 5,000MOQ: 1 Set -
2 Cavity Semi Automatic PET Bottle Making MachineUS$ 3,800 - 5,000MOQ: 1 Set
-
PET Jar Bottle Making MachineUS$ 4,500 - 6,000MOQ: 1 Set
-
5L PET Jar Bottle Making MachineUS$ 4,500 - 6,000MOQ: 1 Set
-
Hot Sale 5L PET Plastic Bottle Making MachineUS$ 4,500 - 6,000MOQ: 1 Set
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor,Low pressure air compressor,Air filter.
Semi-automatic blow moulding machine
Technology advantage:
1, Special design,high rigid compound die structure
2, Wide adaptability, suitable for every type mould thickness
3, Adjust convenience
4, No mould rolling out
5, More energy conservation,no need much air supply
6, High burnish principal axis, with very precise polishing, light action and low noise.
7, Short mould stroke,quick action
8, All casting, with long timing process,very small transformation,can meet your precise request 100%
9, Hig dead-weigh, ensure the steady during the opeartion
Technical Parameter
Main machine (blowert + oven) |
Model type |
Tech data |
Product Spec |
Max. product volume(L/cav) |
2 |
Max. preform neck size(mm) |
100 |
|
Max. product diameter(mm) |
180 |
|
Max. product height (mm) |
300 |
|
Cavities |
2 |
|
Blow molding part |
Die force (KN) |
100 |
Die stroke (mm) |
270 |
|
Max. mould size(mm) |
390*345 |
|
Mould thickness |
Adjustable |
|
Mould spacing(mm) |
350 |
|
Max. pulling stroke(mm) |
400 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
200 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air pressure consumption (1tr/min) |
300 |
|
Output(pcs/h) |
800-1000 |
|
Machine size(LxWxH)(m) |
1.46*0.58*1.8 |
|
Machine weight(KG) |
650 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220 or as your request |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
16 |
|
Oven Size (LxWxH) |
1.35*0.55*1.15 |
|
Oven weight (KG) |
300 |
1. Q:Are u a factory ?
A: Yes
2. Q: Could you mind to introduce your company?
A: Yes, We are a factory making and salesing together.So u don't need worry our price is higher, We will use the best quality and service to meet your requirements.
3. Q: Where is your company located?
A: We are located in Huangyan Zhejiang province, Chine. There is Taizhou Airport and Train station, it's comvenient in transportation for customers coming and going.
4. Q: What's your product area?
A: We main making the PET bottle blowing machine,Bottle molds,Extrusion blow molding machine for HDPE,PP,PE,PC bottles,barrel,plastic table legs and so on .
5. Any more questions or details you need to know about us, please send email to us or call us by+86-13105630033 or send us email, waiting for your news, my dear friends!
