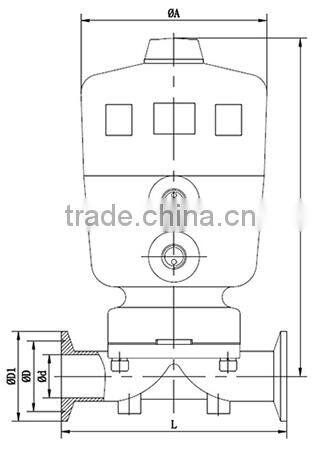

G681F-10P Tri-clamped Pneumatic Diaphragm Valve
Features
1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting
Specifications
Inside and outside of body can be high-temperature sterilization
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp: -20ºC+150ºC
4). Ambient Temp: -20ºC+60ºC
5). Diaphragm Material: EPDM, FPM, PTFE
6). Body Material: Stainless Steel
7). Body of Actuator: Aluminium Alloy
8). Connection: Tri-clamped, Welding, Flanged, Threaded
9). Driving Way: Pneumatic normally closed (1), normally open (2), double direction (3)
10). Useful: Pneumatic actuator D applied to pass body, Pneumatic actuator T applied to pass body and multiplass body
11). Max Pressure: 10 bar (diaphragm is EPDM or EPM) , 6 bar (diaphragm is PTFE, one side shall be used)
12). Max Temperature: 150ºC (according to the conditions of use)
13). Control Pressure: 4-6 bar (control way 1), 3-4 bar (control way 2 and 3)

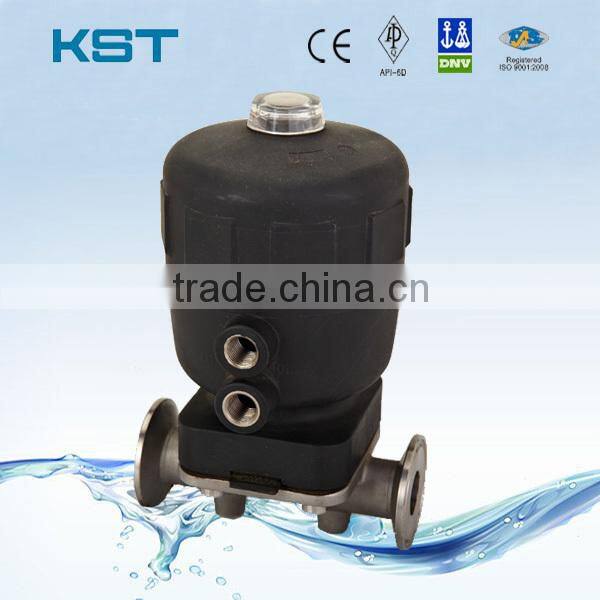

Products Show
