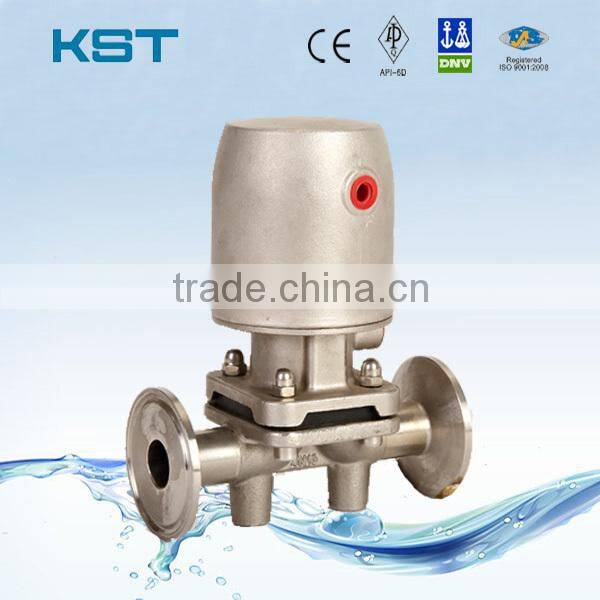

Stainles Steel Diaphragm Valve With Clamp End, SS Actuator
Features
1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting
Specifications
Inside and outside of body can be high-temperature sterilization
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp: -20ºC+150ºC
4). Ambient Temp: -20ºC+60ºC
5). Diaphragm Material: EPDM, FPM, PTFE
6). Body Material: Stainless Steel
7). Body of Actuator: PA
8). Control Pressure: 3-8 bar
9). Connection: Tri-clamped, Welding, Flanged, Threaded
10). Driving Way: Manual, With closed pneumatiied device
11). Max Pressure: 10 bar (diaphragm is EPDM or EPM) , 6 bar (diaphragm is PTFE)
12). Max Temperature: 150ºC (according to the conditions of use)
Products Show
