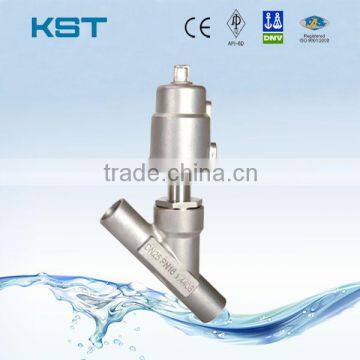

2000Y-J664-16R Stainless Steel Welded Angle Seat Valve

Specifications

2000Y-J664-16R Stainless Steel Welded Angle Seat Valve

Features

1. Easy to Install
2. Infinitely Rotable Actuator Allows Pneumatic Connection in Any Postion
3. 50% More Economical Than Ball Valves
4. 600% Longer Service Life Than Ball Valves
5. Compact Design
6. Fast Response
7. Water hammer-free

Specifications

1). Nominal Diameter: DN15-100

2). Pressure Range: 0-1.6Mpa

3). Medium Temp.: -10°C~+180°C

4). Ambient Temp.: -10°C~+60°C

5). Operating Pressure: 3-8bar

6). Valve Body Material: Stainless Steel, CF8/304,CF8M/316

7). Sealing Material: PTFE

8). Actuator Material: Plastic, Stainless Steel, CF8/304, CF8M/316

9). Medium: Neutral Gas, Air, Water, Vapor
10). Connection: Flanged, Clamped, Welding, Thread (BSP, BSPT, NPT)

11). Type: Double-acting, Single-acting, Water-proof Hanmer


Option: Manual Position-Limit Actuator


This kind of actuator can adjust the piston opening, limit travel and adjusts the valve flow. It is applicable to all types of angle seat valve and also used for emergency brake when air supply is failed or mechanical (solenoid) failure occurs.
