Specifications

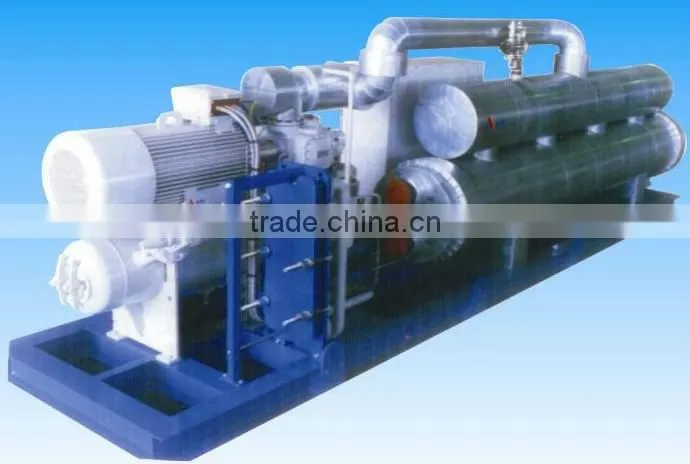

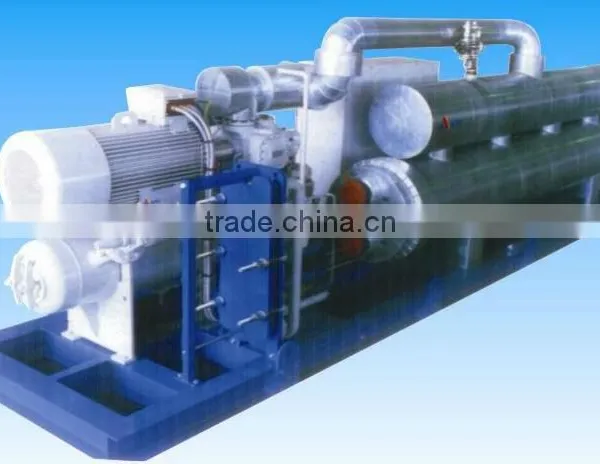

IRPL manufactures Water Cooled Screw Chillers with Highly Reputed screw compressors from Bitzer (Germany) and Frascold (Italy).IRPL manufactures Water Cooled Screw Chillers with Highly Reputed screw compressors from Bitzer (Germany) and Frascold (Italy). These chillers are fully Microprocessor based suitable for process cooling applications from (+) 20 deg C up to (-) 40 deg C. For lower temperatures of up to (-) 50C look into Brine Chillers. These screw chillers are offered with up to 2 Nos. screw compressors in one machine but having separate and individual refrigeration circuits. These chillers are world class, manufactured in an ISO 9001, certified factory with an option of using CFC free refrigerants R-407C & R-134a complete with in-built Process pump and stainless steel chilled water expansion tank. These chillers are also rated for an ambient of up to (+) 50 deg C and cooling tower water temperature up to (+) 37 deg C at the inlet of the condenser. The various operating voltages of these chillers are: a) 380 / 400 Volt AC / 50 HZ b) 460 Volt AC / 50 HZ c) 380 Volt AC / 60 HZ d) 460 Volt AC / 60 HZ.
Features:-
RELATED ALL TYPE CHILLER The glycol chillers, brine chillers, air cooled brine chillers, water cooled brine chillers and liquefiers offered by IRPL are tailor made, specially manufactured suiting the customer requirement. IRPL offers these low temperature Glycol / Brine up to an operating temperature of (-)50 deg C for which compressors can be single stage open type / double stage open type / double stage semi hermetic / single stage screw depending on the size and the temperature requirement of the customer. For very low temperature application even Cascade systems are used for quick cooling. The material of construction is selected carefully depending on the application temperature and special alloys steel is used for ultra lower temperature application. These chillers can be air-cooled or water-cooled depending on the customer requirement. These chillers are rated for an ambient of (+) 480C and various operating voltages which are: a) 380 / 400 Volt AC / 50 HZ b) 460 Volt AC / 50 HZ c) 380 Volt AC / 60 HZ d) 460 Volt AC / 60 HZ
Applications:-
- Food processing industry
- Accelerating mould of plastic.
- Extending the life-span of mechanical components.
- Electronic industry and ultrasonic cleaning industry.
- Electroplating industry cooling to enhance precision of electroplating.
- Food processing industry cooling to enhance the quality of food.
Advantage:-
- Water temperature can be set at random from 0.5 degrees to 20 degrees.
- Intelligence control system can automatically adjust the load increasing and decreasing of the compressor to maintain outlet temperature in certain degree based on water temperature.
- The flow of water varies from 1.5m3/h to 24m3/h, which can meet different needs.
- Containerized structural design, which can whole package to transport to places where need to refrigeration.
- Water chiller unit use high-efficient plate heat exchangers, which is high refrigeration efficiency, high heat transfer efficiency and energy saving.
- Obtained national patent.
