ASTM IEC concentric cable
- 2000 Kilometer / Kilometers per Month
- China main port
- T/T L/C D/P D/A
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | JYTOP | Model Number: | concentric cable |
Insulation Material: | XLPE | Type: | Medium Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

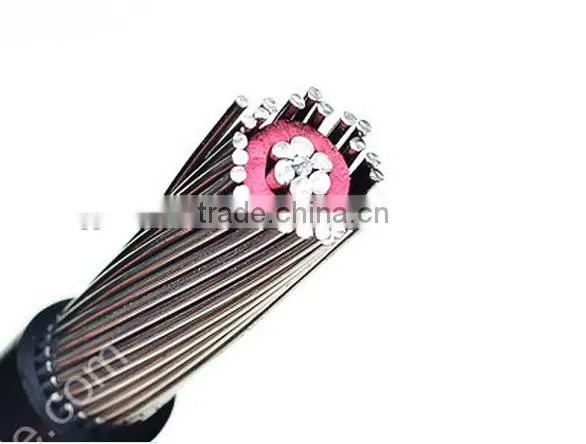

Concentric Cable
ASTM 600/1000v | |||||||||||
Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||||
Conductor | Insulation | Concentric conductor | Outer sheath | ||||||||
Single wire | XLPE | Single wire | UV-PVC | ||||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||||
1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 | ||
1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 | ||
1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 | ||
1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 | ||
1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 | ||
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
| ||
IEC 60502-1 IEC 60228 600/1000v | |||||||||||
Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||||
Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||||
Single wire | Dia. | PVC | Single wire | UV-PVC | |||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||||
10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 | ||
16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 | ||
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 | ||
|
|
|
|
|
|
|
|
|
| ||
16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 | ||
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 | ||
35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 | ||
|
|
|
|
|
|
|
|
|
|
Main Products
Factory
Package
Certificate
You may also interested in:
**Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW,
Aluminum Clad Steel Wire/Strand (ACS),
Hard Drawn Bare Copper Conductor (HDBC),
Copper Clad Steel Wire/Strand (CCS),
Copper Clad Aluminum Wire/Strand (CCA),
Galvanized Steel Wire/Strand (GSW), etc.
**Overhead Insulated Cable: Covered Line Single Core Cable and Aerial BundledCable (ABC).
ABC includes Duplex, Triplex, Quadruplexand multi-core Service Drop Cable… (600V-36kV)
**PVC or XLPE Insulated Armored Power Cable 1kV -36kV.
(Low smoke, halogenfree, fire resistant, water resistant, high temperature cable…)
**PVC Insulated Wire up to with 300/500V, 450/750V, 600/1000V.
(Building wire includes nylon jacket and flat flexible multi-core wires)
**Instrument Cable: Control Cable, Signal Cable, Telephone Cable, etc.
**Concentric Cable
**Welding Cable
**Rubber Cable
**Cable& Conductor Accessories
**Cable Making Machine and Materials
We can produce cables according to the standards of GB, IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ , SANS, etc. And also can design and manufacture the cable as per customers’ special requirements by OEM supply.
JINYUAN—YOUR POWERFUL AND RELIABLE SOLUTION FOR WIRES AND CABLES.
