Specifications
300/500V PVC circular wireReference No 3183Y
Three Core
PVC insulated
May be you are also interested about
300/300V PVC Insulated Parallel Flexible Cords to BS 6500
300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
300/300V PVC Insulated PVC Sheathed Parallel Twin Light Flexible Cords to BS 6500
300/500V Copper conductor PVC insulated flexible wire 3cores
300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
300/500v pvc twin flat cable
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients’ expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers’ special requirements.

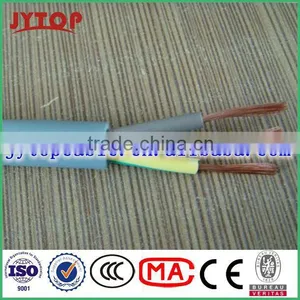

300/500V PVC circular wire
Specifications Reference No 3183Y Three Core
Size of conductor |
Nominal thickness of insulation
mm |
Nominal thickness of sheath
mm |
Mean overall dimensions |
Approx. net weight per km
kg |
||
|
Nominal cross- sectional area
mm2 |
Number and diameter of wires
no/mm |
Lower Limit
mm |
Upper Limit
mm |
|||
0.75 |
24/0.20 |
0.6 |
0.8 |
6.4 |
8.0 |
74 |
1.0 |
32/0.20 |
0.6 |
0.8 |
6.8 |
8.4 |
86 |
1.25 |
40/0.20 |
0.7 |
0.9 |
7.6 |
9.4 |
104 |
1.5 |
30/0.25 |
0.7 |
0.9 |
8.0 |
9.8 |
120 |
2.5 |
50/0.25 |
0.8 |
1.1 |
9.6 |
12.0 |
180 |
