ELECTRICAL WIRE 2 Cores PVC Insulated and PVC Sheathed Flat Electric Wire to BS 6004

Name: ELECTRICAL WIRE 2 Cores PVC Insulated and PVC Sheathed Flat Electric Wire to BS 6004
Brand: JYTOP
SKU: 108162891

US$ 0.1 - 4 MOQ: 500 Meters

Key Specifications

Place of Origin:

Henan, China

Brand Name:

JYTOP

Model Number:

2x1.5sq.mm

Zhengzhou Jinyuan Wire And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name JYTOP

Model Number 2x1.5sq.mm

Type Insulated

Application Overhead

Conductor Material Copper

Conductor Type Other, Solid or stranded

Insulation Material PVC

Specifications

ELECTRICAL Wire
Low price
good quality
International standards BS,IEC,DIN,NF&AS/NZ compliance Reference No 6193y to BS6004

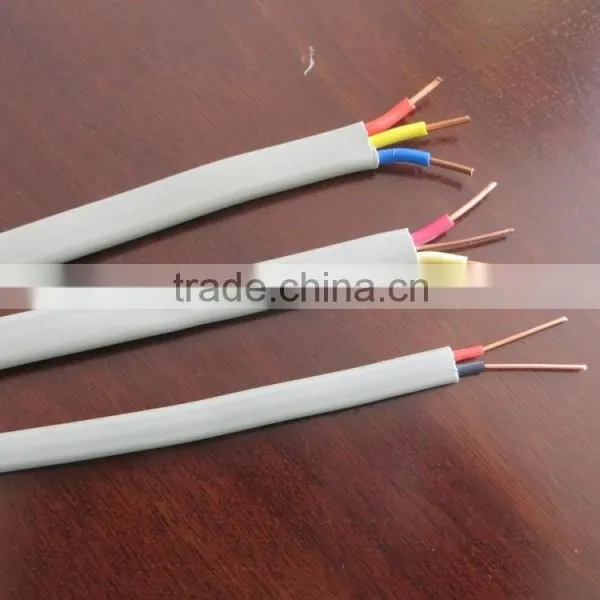

3 cores PVC insulated and PVC sheathed flat cable to BS 6004

Reference No 6193y

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of sheath mm	Mean overall diameter		Approx. net weight per km kg
Nominal cross-sectional area mm²	Number and diameter of wires mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Lower limit mm	Upper limit mm	Approx. net weight per km kg
3x1.0	1/1.13	0.6	0.9	4.0*8.4	4.7*9.8	77
3x1.5	1/1.38	0.7	0.9	4.4*9.8	5.4*11.5	100
3x2.5	1/1.78	0.8	1.0	5.2*11.5	6.2*13.5	150
3x4	7/0.85	0.8	1.1	5.8*13.5	7.4*16.5	230
3x6	7/1.04	0.8	1.1	6.4*15.0	8.0*18.0	300
3x10	7/1.35	1.0	1.2	7.8*19.0	9.6*22.5	485
3x16	7/1.70	1.0	1.3	9.0*22.0	11.0*26.5	700

2 cores PVC insulated and PVC sheathed flat cable to BS 6004

Reference No 6192y

Flat Twin

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of sheath mm	Mean overall dimensions		Approx. net weight per km kg
Nominal cross-sectional area mm²	Number and diameter of wires mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Lower limit mm	Upper limit mm	Approx. net weight per km kg
2x1.0	1/1.13	0.6	0.9	4.0*6.2	4.7*7.4	55
2x1.5	1/1.38	0.7	0.9	4.4*7.0	5.4*8.4	70
2x2.5	1/1.78	0.8	1.0	5.2*8.4	6.2*9.8	105
2x4	7/0.85	0.8	1.0	5.6*9.6	7.2*11.5	150
2x6	7/1.04	0.8	1.1	6.4*10.5	8.0*13.0	205
2x10	7/1.35	1.0	1.2	7.8*13.0	9.6*16.0	325
2x16	7/1.70	1.0	1.3	9.0*15.5	11.0*18.5	465
