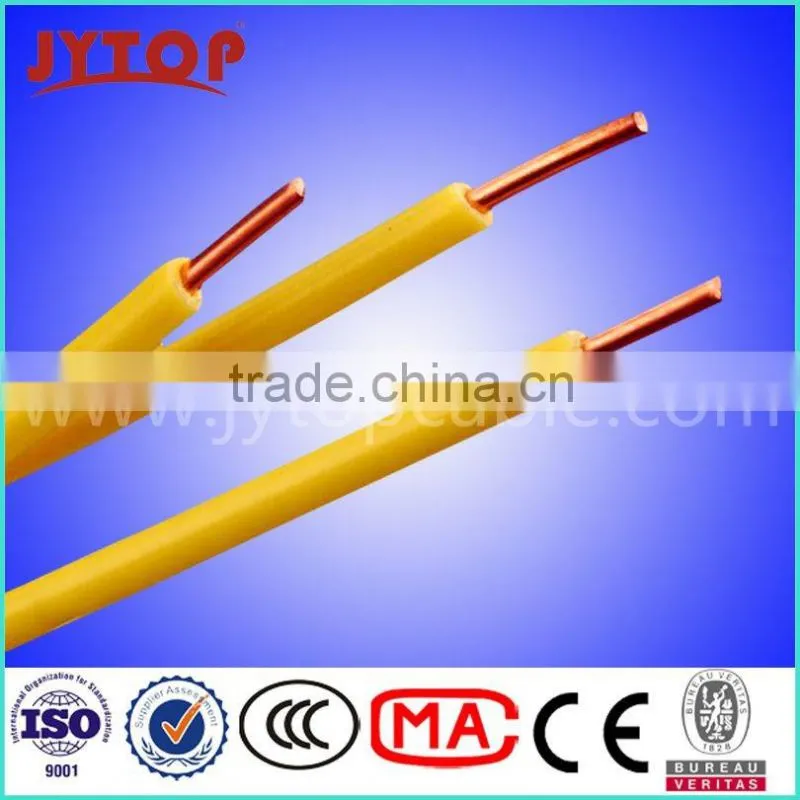

450/750v H07V-K single core cable with CE certificate
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
Application
Description
These cables are indicated for executing permanent installations in housing, premises and offices, electrical control panels, as well as domestic and industrial lighting. They are easy to install thanks to their superslide insulation and great flexibility.
Reference Standards
UNE-EN 50525-2-31, EN 50525-2-31 and IEC 60227-3 Description
Construction for H07V-K
|
1. Conductor |
Flexible electrolytic copper conductor (Class V) according to BS EN 60228:2005 (previously BS6360) and EN 60228. |
|---|---|
|
2. Insulation |
PVC insulation, type TI-1, according to BS 7655 and HD 21.3S3:1995/A2:2008. |
|
Rated voltage |
450/750 V |
|
Test voltage |
2.500 V in A.C. |
|
Maximum temperature |
70 ºC |
|
Other characteristics |
Colours according to UNE-EN 50525-1 and EN 50525-1 Non-flame propagating according to UNE-EN 60332, EN 60332 and IEC 60332 PVC insulation with reduced hydrogen chloride (HCl) emission. |
|
european |
EN 60332-1 |
|
International norm |
IEC 60332-1 |
Technical data for H07V-K Cable
|
Section (mm2) |
Resistance at 20 °C (Ohm/km) |
External Diameter (mm) |
Weight (kg/km) |
|---|---|---|---|
|
1x1,5 |
13,3 |
2,80 |
19 |
|
1x2,5 |
7,98 |
3,40 |
29 |
|
1x4 |
4,95 |
3,90 |
43 |
|
1x6 |
3,3 |
4,40 |
61 |
|
1x10 |
1,91 |
5,75 |
106 |
|
1x16 |
1,21 |
6,75 |
156 |
|
1x25 |
0,78 |
8,40 |
238 |
|
1x35 |
0,554 |
9,75 |
324 |
|
1x50 |
0,386 |
11,50 |
466 |
|
1x70 |
0,272 |
13,20 |
661 |
|
1x95 |
0,206 |
16,00 |
879 |
|
1x120 |
0,161 |
17,50 |
1.115 |
|
1x150 |
0,129 |
19,40 |
1.387 |
|
1x185 |
0,106 |
22,30 |
1.682 |
|
1x240 |
0,0801 |
25,00 |
2.174 |
|
1x300 |
0,0641 |
26,70 |
2.664 |
|
1x400 |
0,0486 |
31,20 |
3.387 |

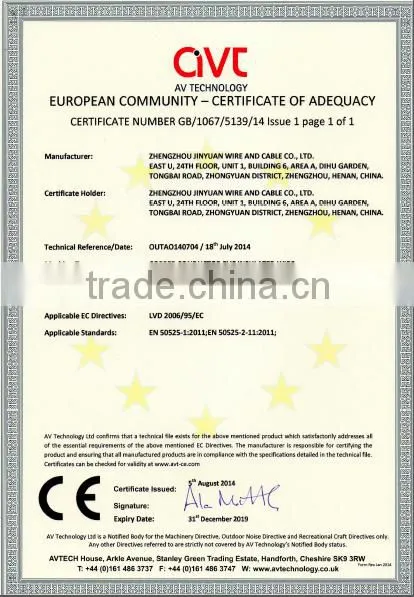

CE certificate for H07V-K H07V-U H07V-R

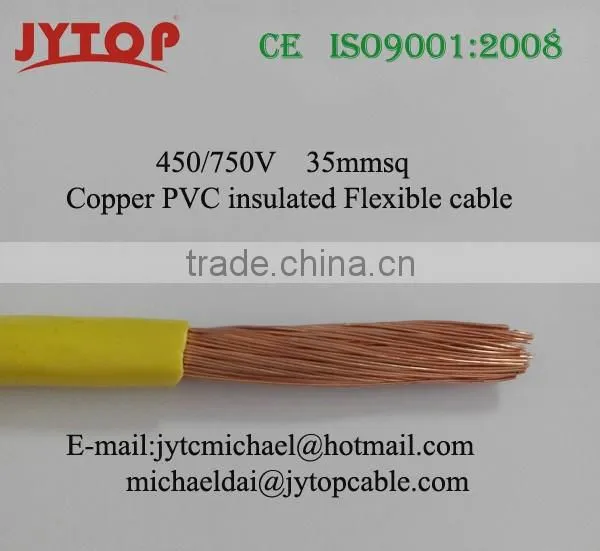

H07V-K picture 1
H07V-K picture 2
H07V-K picture 3

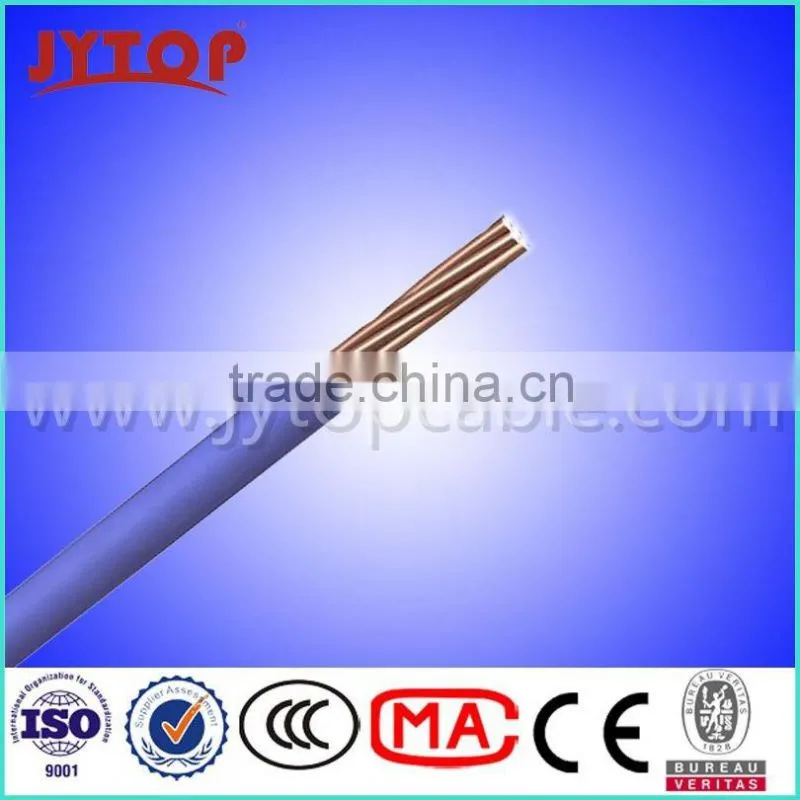

H07V-R

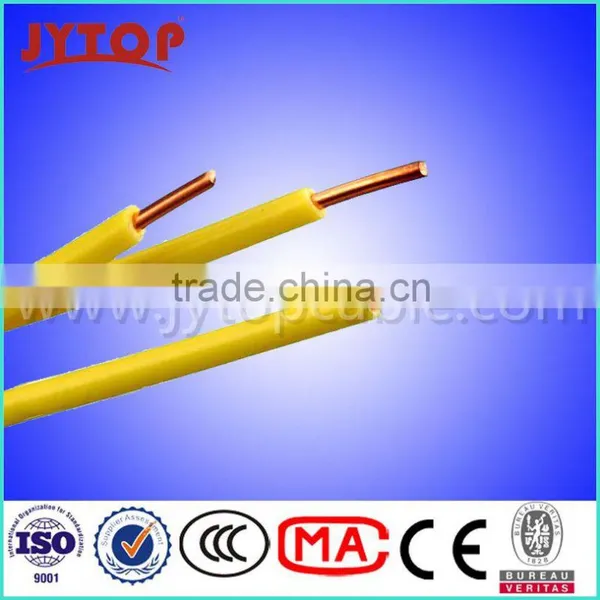

H07V-U
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such as IEC, ASTM, BS, DIN, or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
