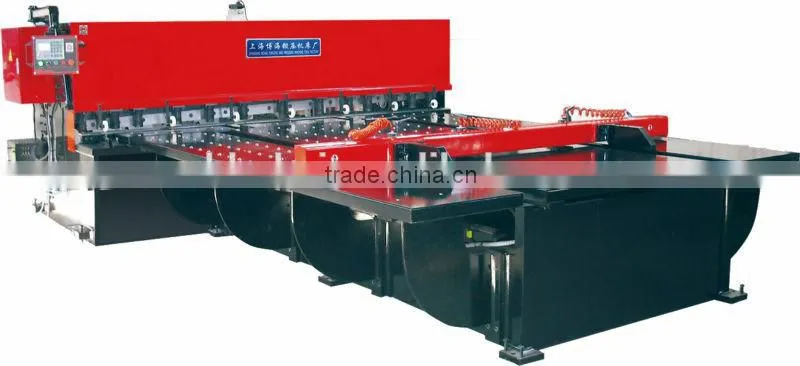

Model: QC12Y-6x3200
Complete with Delem DAC360 CNC Controller from Netherland
Overall Structure
-- Using UG (finite element) analysis, through computer aid design, with nice appearance.
-- The entire machine is fully steel welded structure, with excellent rigidity and stability.
-- Using German technology to eliminate internal stress.
-- Entire frame using striking grit to get rid of rust and spout anticorrosive paint.
Main components deployment list
1. Hydraulic system Italy Atos
2. Sealing pieces Japanese NOK
3. Oil pump Gear Pump
4. Electrical pieces Shanghai CHINT
5. Shear Blade Shanghai JINSHAN

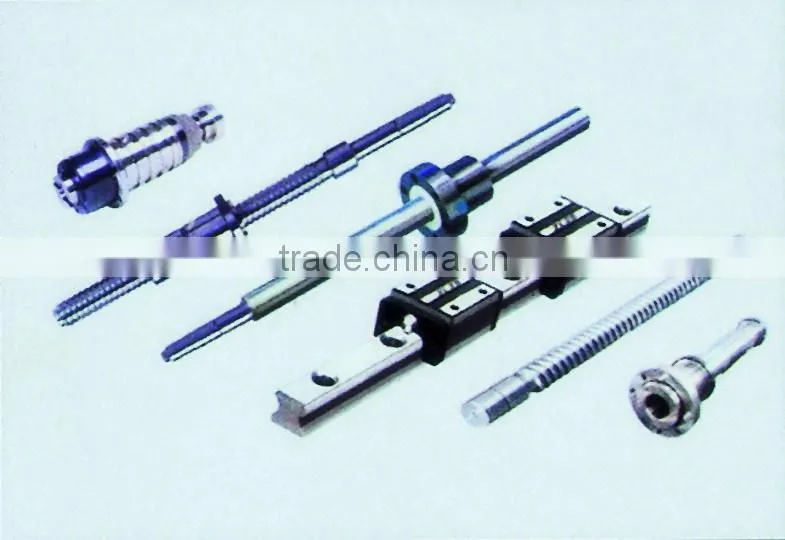

6. Ballscrew backgauge Taiwan HIWIN
7. Linear guide rail Taiwan Hiwin
8. Servo motor and Drive Japan Yaskawa
9.Electonical components Shneider
Delem DAC360 CNC Control System
Operater need to input the data of the sheet thickness,type of material, cutting length,retraction and the X-Axis Value,
Then the CNC will calculate the cutting angle, blade gap and cutting stroke Automatically.
-The DAC360 will Automatically adjust the following 6 functions
1) X-axis Backgauge- SERVO MOTOR Drive,BallScrew with liner rail
2) Blade Gap Adjustment
3) Variable angle adjustment-1º-3º
4) Cutting Length control
5) Stroke Counter
6) Retraction
Hydraulic system
-- Advanced hydraulic integrated system is employed and the pipeline connection is minimized, to ensure the system reliability and safety.
-- Pressure device: it is consisted of some pressure feed cylinders installed at support board in front of machine frame. Pressure head press down against the pull force of stress spring, press plate tightly. After finishing cutting, the cylinders are reset by the pull force of stress spring. The pressure is bigger as thicker as the thickness of plate.
Electrical control system
--Electric components and material are accord with international standard, safety and reliable, long life.
-- The power of the machine is 60 Hz; 220V 3-phase electricity is 1-phase 36V. Control converter use 2-phase 220V.The out-put 36V of control converter control circuit and alight bulb. The voltage of magnetic exchange valve is 27V. The voltage of display bulb is 6V. And the other control component is 24V.
-- The control box is at the left. The all operation buttons fixed on button board at front except foot brake SF. The symbol of each function operation is displayed on above.

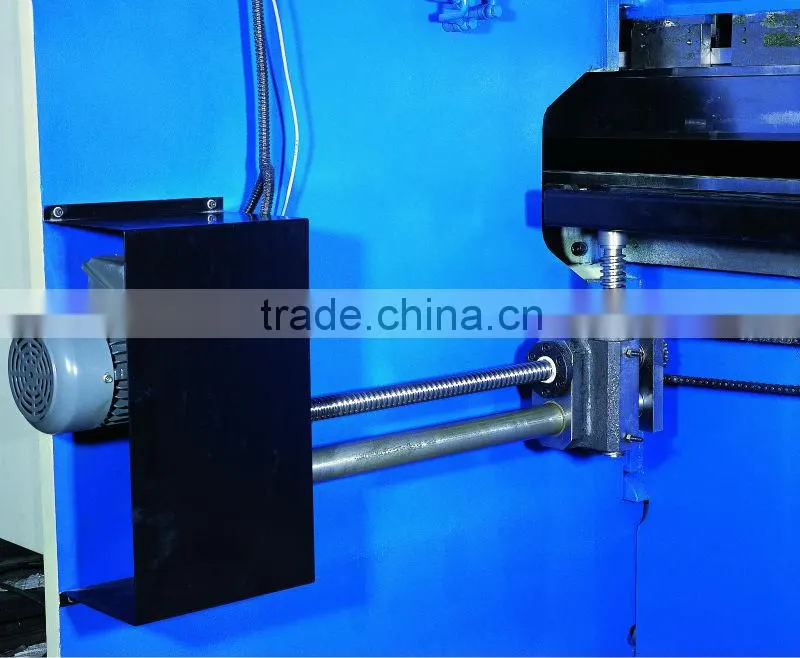

Back gauge
The backgauge position was controlled by CNC controller DAC360 through servo motor.
DAC360 CNC control and Ballscrew Backgauge

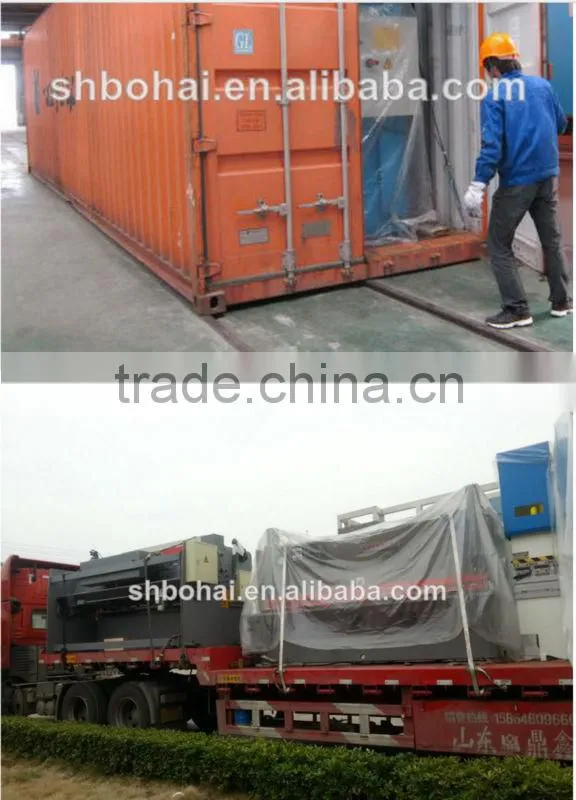

**Note: Machine standard covered by one plastic film cover. can be also packed by crate or wooden box or metal box according to customer's special needs.**
As the parernt company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China. Three different ISO certified factories producing different product families employ 300 employees.
In order to offer customer solutions and further develop patents, the BOHAI Research and Development center opened in 2000. Now, there are fifteen enginer serve for the R & D center.
Designed and engineered with modern technology, Bohai products are equipped with high quality and proven readily available components.
Established in 1989, Bohai has vast experience in building and supplying quality products. With over 60,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions.
Your partner today, tomorrow, and forever.
