Hydraulic motorised backgauge Shearing Machine Price with option DAC360 CNC controller
Characterastics
1. Assisting blade pedestal on worktable is convenient for micro adjustment.
2. Rolling material support ball is provided on worktable, convenient operation.
3. Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
4. The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Regulating shearing process not only increases the production efficiency but also achieve the function of segmentshearing.
6. It is provided with counting function for shearing to decrease the numerous artifical counting.
Main components deployment list
| Hydraulic system: | Omega |
| Sealing pieces: | Japanese NOK |
| Oil pump: | Shanghai Chengjie |
| Electrical pieces: | Schneider |
| NC Controller | Estun E21S |
| Shear Blade: | Shanghai JINSHAN |
| Ball Screw(Option): | TAIWAN HIWIN |
| Linear Guide way(Option) | TAIWAN HIWIN |

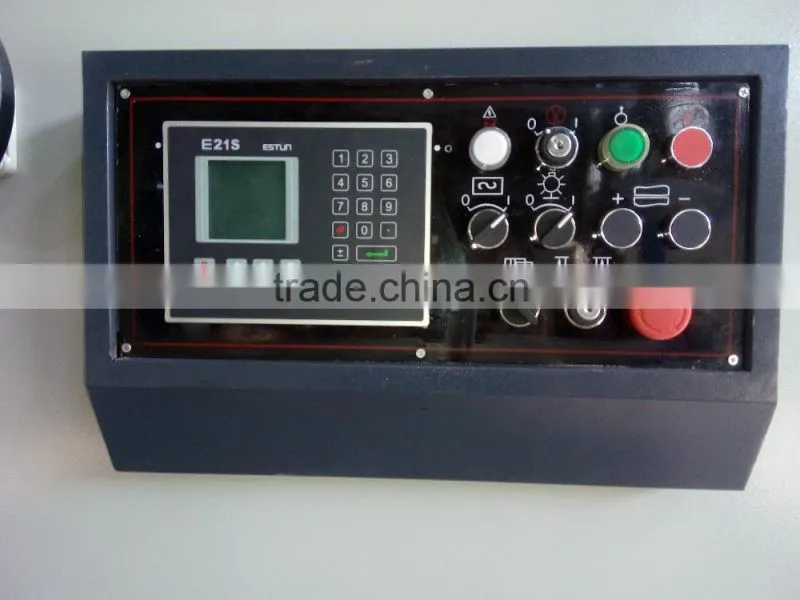

X-Axis Backague Control E21S (Standard):
- Positioning Control of Backague
- Intelligent positioning control
- One side and two-side positioning which eliminated spindle clearance effectively
-Retract function
- Automatic reference searching
- One-key parameter backup and restore
- Fast position indexing
- 40 programs storage space, each program has 25 steps
- Power off protection

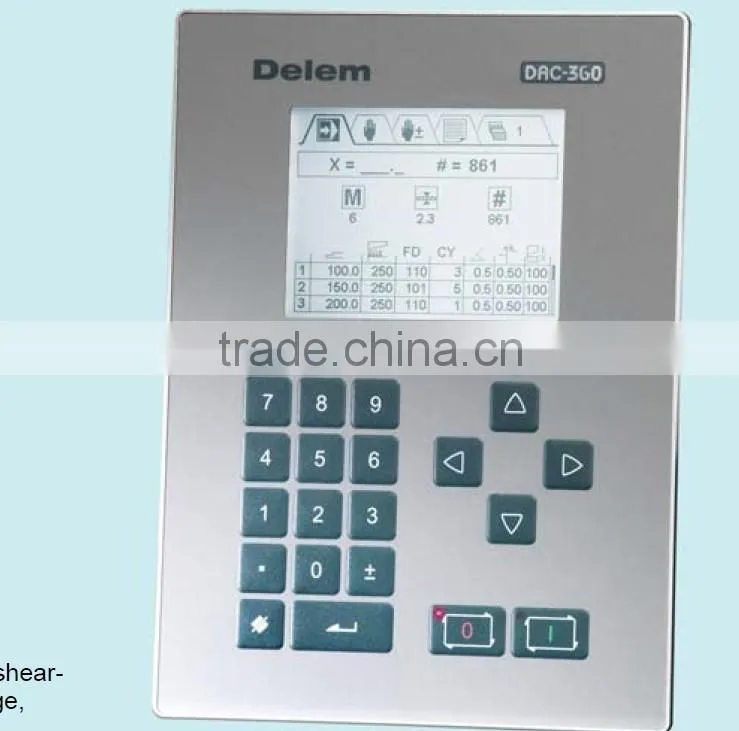

Delem DAC360 CNC Controller (Option)
- X Axis Backgauge Accuracy ±0.1mm Servo Motor Drive
Complete with:
- HIWIN Ball Screw - HIWIN Linear Way
The DAC-360 control provides a complete solution for shearing mac
hines. It includes the control of backgauge, cutting angle, stroke length and gap, based on state of the art electronics.
DAC-360 Featuring:
1) Bright LCD screen
2) Backgauge control
3) Retract function
4) Cutting angle control
5) Cutting gap control
6) Stroke length limitation
7) Force control
8) Manual movement of axes
Model |
Cutting Thickness |
Cutting Length |
Cutting Angle |
Travel Time |
Backgauge Stroke |
Motor |
Dimension (L x W x H) |
|
mm(450N/m2) |
mm |
° |
Min-1 |
mm |
kw |
Mm |
4 x 2500 |
4 |
2500 |
1°30′ |
16 |
20~500 |
5.5 |
3040 x 1550 x 1550 |
4 x 3200 |
4 |
3200 |
1°30′ |
13 |
20~500 |
5.5 |
3840 x 1550 x 1550 |
4 x 4000 |
4 |
4000 |
1°30′ |
10 |
20~600 |
5.5 |
4600 x 1700 x 1700 |
4 x 6000 |
4 |
6000 |
1°30′ |
5 |
20~800 |
7.5 |
6460 x 2100 x 2300 |
6 x 2500 |
6 |
2500 |
1°30′ |
15 |
20~500 |
7.5 |
3040 x 1710 x 1620 |
6 x 3200 |
6 |
3200 |
1°30′ |
12 |
20~500 |
7.5 |
3840 x 1710 x 1620 |
6 x 4000 |
6 |
4000 |
1°30′ |
9 |
20~600 |
7.5 |
4620 x 1850 x 1700 |
6 x 5000 |
6 |
5000 |
1°30′ |
8 |
20~600 |
7.5 |
5640 x 1900 x 2000 |
6 x 6000 |
6 |
6000 |
1°30′ |
5 |
20~800 |
18.5 |
6480 x 2100 x 2300 |
8 x 2500 |
8 |
2500 |
1°30′ |
11 |
20~500 |
7.5 |
3040 x 1700 x 1700 |
8 x 3200 |
8 |
3200 |
1°30′ |
8 |
20~500 |
7.5 |
3860 x 1700 x 1700 |
8 x 4000 |
8 |
4000 |
1°30′ |
8 |
20~600 |
7.5 |
4640 x 1700 x 1700 |
8 x 5000 |
8 |
5000 |
1°30′ |
8 |
20~500 |
7.5 |
5400 x 2400 x 200 |
8 x 6000 |
8 |
6000 |
1°30′ |
8 |
20~800 |
18.5 |
6480 x 2100 x 2350 |
10 x 2500 |
10 |
2500 |
1°30′ |
8 |
20~500 |
7.5 |
3040 x 1800 x 1700 |
10 x 3200 |
10 |
3200 |
2° |
10 |
20~500 |
11 |
3860 x 2000 x 1700 |
10 x 4000 |
10 |
4000 |
2° |
10 |
20~600 |
11 |
4650 x 2100 x 2000 |
10 x 6000 |
10 |
6000 |
1°30′ |
10 |
20~800 |
18.5 |
6500 x 2100 x 2300 |
12 x 2500 |
12 |
2500 |
1°40′ |
12 |
20~600 |
18.5 |
3140 x 2050 x 2000 |
12 x 3200 |
12 |
3200 |
1°40′ |
10 |
20~600 |
18.5 |
3880 x 2150 x 2000 |
12 x 4000 |
12 |
4000 |
1°40′ |
10 |
20~600 |
18.5 |
4680 x 2150 x 2000 |
12 x 5000 |
12 |
5000 |
2° |
6 |
20~600 |
18.5 |
5800 x 2400 x 2400 |
12 x 6000 |
12 |
6000 |
2° |
5 |
20~800 |
22 |
6900 x 2600 x 2700 |
16 x 2500 |
16 |
2500 |
2°30′ |
10 |
20~100 |
18.5 |
3140 x 2150 x 2100 |
16 x 3200 |
16 |
3200 |
2°30′ |
10 |
20~600 |
18.5 |
3880 x 2150 x 200 |
16 x 4000 |
16 |
4000 |
2°30′ |
10 |
20~800 |
37 |
4650 x 21580 x 2200 |
16 x 5000 |
16 |
5000 |
2° |
6 |
20~100 |
18.5 |
5900 x 2600 x 2700 |
16 x 6000 |
16 |
6000 |
2° |
5 |
20~1000 |
22 |
6900 x 2700 x 2700 |
20 x 2500 |
20 |
2500 |
2°30′ |
8 |
20~800 |
22 |
3440 x 2300 x 2500 |
20 x 3200 |
20 |
3200 |
2°30′ |
8 |
20~1000 |
22 |
4150 x 2350 x 2700 |
20 x 4000 |
20 |
4000 |
2°30′ |
5 |
20~1000 |
22 |
4850 x 2600 x 2400 |
20 x 6000 |
20 |
6000 |
2°30′ |
4 |
20~1000 |
37 |
6700 x 3000 x 3000 |
25 x 2500 |
25 |
2500 |
3° |
8 |
20~1000 |
37 |
3200 x 2700 x 2900 |
25 x 3200 |
25 |
3200 |
3° |
5 |
20~1000 |
37 |
4200 x 2400 x 2500 |
30 x 2500 |
30 |
2500 |
3° |
4 |
20~1000 |
40 |
3300 x 2900 x 3000 |
30 x 3200 |
30 |
3200 |
3°30′ |
4 |
20~1000 |
40 |
4200 x 2500 x 2600 |
40 x 2500 |
40 |
2500 |
4° |
3 |
20~1000 |
75 |
3200 x 3300 x 3200 |
40 x 3200 |
40 |
3200 |
4° |
3 |
20~1000 |
90 |
4300 x 3300 x 3000 |

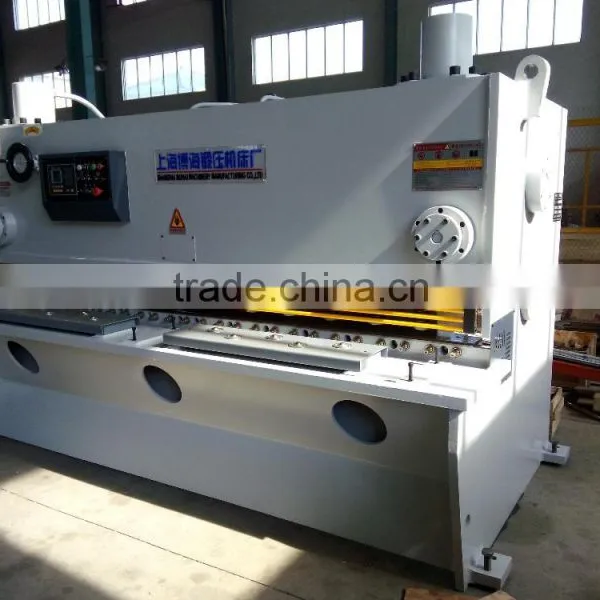

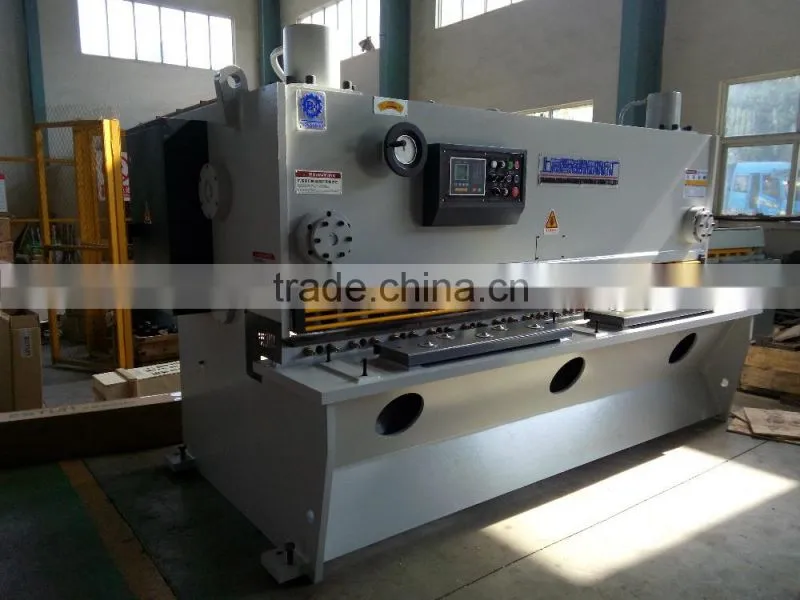

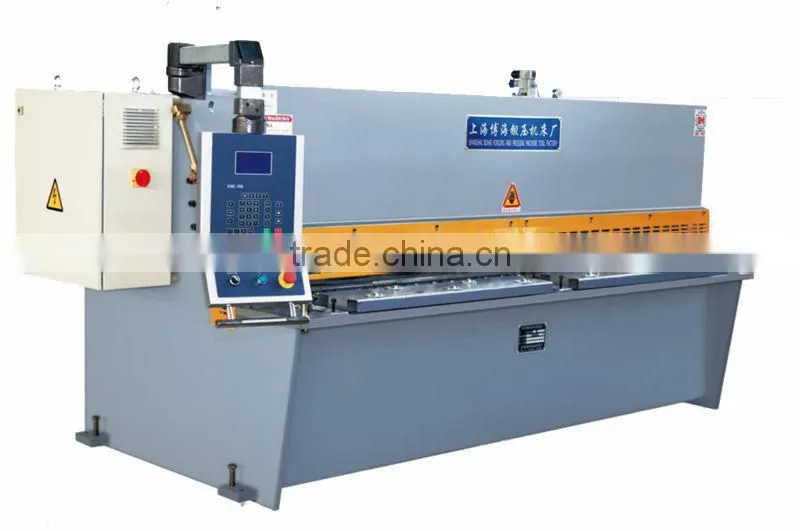

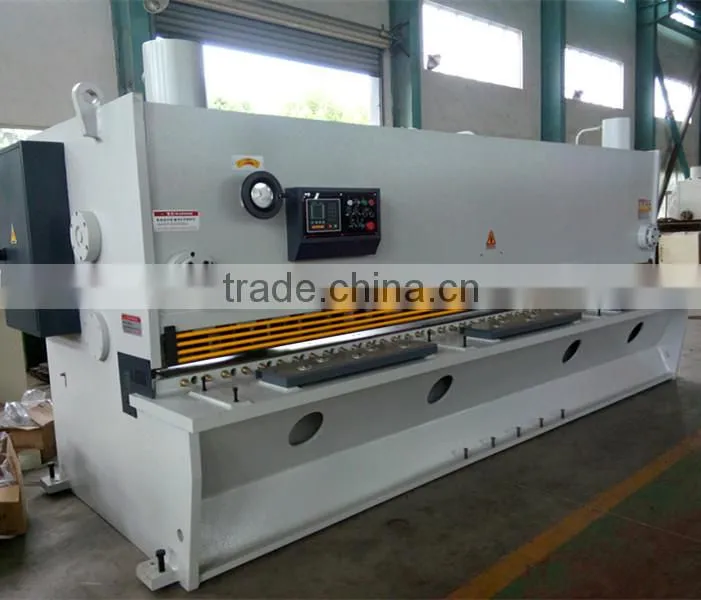

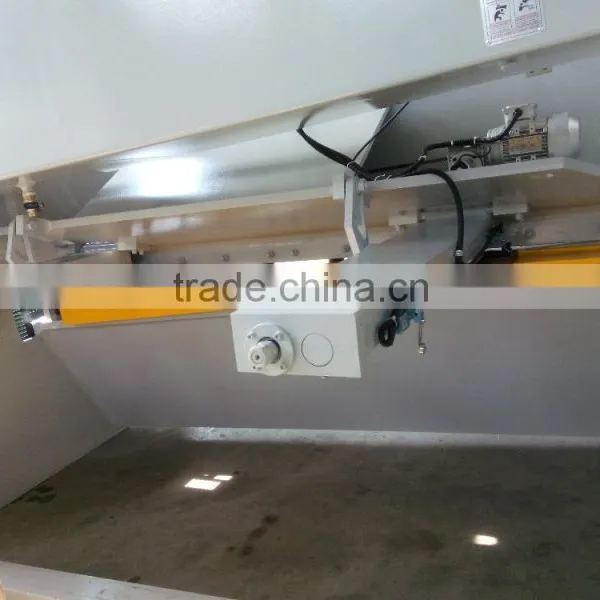

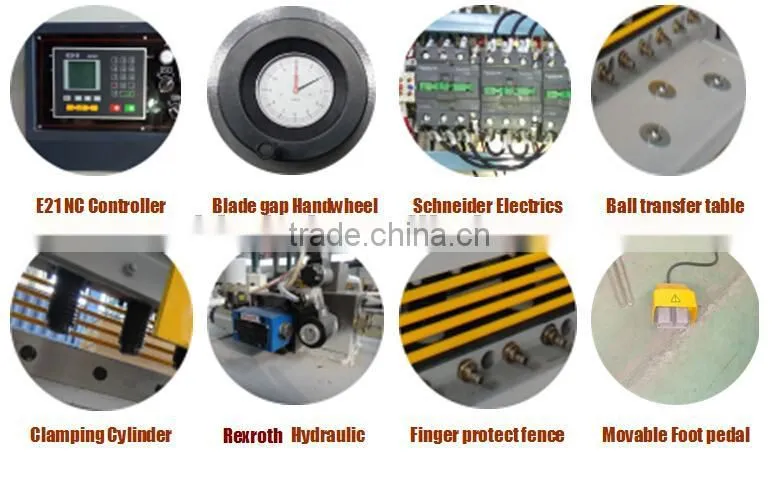

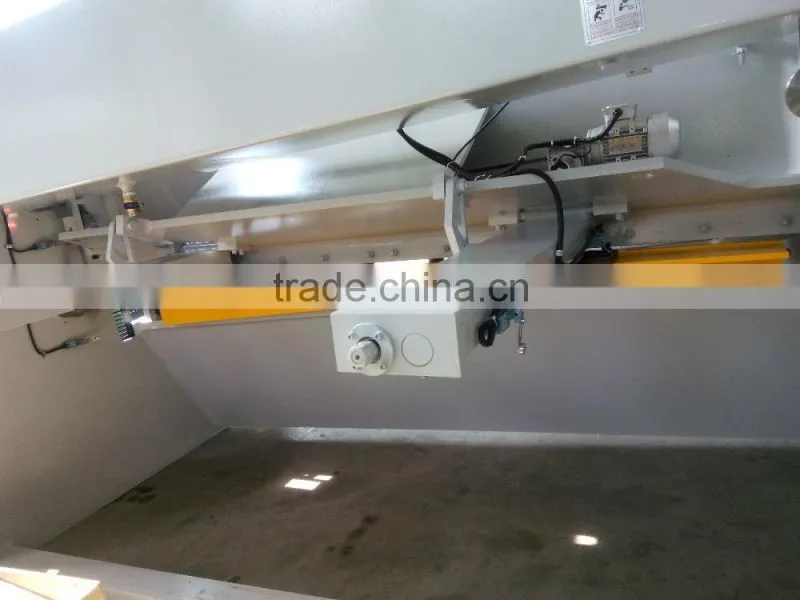

Detailed Photo of the Shear
1. Payment Terms
T/T, L/C at sight is acceptable by us.
2. Price Terms
It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.
3. Delivery Time
15 Days from our accountant confirm your deposit payment.
4. Shipment Condition
We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.
The balance should be paid up before loading machines.
5. Warranty
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
**Note: Machine standard covered by one plastic film cover. can be also packed by crate or wooden box or metal box according to customer's special needs.**
As the parernt company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China.
Established in 1989, Bohai has vast experience in building and supplying quality products. With over 3,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions.
Your partner today, tomorrow, and forever.
Welcome to send your eqquiry and visit our factory !
