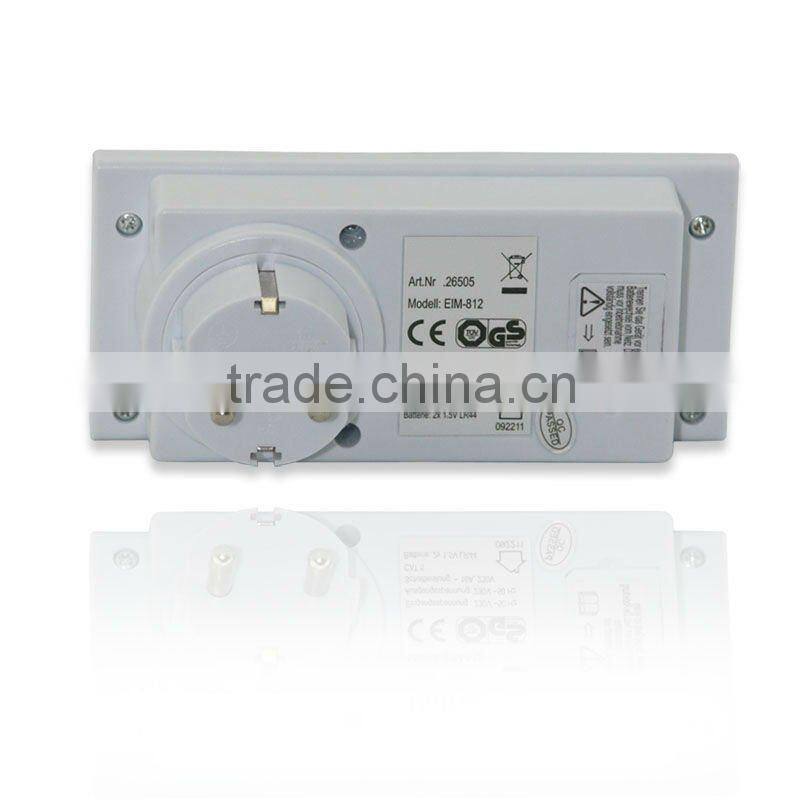

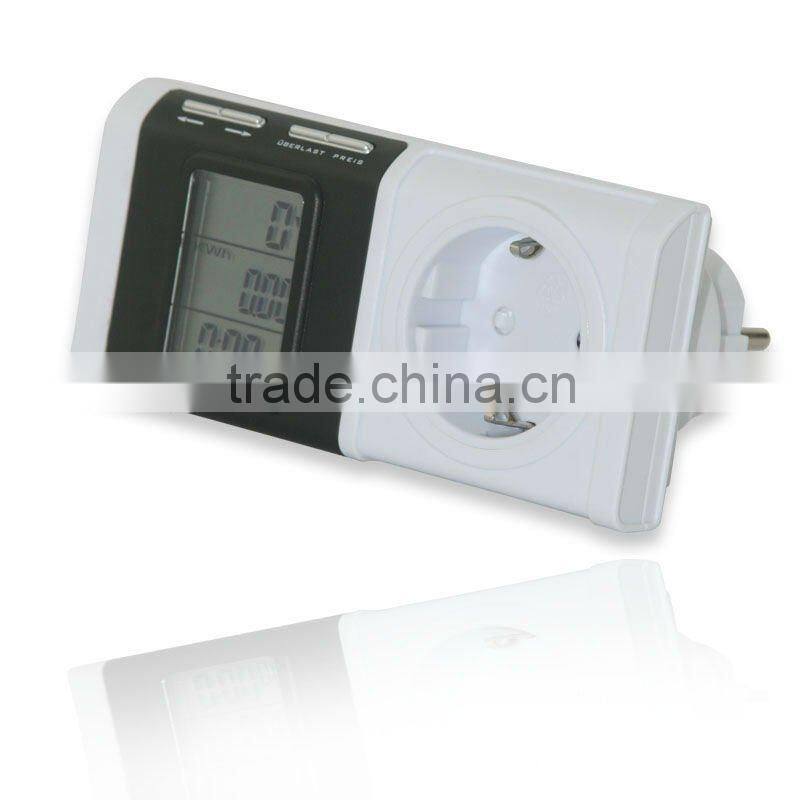

2012 Smart Horizontal Layout Watt Meter From Manufacturer

Specifications

smart horizontal layout watt meter

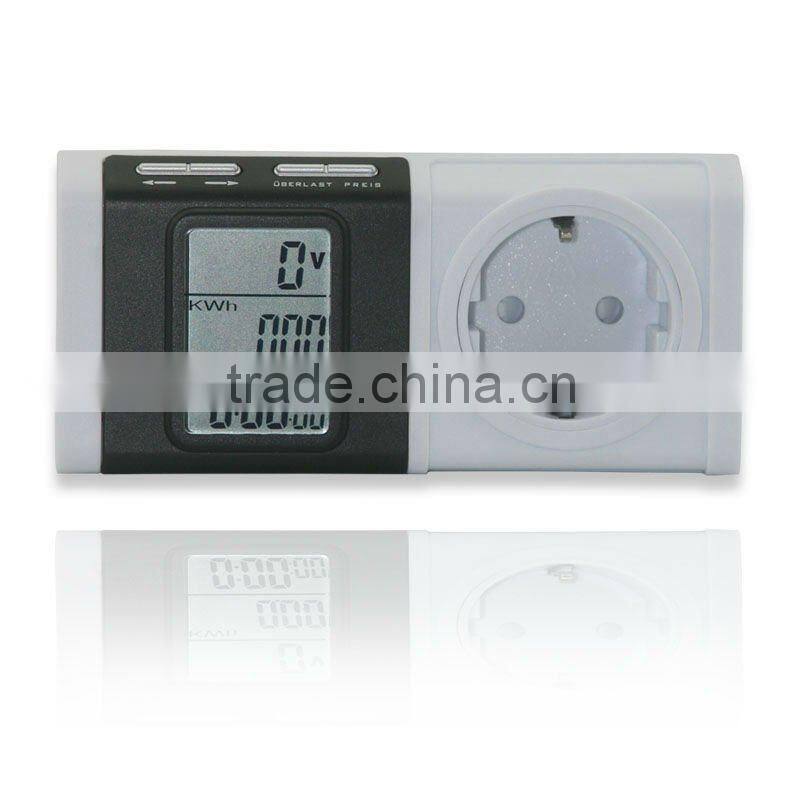

* 3-pane large LCD display
Top pane:
- Volatge (V); Current (A); Max Current (Max A); Max Wattage (Max W); Set overload Current/ Wattage (Overload A/ Overload W)
Middle Pane:
- Energy consumed (KWh); Tariff ($/KWh); Total Cost ($)
Bottom Pane
- Usage
* Total cost
- Calcuate and display total cost consumed
* Buzzer alert for overload warning
Specifications : - Power Supply: 230VAC, 50Hz
- Rating: 16A 3680W max
- Battery: 2 X 1.5V button cells (AG13/LR44)
 Version Number: 1  Status: Pending
 Energy meter:

Energy meter is used to caculate electricity expenses.

It can display:

Real time in 24 hours mode

Display of working time, wattage of load, power consumption,total cost of power, cost tarriff,

percentage of using.

Double cost tariff can be set, it can be switched automatically according to the time set.

Display wattage within 3 percent.

Overload led will alarm if the power load is over rating.

With reset function

Specification data:

Rating voltage:230Vac/50Hz

Maximum load:16A/3680W

Wording voltage:200-250Vac (only use for the mentioned rating voltage)

Energy display:0-999.9Kwh

Max record time:9999hours
