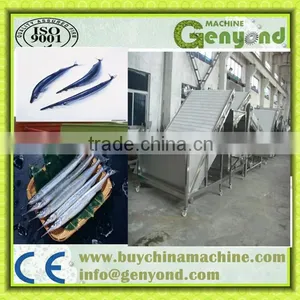

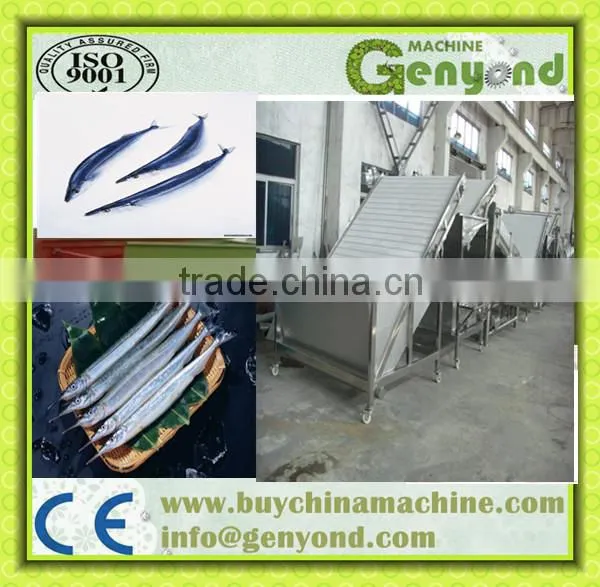

saury screening machine

wooden case and plastic bag

Specifications

1.all kind of fishes and shellfish screening machines are available
2.we have factory
3.easy operation

1.     Introduction

The machine which is accord with the industry standard of food processing equipment, is made of

SUS304 stainless steel in order to wash it conveniently after finishing the working. this device is made up of three parts: one-level conveyor, two-level conveyor and screener roller. screener roller is composed

of at least two rollers with the shape of big in top and small in buttom. there are space can be formed

between two rollers which selecting the shrimp. it finishes the all the producting process from

transporting to selecting automatically and increase the efficiency very much. the device adopt numerical

to control specification of shrimp, the precision can reach industry standard, it is the perfect processing

equipment for marine product.



Application: different specification screening for shrimp with or without head and shrimp meat.



2. Material and Technique:

A. The first two converysuppors is make of75×45×1.5mm and 50×25×1.5stainless steel square pipe, the

elevating is make of 304/2B stainless steel panle of 1.5mmthickness

B. Convery guide rail is 1.5mm thickness 304/2B stainless steel panle and fibreboard.

C. Speed-down Motor:2pcs,stainless steel water pump:1.1kw,1pcs,UCF205 axes 8pcs.

D. Body support Φ114×2.5mm 304/2Bstainless steel square pipe.

E. Assorting cylinder is Φ125×130mm plastic Steel,18pcs.With UCP207 and UCF207 axes 36pcs

F. Guard plate both sides and exit is 1.5mm thickness 304/2B stainless steel

G. Roller drive: slowdown motor 1pcs,1.5kw

H. At bottom,there are 5pcs conveyors,the convery is polyvinyl chloride steel,width:185mm.each

length:6000mm

I. Garding converyor support is 2.0mm thickness 304/2B stainless steel, UCF204 axes 20pcs.0.4kw

motor 2pcs.

J. Electrical system:control box 1pcs of stainless steel sheel,

the convery and assorting cylinder is controlled by microcomputer
